Measuring ultra-low flow rates presents a severe historical engineering challenge across industrial sectors. Traditional mechanical meters easily stall when handling viscous, dirty, or abrasive fluids. In these challenging applications, fluid viscosity causes internal friction that mechanical components simply cannot overcome. Meanwhile, deploying high-end, highly sensitive alternatives often breaks project budgets, forcing engineers to compromise on data accuracy or system reliability.
Enter the modern solid-state measurement solution. A Target Flowmeter detects flow velocities down to 60mm/s without relying on rotating components or fluid conductivity. It leverages highly sensitive, microscopic strain gauges to capture the exact physical forces exerted within the pipeline. This structural simplicity allows it to perform reliably where complex mechanical arrays fail.
Process engineers and procurement teams must evaluate this technology carefully before integration. By understanding its operational mechanics, you will learn how to eliminate persistent maintenance bottlenecks and accurately baseline low-velocity piping systems. We will explore mechanical advantages, strict installation realities, and direct comparisons with other meters. This comprehensive guide ensures you make a rugged, cost-effective choice for your heavy industrial facility.
Target flowmeters utilizing strain gauge technology can accurately capture velocities down to 60mm/s, outperforming traditional mechanical meters in laminar flow conditions.
The "no moving parts" design eliminates mechanical wear, making it structurally immune to jamming from particulates, slurries, or high-viscosity fluids.
Proper evaluation requires verifying fluid density stability and ensuring necessary straight-pipe runs during installation to maintain accuracy.
Turbine and positive displacement meters rely heavily on physical motion. They fundamentally require the fluid’s kinetic energy to push internal rotors, gears, or paddles. At extremely low velocities approaching 60mm/s, the fluid lacks the power needed to overcome internal bearing friction. The fluid slips past the internal mechanisms, and the mechanical components stall entirely.
This physical stalling leads to a massive signal drop-off. For process engineers trying to monitor low-flow dosing or baseline minimal leakages, a stalled rotor renders the data completely useless. Furthermore, if the low-velocity fluid carries any particulates, those particles settle in the stagnant zones around bearings, permanently seizing the mechanical assembly.
Alternative flow meters carry their own operational baggage at low speeds. Magnetic flowmeters, while highly accurate, fail completely with non-conductive fluids. If you need to measure refined hydrocarbons, heavy oils, or purified reverse-osmosis water, magnetic meters cannot generate a signal. You are left blind to the flow rate.
Differential pressure (DP) meters face a different hurdle. They rely on the square root of the flow rate to calculate volume. As flow velocity drops toward the bottom end of their specified turndown ratio, the differential pressure shrinks exponentially. The pressure transmitters quickly lose their signal resolution, struggling to distinguish actual micro-flows from background pipeline noise.

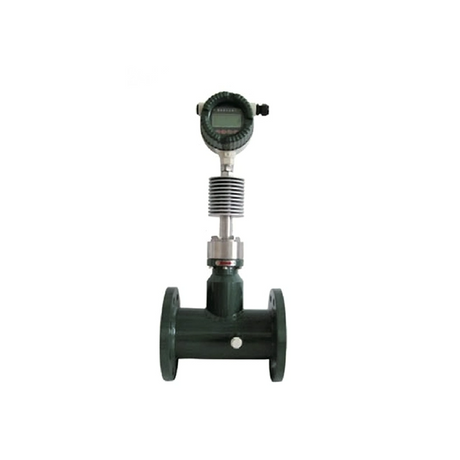

A Target Flowmeter utilizes a fundamentally different measurement approach. It suspends a solid, precision-machined target plate directly in the center of the flow stream. As the fluid moves, it exerts a physical, kinetic force against this plate. Microscopic strain gauges bonded securely to the supporting lever arm measure this exact bending force continuously.
This direct force measurement successfully bypasses standard Reynolds number limitations that plague other technologies. Because it detects force rather than rotational speed or magnetic induction, it captures 60mm/s micro-flows with exceptional reliability. The sensitivity of modern strain gauges ensures that even the slightest fluid movement registers clearly on the transmitter.
Mechanical degradation heavily plagues traditional flow measurement devices in harsh industries like mining, wastewater, and pulp and paper processing. A solid-state design eliminates bearings, rotating impellers, and delicate impulse lines. This absolute absence of moving parts prevents particle jamming entirely.
Heavy slurries, fibrous materials, and jagged particulates simply flow around the suspended target plate. You avoid the abrasive mechanical wear that usually destroys turbine meters in a matter of weeks. When measuring dirty fluids at low velocities, this structural immunity ensures continuous operation without the need for constant inline strainers or pre-filtration systems.
Industrial processes frequently involve extreme thermal environments and high-pressure piping networks. The solid-state probe design boasts massive structural integrity. Manufacturers often machine the entire target assembly from a single, robust piece of high-grade 316L stainless steel, Hastelloy, or other custom corrosion-resistant alloys.
This robust manufacturing allows for safe, long-term deployment in superheated steam networks, heavy oil extraction lines, and aggressive chemical dosing applications. Where fragile sensors or elastomer seals would melt or rupture, the solid metal construction of the target plate and lever arm holds strong under extreme mechanical stress.
Eliminating moving components directly impacts your long-term operational budget. Without rotating parts prone to friction, your preventive maintenance cycles drop dramatically. Facilities avoid the costly process downtime associated with frequent meter extraction and mechanical recalibration.
Furthermore, maintenance departments do not need to stock a massive inventory of expensive replacement bearings, rotors, or gears. The inherent simplicity of the design ensures long-term operational stability. Once properly installed and calibrated, these units often run for years without requiring any physical intervention, freeing up technical staff for more critical facility tasks.
Proper meter sizing determines your operational success. You must match the target plate size precisely to the pipe diameter to optimize the measurable flow range. A properly sized meter typically achieves a reliable turndown ratio of 10:1 or 15:1. This allows you to measure both peak flow and the low 60mm/s baselines accurately.
If the selected plate is too large for the pipe, it creates an extreme restriction, leading to pump cavitation. Conversely, if the plate is too small, the resulting kinetic force is too weak. In that scenario, the strain gauges cannot reliably detect ultra-low fluid velocities. Working closely with the manufacturer during sizing is critical.
Because these meters measure kinetic force, they inherently rely on predictable fluid density. The force exerted on the target plate changes if the fluid becomes heavier or lighter. You must transparently assess your process fluid before specifying this technology.
If your application involves batch processes where fluid composition or temperature fluctuates significantly, the baseline density will change. In these complex scenarios, you must integrate active density compensation. Typically, this involves piping temperature and pressure data into a centralized flow computer to adjust the target meter's output dynamically.
Inserting a physical target into the flow stream creates an intentional obstruction. This obstruction inherently causes a pressure drop, often referred to as head loss. You must calculate this drop relative to your system's total pump capacity to ensure efficient operations.
Identify Maximum Flow: Determine the absolute highest expected flow rate in the pipeline.
Determine Area Ratio: Calculate the cross-sectional area of the target plate relative to the internal pipe area (the obstruction ratio).
Calculate Head Loss: Use the manufacturer's flow coefficients to estimate the permanent pressure drop at maximum velocity.
Verify Pump Capacity: Cross-reference this resulting head loss against the pump's available pressure head to confirm the system can handle the restriction.
Ensuring the pump can easily handle this minor restriction prevents unforeseen system inefficiencies and protects downstream equipment from starvation.
Strain gauges require a fully developed, uniform flow profile to read kinetic forces accurately. Turbulent, swirling, or asymmetrical flow causes erratic forces on the target plate, leading to highly unstable strain gauge readings. To prevent this, you must strictly follow straight pipe run guidelines.
Upstream Clearances: Provide at least 10D to 15D (pipe diameters) of straight, unobstructed pipe upstream of the installation point.
Downstream Clearances: Ensure a minimum of 5D of straight pipe downstream of the meter.
Avoid Interference: Never place control valves, sharp elbows, or pipe reducers within these specific straight-run zones.
If your facility layout cannot accommodate these straight runs, you may need to install dedicated flow conditioners to straighten the fluid profile before it reaches the target plate.
Installation angle heavily influences measurement accuracy. You can install these meters in horizontal lines, vertical lines with upward flow, or vertical lines with downward flow. However, gravitational pull affects the suspended target assembly differently in each orientation.
If you mount the unit vertically, gravity pulls down on the lever arm, adding weight to the strain gauge reading. You must properly zero the transmitter post-installation to negate the structural weight of the target under gravity. Failing to perform this simple in-situ zeroing step will result in a permanent offset in your low-velocity readings.
Over decades of continuous industrial use, microscopic fatigue in the strain gauge materials can induce minor zero-drift. The meter may read a tiny flow value even when the pipe is dead-headed. Fortunately, recalibration does not require tearing the meter out of the line or sending it to a complex flow rig.
Facilities rely on simple in-line zeroing protocols. Once operations verify the pipeline is full but completely static (no flow), technicians can reset the transmitter's baseline reading electronically. This quick reset avoids complete process shutdowns and maintains steady production schedules with minimal labor.
Coriolis meters dominate the high-accuracy mass flow measurement sector. However, they carry massive capital costs and require significant physical space for installation. A Target Flowmeter delivers roughly 80% of the low-flow reliability of a Coriolis unit, but it achieves this at a fraction of the capital expenditure.
This massive cost gap widens significantly for line sizes exceeding 2 inches. If you require precise custody transfer, Coriolis remains superior. But if you need robust, repeatable process control in dirty fluids, the target design offers a far superior return on investment.
Thermal mass meters perform exceptionally well with clean, dry gases. However, they struggle heavily when viscous liquids or sticky compounds coat their sensor probes. The fluid coating acts as a thick layer of thermal insulation, destroying heat transfer accuracy and ruining the measurement.
Conversely, target meters handle viscous liquid coating remarkably well. Even if a layer of heavy oil builds up on the plate, the kinetic force of the moving fluid still transfers directly to the lever arm. The meter maintains its primary functionality long after a thermal mass meter would require extraction and cleaning.
Vortex shedding technology requires a specific minimum fluid velocity to generate measurable, repeating vortices behind its bluff body. Below a certain velocity threshold, shedding stops completely. The signal simply drops to zero, even though fluid continues to move.
Target flowmeters do not rely on shedding physics. They hold their signal integrity smoothly down to the 60mm/s threshold. This allows them to safely bridge the operational gap where Vortex technology outright fails, making them ideal for monitoring slow-moving start-up sequences.
Procurement decisions require rapid, factual comparisons. Use this matrix to finalize your technology selection based on critical application parameters.
Technology | Ideal Fluid Type | Low-Velocity Limit | Particulate Load Tolerance | Relative Budget Requirement |
|---|---|---|---|---|
Target Flowmeter | Viscous Liquids, Slurries, Gases | ~60mm/s | High (No moving parts to jam) | Moderate |
Coriolis | High-purity Liquids, Multiphase | Extremely Low | Moderate (Risk of tube clogging) | High |
Thermal Mass | Clean, Dry Gases | Low | Low (Coating destroys reading) | Moderate |
Vortex | High-speed Steam, Clean Liquids | Moderate (Fails under threshold) | Low (Bluff body edge wear) | Low to Moderate |
A target flowmeter capable of accurately measuring velocities down to 60mm/s offers immense value to modern heavy industrial processes. It provides a rugged, highly reliable bridge between cheap, easily stalled mechanical meters and prohibitively expensive high-end custody transfer technologies. By entirely eliminating moving parts, these solid-state devices successfully ignore heavy particulates, abrasive slurries, and extreme temperatures while delivering consistent low-velocity data.
Technical buyers and process engineers must now take actionable next steps. Gather your precise fluid specifications, including base density, maximum and minimum velocity ranges, operating temperatures, and pipe schedule dimensions. Contact a reputable manufacturer directly with this data. Initiate an application-specific sizing process immediately to ensure the selected target plate perfectly matches your required turndown ratio and allowable pressure drop limits.
A: Mild coating has minimal effect compared to thermal or DP meters. However, heavy, uneven buildup increases the target's physical surface area. This extra surface area catches more fluid force, which can artificially inflate flow readings over time. Periodic cleaning may be required for severe scaling fluids.
A: Yes. Depending on the specific strain gauge bridge design and the capabilities of the digital transmitter, many modern models can measure reverse flow. They provide equal low-velocity sensitivity in both forward and reverse directions without requiring physical reinstallation.
A: Pressure drop is highly dependent on how the target is sized relative to the pipe. It is generally comparable to or slightly lower than an equivalent orifice plate installation. It usually ranges from 0.1 to 0.5 bar under maximum flow conditions.
A: Field verification is typically done through a static weight hanging test. Technicians hang specific, certified weights directly on the target lever arm to verify strain gauge linearity. This safely avoids the need for an expensive and complex wet-flow calibration rig.
