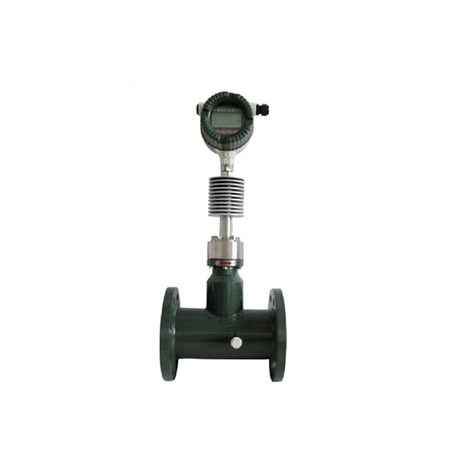

Continuous process industries face a severe dilemma when maintaining measurement accuracy. Shutting down an active pipeline to calibrate a flow meter introduces unacceptable downtime. It also causes immediate revenue loss. While a Target Flowmeter provides robust measurement for challenging fluids, operators must address its mechanical vulnerabilities. Its internal mechanisms make it susceptible to baseline shifts over time. Pressure variations, orientation changes, and physical impacts cause unavoidable zero-drift. Plant managers need a reliable way to verify these instruments without halting production.
This guide evaluates how you can implement target flowmeters equipped for field calibration. These methods completely eliminate process interruption. You will learn the exact methodologies for in-situ verification. We cover everything from bypass loop engineering to portable master meter deployments. We also explore equipment selection frameworks and vital troubleshooting tactics. This knowledge helps you balance verifiable accuracy with absolute operational continuity.
Process Continuity: Implementing in-situ calibration or portable verification standards allows target flowmeters to be zeroed and validated without full system shutdowns.
Measurement Reality: Target flowmeters operate on a non-linear force-to-velocity ratio (Bernoulli’s principle); accuracy degrades significantly at the low end of their turndown ratio.
Implementation Risk: Mechanical targets are vulnerable to startup shocks and slug flow; proper valve staging and low-flow cutoff configurations are mandatory.
Bypass Alternatives: Strategic piping (bypass lines) or utilizing hot-tappable/strain-gauge target meters reduces the reliance on off-site laboratory recalibration.
Plant operators must measure fluid dynamics continuously to maintain safety and efficiency. However, traditional maintenance frameworks often force a compromise between compliance and production output. Understanding the true operational problem helps us define success criteria for continuous measurement.
Traditional calibration protocols require total line isolation. You must stop the process. Workers drain the fluid and physically remove the meter from the pipe. Shipping the device to an off-site laboratory adds weeks of delay. This incurs direct maintenance costs. Furthermore, it triggers indirect production losses. Every minute of downtime compounds operational deficits. You lose revenue while waiting for calibration certificates.
A Target Flowmeter relies on the physical force exerted on a suspended target plate. Several real-world factors influence this delicate balance. Installation orientation plays a major role. Line pressure changes and mechanical stress also shift the baseline zero over time. Even microscopic deviations in the strain gauge generate false flow readings. Facilities cannot ignore this drift if they want precise batch control.
Modern industrial facilities operate under strict regulatory frameworks. You must maintain ISO/IEC 17025 or API standards to ensure traceability. Audits demand documented proof of accuracy. Yet, facilities cannot sacrifice process availability to meet these standards. Plant managers must satisfy auditors while keeping the fluid moving. Field calibration solves this exact tension.
How do we define a successful continuous measurement setup? A successful setup achieves NIST-traceable accuracy validation under real-world conditions. It tests the meter using the actual fluid viscosity. It accounts for real temperature and pressure variables. Most importantly, it accomplishes all this without stopping production. Achieving these criteria guarantees both compliance and profitability.
Engineers have developed several solution categories for in-situ verification. You can validate a Target Flowmeter using strategic piping or portable technology. These methodologies keep your core processes running.
Proper zeroing requires the meter to experience actual static line pressure without any fluid velocity. We achieve this utilizing localized bypass loops. These loops isolate the target flowmeter while maintaining process flow through an alternate pipe. Once isolated, the fluid inside the meter section becomes perfectly still. This allows the strain gauge or transmitter to be electronically re-zeroed. You complete this under actual static line pressure. This method guarantees a flawless zero baseline.
The master meter method represents a highly reliable verification strategy. Technicians deploy a highly accurate, portable master meter in series with the target flowmeter. They often use an ultrasonic clamp-on meter or a mobile volumetric prover cart. Both meters measure the exact same fluid simultaneously.
The system compares live readings across the operational flow range.
It calculates deviation percentages automatically.
Technicians update the target meter's calibration K-factor on the fly.
This provides real-world dynamic calibration without breaking the pipe seal.
Some applications cannot accommodate large bypass loops. In these cases, engineers use insertion-style target flowmeters equipped with isolation ball valves. This is known as hot-tapping. It allows the sensor assembly to be physically retracted. Workers can inspect, clean, and calibrate the target plate safely. Meanwhile, the main pipeline remains pressurized and active. This approach provides maximum physical access with zero process disruption.
Calibration Method | Primary Advantage | Ideal Application Scenario | Relative Piping Complexity |
|---|---|---|---|
In-Situ Zeroing | Maintains exact static line pressure | Baseline drift correction for harsh chemicals | High (Requires bypass loop) |
Master Meter Standard | Validates dynamic flow across entire range | Custody transfer or NIST-traceable audits | Low to Medium |
Hot-Tapping | Allows physical inspection of target plate | Large pipes or spaces lacking bypass room | Low |
Selecting the correct meter dictates the success of your field calibration strategy. Use this expert decision framework to match specific features to your operational outcomes. Not all meters support seamless in-situ verification equally.
You must understand the physics governing these devices. Target meters measure force proportional to the square of the flow rate. This physical reality creates challenges. For example, 10% of full-scale flow generates only 1% of full-scale force. This non-linear relationship makes low-flow measurement incredibly difficult. Evaluate if the vendor’s transmitter technology adequately compensates for this non-linearity. Modern transmitters typically limit reliable turndown to 10:1 or 15:1. Avoid sizing a Target Flowmeter for a system where it will constantly run near its lowest threshold.
Older target meters utilized external differential pressure (DP) transmitters. These required impulse lines. Impulse lines clog easily and introduce external leak points. Modern Target Variable Area (TVA) meters use internal strain gauges instead. Strain gauges mount directly onto the target lever arm. This eliminates impulse line clogging entirely. It also reduces external leak points. Strain gauge models provide superior stability and are much easier to re-zero electronically in the field.
Field calibration only works if the target plate remains structurally intact. Assess target plate materials against fluid abrasiveness. Abrasive fluids erode the target edges, changing its surface area. Ensure the meter is rated for the specific media. Clean water, superheated steam, or cryogenic liquids all require different metallurgy. Furthermore, avoid coating-prone fluids. Sticky fluids build up on the plate. This artificially increases the target's surface area, causing massive reading errors.
Smart electronics make field verification faster and safer. Look for transmitters that offer continuous self-diagnostics. Empty pipe detection prevents the meter from recording random noise when the line drains. Real-time strain gauge health monitoring is also critical. These diagnostics predict calibration needs before physical drift impacts your process. Proactive alerts give maintenance teams time to schedule a master-meter verification.
Theoretical strategies often encounter harsh field conditions. You must address installation hazards and specific troubleshooting protocols. Overlooking these technical risks will undermine your entire calibration framework.
Mechanical targets protrude directly into the flow stream. They are highly vulnerable to kinetic impact. Target plates can be permanently deformed by rapid startup transitions. Water hammer poses a massive threat. Two-phase slug flow (liquid and gas mixed) impacts the target violently. Gradual valve actuation is required during system restarts. If an operator opens a valve too quickly, the sudden fluid wall can bend the lever arm. This destroys the factory calibration permanently. Train your operators to stage valves carefully.
Many facilities struggle with unexplained totalizer accumulation. The meter registers flow when valves are completely closed. This happens due to pipeline vibration or trapped air pushing against the target.
The Risk: Ghost pulses inflate daily production totals, ruining inventory accuracy.
The Solution: Configure a strict "Low Flow Cutoff" (deadband) in the transmitter. This forces the output to zero when flow drops below a specified threshold.
PLC Integration: Ensure PLC logic ignores totalizer pulses when the control valve is registered as closed. Tie the high-speed counter enable bit to the valve's physical limit switch.
Modern target meters rely on extremely sensitive electronics. Strain gauge signals are millivolt-level. They are highly susceptible to Electromagnetic Interference (EMI). Proper earth grounding is non-negotiable. You must use shielded, twisted-pair cabling. Route these cables far away from Variable Frequency Drives (VFDs) and high-voltage power lines. Failure to shield the wiring will induce artificial voltage onto the strain gauge. This looks exactly like baseline zero-drift, leading to unnecessary field calibration attempts.
Your piping layout dictates your calibration options. If hot-tapping is not viable, you must plan ahead. A permanent bypass pipeline must be engineered into the P&ID (Piping and Instrumentation Diagram). This allows localized isolation for calibration without process disruption. Ensure the bypass valves offer Class VI shutoff to prevent leaks. Leaking isolation valves make in-situ zeroing impossible, as fluid continues to push against the target plate.
Moving from evaluation to procurement requires a structured approach. Use this step-by-step logic to ensure your selected Target Flowmeter supports continuous plant operations.
Step 1: Audit Fluid Dynamics: Document maximum and minimum flow rates accurately. Record static pressure, temperature extremes, and maximum allowable pressure drop. Verify that your low-end flow remains well within the target meter's accurate square-root curve. Do not guess these parameters.
Step 2: Determine Isolation Strategy: Decide between a retractable insertion meter or a flanged inline meter. Insertion meters offer lower upfront piping costs. Flanged meters with a dedicated bypass loop provide higher structural reliability. Choose based on your budget and available pipe footprint.
Step 3: Validate Calibration Support: Demand documented procedures from vendors for field calibration. Do not accept vague promises. Confirm absolute compatibility with portable ultrasonic reference meters or mobile master meter proving skids. Ensure the transmitter allows easy K-factor adjustments.
Step 4: Request a Site Walk-Through: Engage a certified field-calibration provider before making a purchase. Ask them to assess straight-run pipe availability. Let them identify EMI hazards. Ensure they have safe access points for their portable calibration equipment. Their input prevents expensive installation mistakes.
Deploying a target flowmeter with field calibration capabilities transforms a maintenance bottleneck into a manageable, continuous process. While the mechanical constraints of target measurement—specifically low-flow non-linearity and vulnerability to physical shocks—cannot be ignored, engineering controls solve these issues. Combining modern strain-gauge technology with smart piping (bypass loops) or hot-tap designs ensures long-term accuracy. By prioritizing in-situ verification, facilities can maintain rigorous compliance standards without sacrificing critical uptime. Take action by reviewing your current P&ID layouts to identify where bypass loops or hot-tap installations will immediately benefit your most critical measurement points.
A: Field calibration using a traceable master meter typically yields slightly higher uncertainty than a controlled lab environment (e.g., ±0.5% vs. ±0.1%). However, field calibration accurately accounts for real-world installation effects like piping orientation, fluid temperature, and actual viscosity. Lab stands cannot replicate these exact process conditions.
A: The force exerted on the target plate is proportional to the square of the fluid's velocity. At 10% of maximum flow, the fluid exerts only 1% of the maximum force. This makes it highly difficult for the strain gauge to distinguish real fluid flow from background pipeline vibration.
A: If using an inline (flanged) target flowmeter, yes. A bypass pipeline is required to route flow around the meter during zeroing and master-meter verification. Alternatively, you can specify an insertion-style target flowmeter with a hot-tap retraction mechanism, which eliminates the need for a full bypass loop.
A: Typically every 6 to 12 months, depending on fluid abrasiveness, pressure volatility, and regulatory requirements (e.g., ISO 50001 or ISO/IEC 17025). Severe applications like high-velocity steam may require more frequent zero-verifications due to rapid target plate wear.
