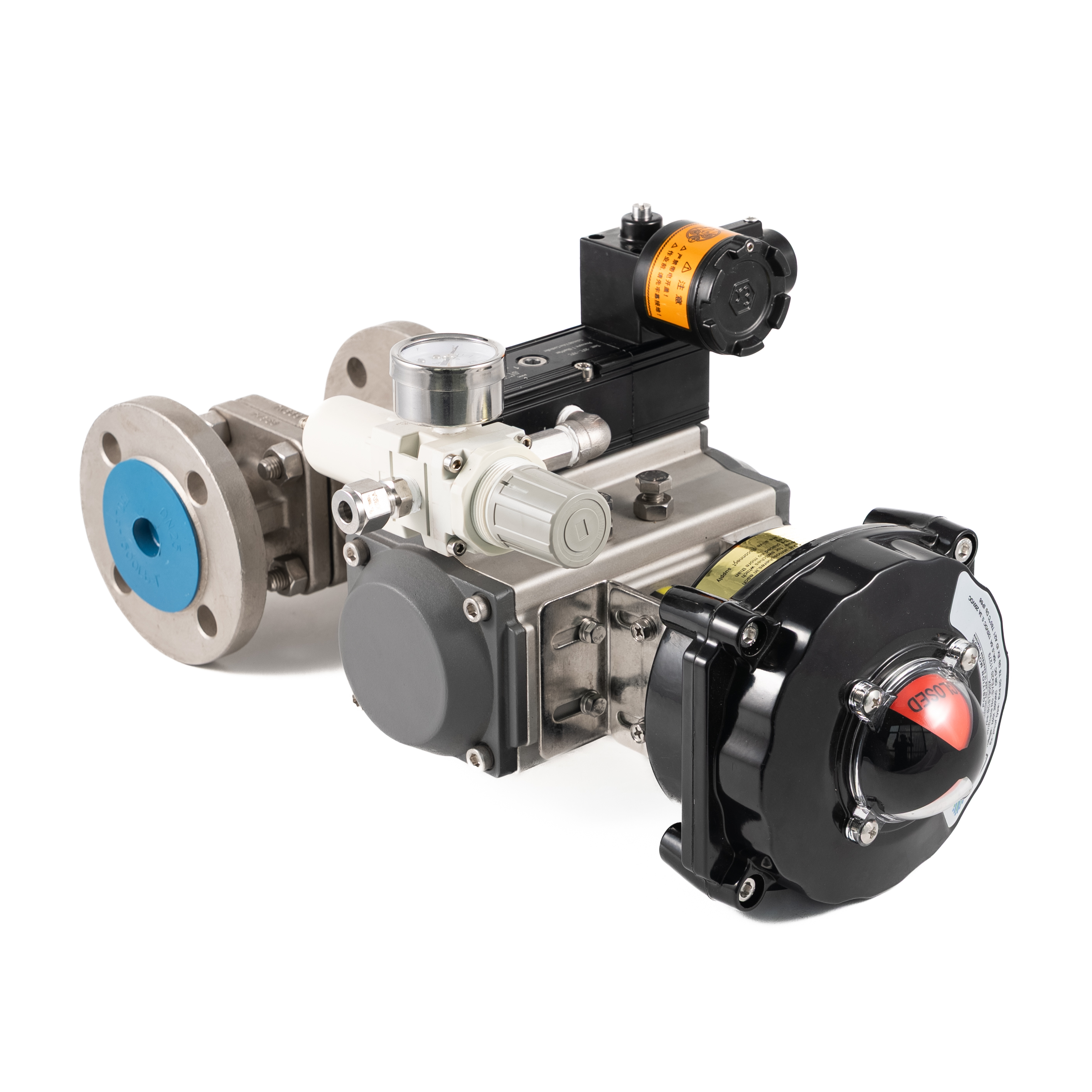

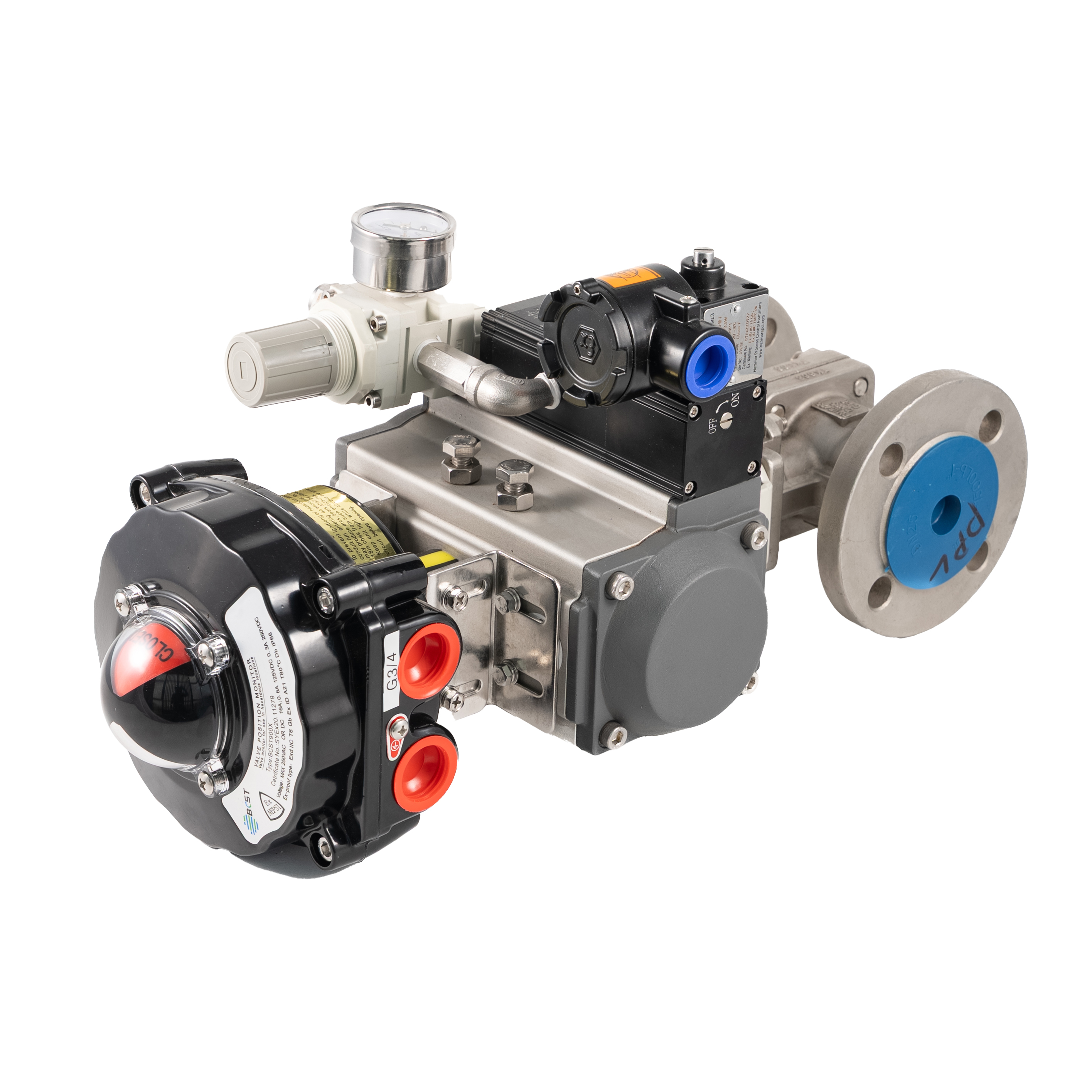

Pneumatica Flanged Diver O-type abscise Ball Valve
Product Overview
Hoc valvae pilae O-typus pneumatica-off valvae magnas cursus fluxus habet, magnitudinem compactam, sigillum certum et vitam longam servitutis. Minimum sumptus et faciles sustentationem.
Communiter usus est in petrochemico, gas, potentia, metallurgia, cibo et medicina ad arcta exclusione aquae, vaporis, olei et gas liquefacti. Ignis tuta vel specialis curatio obduratio potest nativus ut opus sit.
Product Features
Valvae corpus iacta vel fictum, compactum et formosum. Globus fixus prope sedem sedet dum rotatur, bonum lutum secandum.
Ver-onusta sedes auto- recompensat gestationem, signacula ipsa et cavitatem pressionis emittit, alta pressioni temp & altae aptat.
Globus fixa aequaliter currit et vim operantem secat.
Duplex scandalum & minuo plene aperit / valvulam claudit. Elige ante tribunal, vel sigillum duplex lateris posterioris; mollis vel metallum sigillum durum ad libitum.
Interior cavitas extra pressionem emittit automatice cum liquor dilatatur, nulla valvae securitatis extra opus est.
Uncto uncto gun apta connectit ut subitum lacus e luto vel igne damnum figere.
Ad libitum: ignis-salvus, anti-staticus et anti-fluentes truncus.
Longior caulis pro humilis temperatus usui praesto est.
Technical Parameters
Item |
Specification |
|---|---|
PN |
PN1.6~6.4MPa、ANSI150LB~600LB |
DN |
DN15~DN400 |
Connection modus |
Superficies convexa LABIUM PN16, superficies concava PN40,64 concava |
Corpus materiale |
LCB、WCB、CF8、CF8M、CF3、CF3M |
Influunt characteres |
DE-ON- |
Gradus foramen |
90° |
Valvae core motus |
Claudere valvae horologico |
Forma Sedes |
Sedes mollis, sedes metalli (sigillum operculum obdurationis) |
Idoneus temperatus |
Mollis sedes: -20~+250℃ sedes Metallica: -60~+450℃ |
ultrices campester |
Sedes mollis: ANSI VI Sedes metallicae: ANSI IV |
Design vexillum |
GB/T 12237、ASME B16.34 |
Face Ad Face |
GB/T12221、ASME B16.10 |
Test vexillum |
GB/T13927、API598 |
Operatio modus |
Manubrium, calces, pneumaticum |
Pneumatica accessiones |
Valvae solenoides, limites switch, aerem filtrationem reducentes valvae, valvae tutelae, mechanismus manualis, valvae emissio celeris, etc. |
Libitum configurationis
Ignis incolumem & anti-static available
Oleum & aquam liberum purgatio muneris
Manual nolens oboedire praesto
Liber constructionis aeris
More pila superficiei curatio
Consuetudo LABIUM & finem hospites
Morem efficiens ut per petitionem
Vacuum ministerium praesto
Speciali inspectione praesto
Sandproof / Minimum temp / resistentia salis libitum
Part Material
Pars nominis |
Materiae |
|---|---|
Corpus |
WCB, CF8, CF8M, CF3, CF3M |
Ball |
2Cr13, SS304, SS316, 316+STL, etc. |
signantes anulum |
PTFE, PPL, SS304, SS316, 316+STL, etc. |
Stem |
2Cr13, SS304, SS316, etc. |
Sedes vere |
Inconel, etc. |
Sedes subsidium anulum |
2Cr13, SS304, SS316 |
Gasket |
Vulnus spiralis Steel Graphite |
Mitte bushing |
PTFE, Graphite |
stipare |
V-PTFE, Graphite |
DN (mm) Nominal diameter |
Pellentesque nibh PN16 |
Certa pila PN40,64 |
D |
D1 |
D2 |
b |
Zd |
H |
H1 |
H2 |
A |
B |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
25 |
150 |
165 |
115 |
65 |
85 |
14 |
4-14 |
320 |
60 |
182 |
222 |
161 |
32 |
165 |
178 |
135 |
78 |
100 |
16 |
4-18 |
350 |
70 |
188 |
222 |
161 |
40 |
180 |
190 |
145 |
85 |
110 |
16 |
4-18 |
370 |
75 |
198 |
294 |
161 |
50 |
200 |
216 |
160 |
100 |
125 |
16 |
4-18 |
380 |
85 |
203 |
294 |
161 |
65 |
220 |
241 |
180 |
120 |
145 |
18 |
4-18 |
410 |
95 |
222 |
300 |
188 |
80 |
250 |
283 |
195 |
135 |
160 |
20 |
8-18 |
420 |
105 |
237 |
300 |
188 |
100 |
280 |
305 |
215 |
155 |
180 |
20 |
8-18 |
555 |
115 |
281 |
380 |
268 |
125 |
320 |
381 |
245 |
185 |
210 |
22 |
8-18 |
660 |
125 |
300 |
380 |
268 |
150 |
360 |
403 |
280 |
210 |
240 |
24 |
8-23 |
724 |
140 |
300 |
450 |
268 |
200 |
457 |
502 |
335 |
265 |
295 |
26 |
12-23 |
774 |
170 |
368 |
603 |
268 |
250 |
533 |
568 |
405 |
320 |
335 |
30 |
12-25 |
885 |
205 |
418 |
683 |
268 |
