Product Introduction

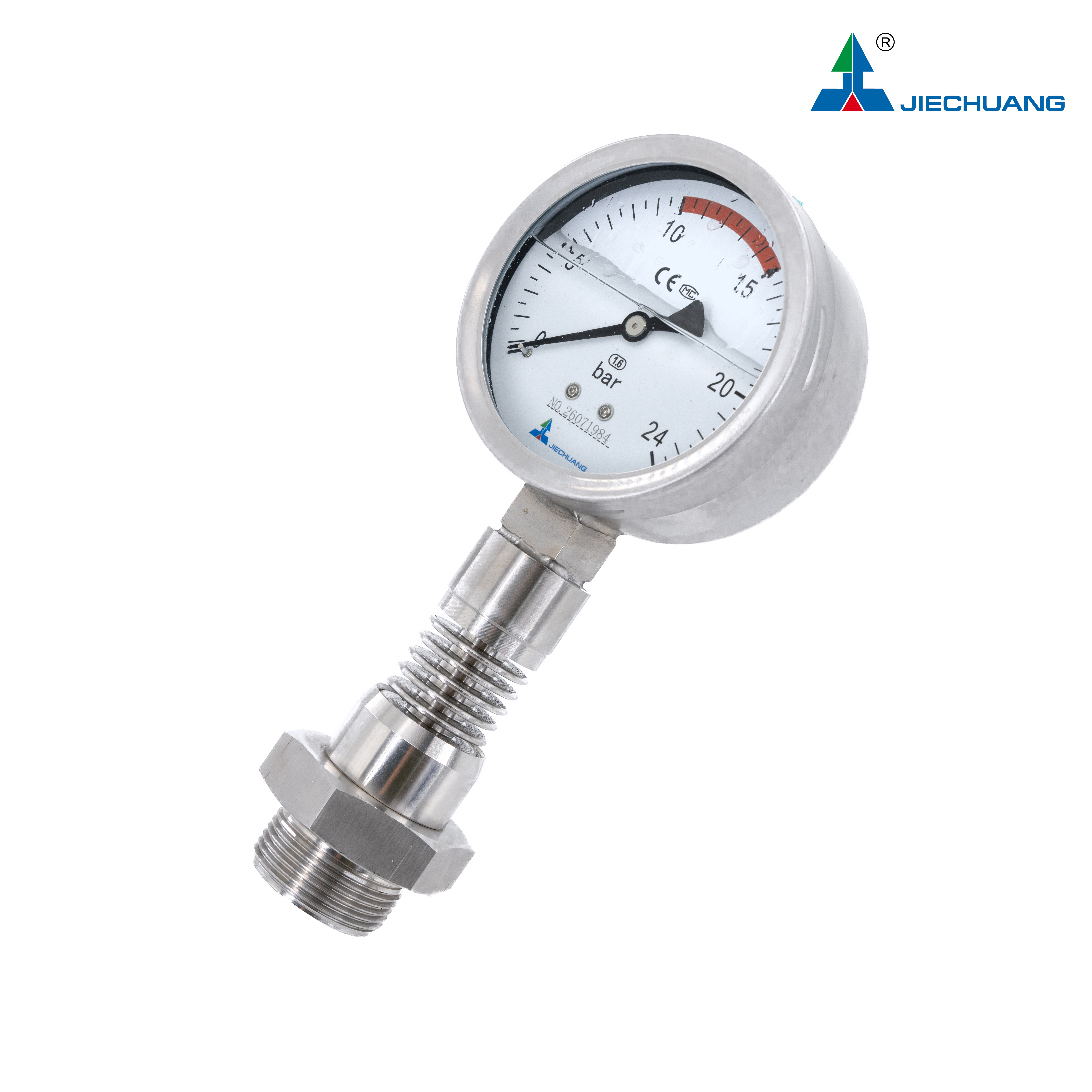

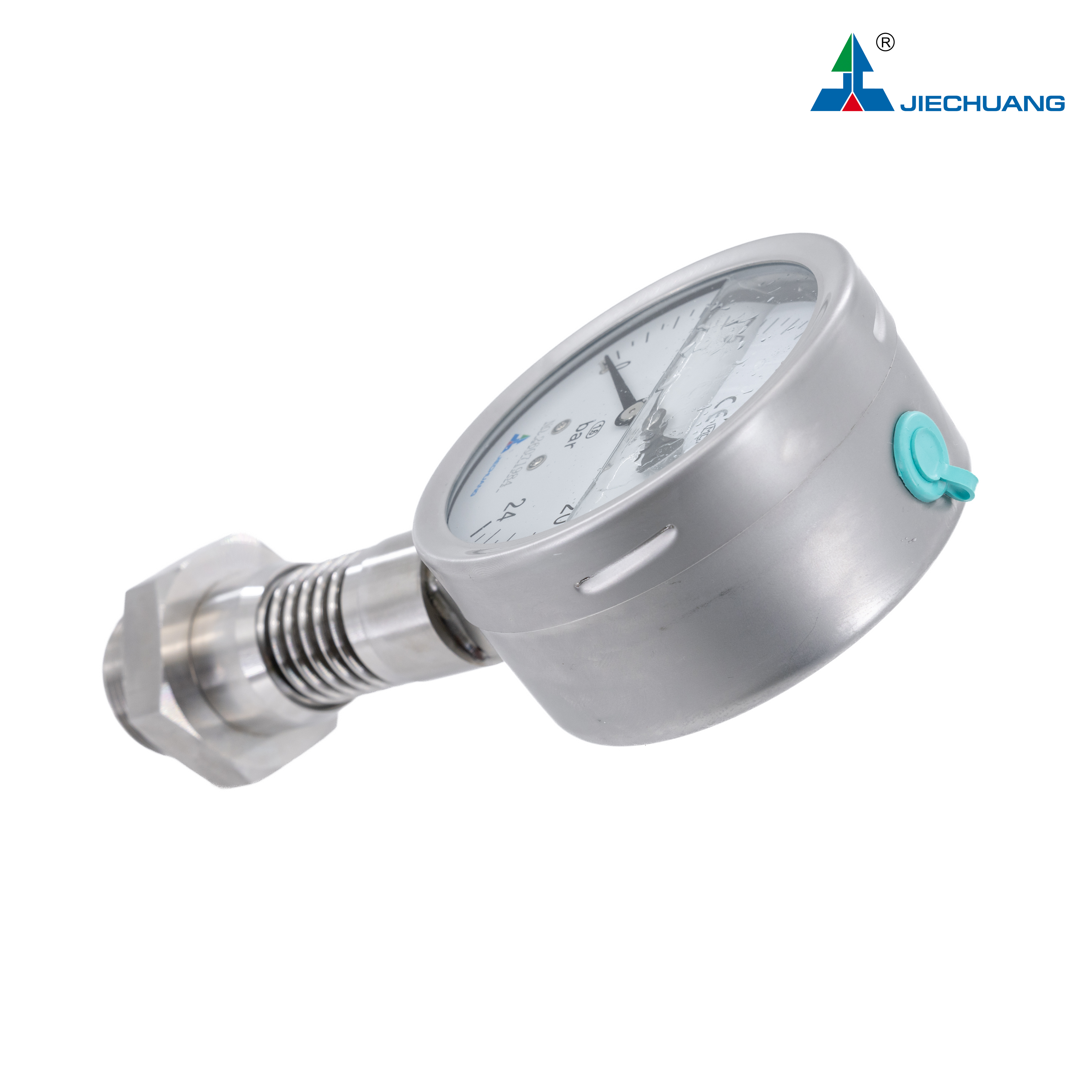

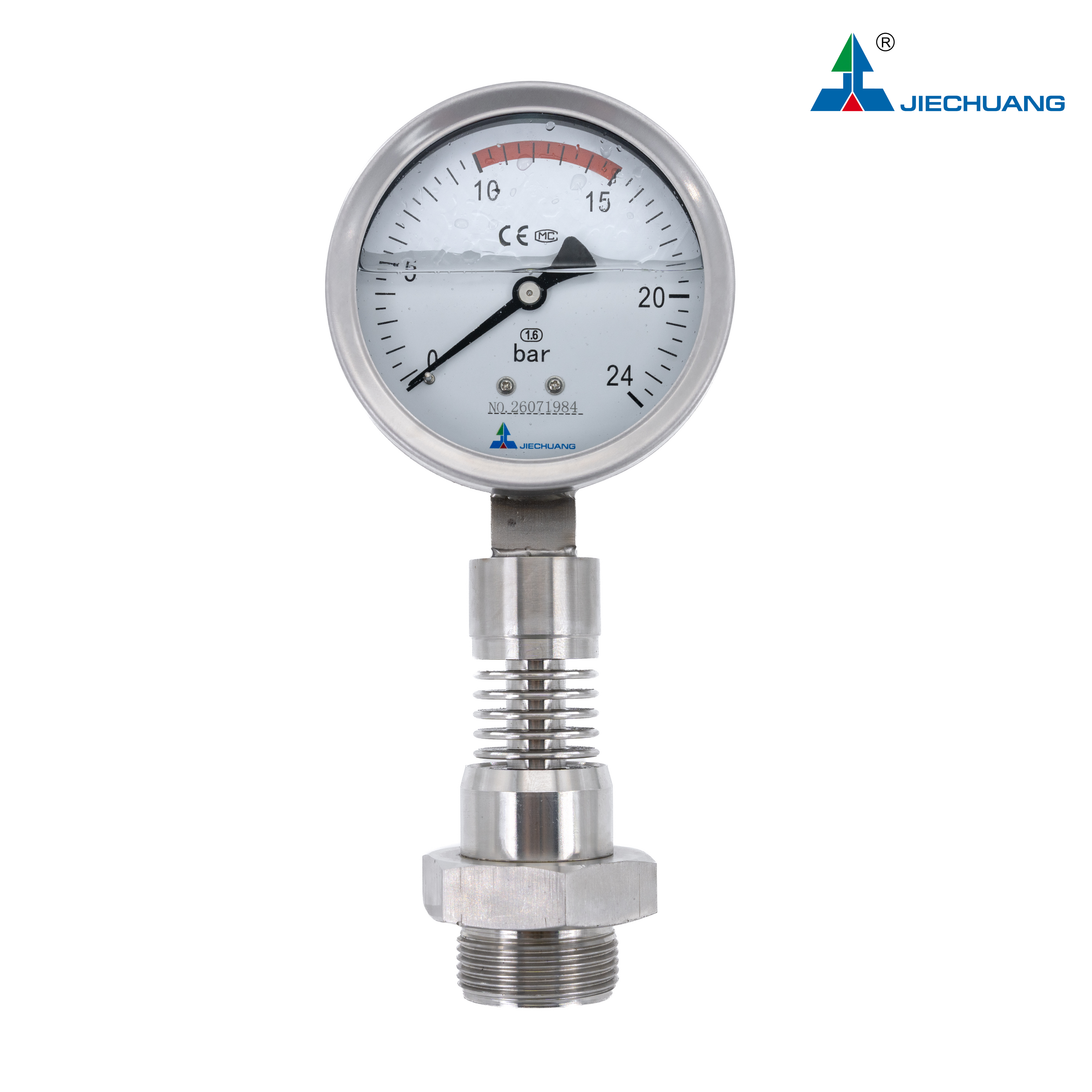

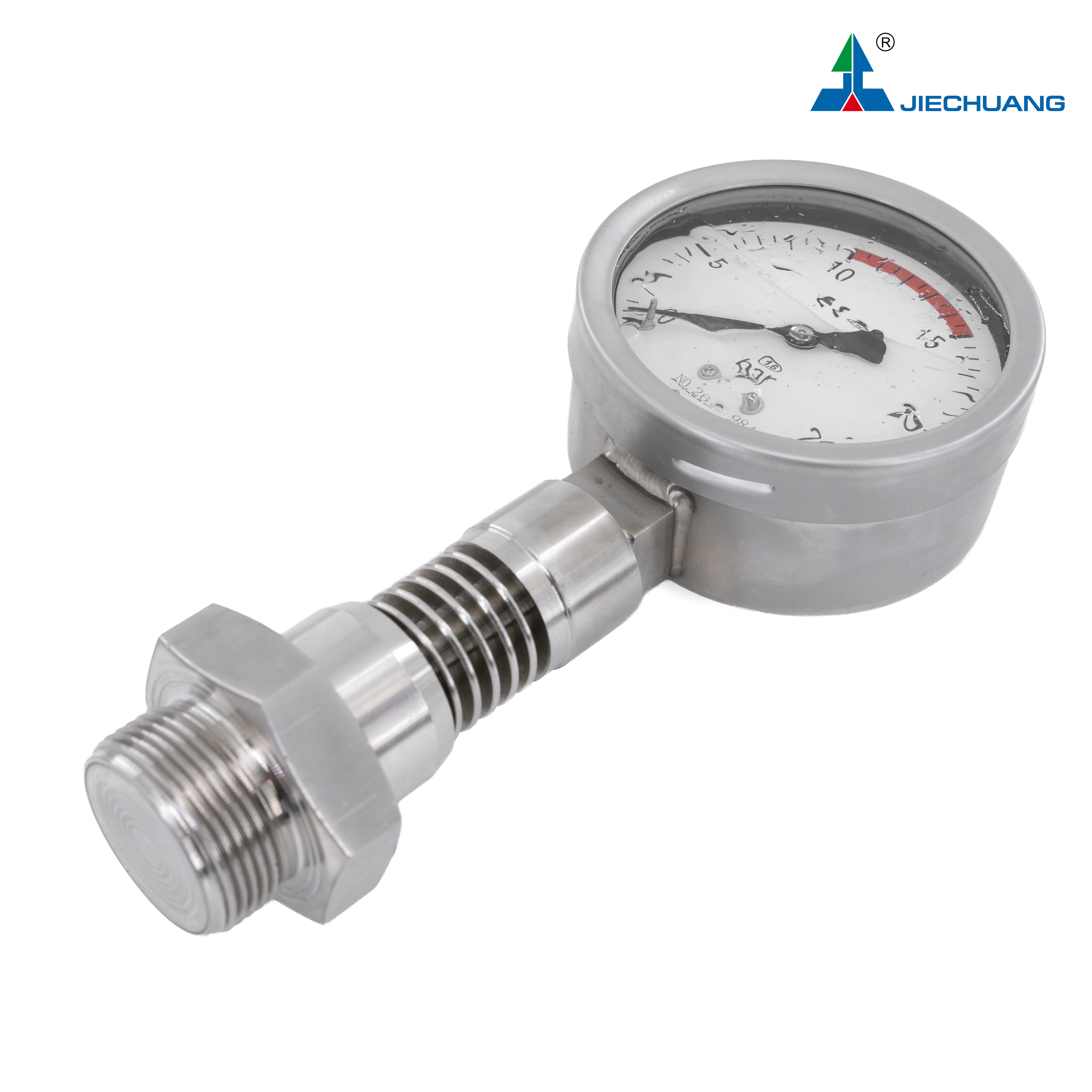

The High Temperature Glycerin Filled Shock Resistant Pressure Gauge is designed for pressure measurement in high-temperature and vibration-prone industrial systems.

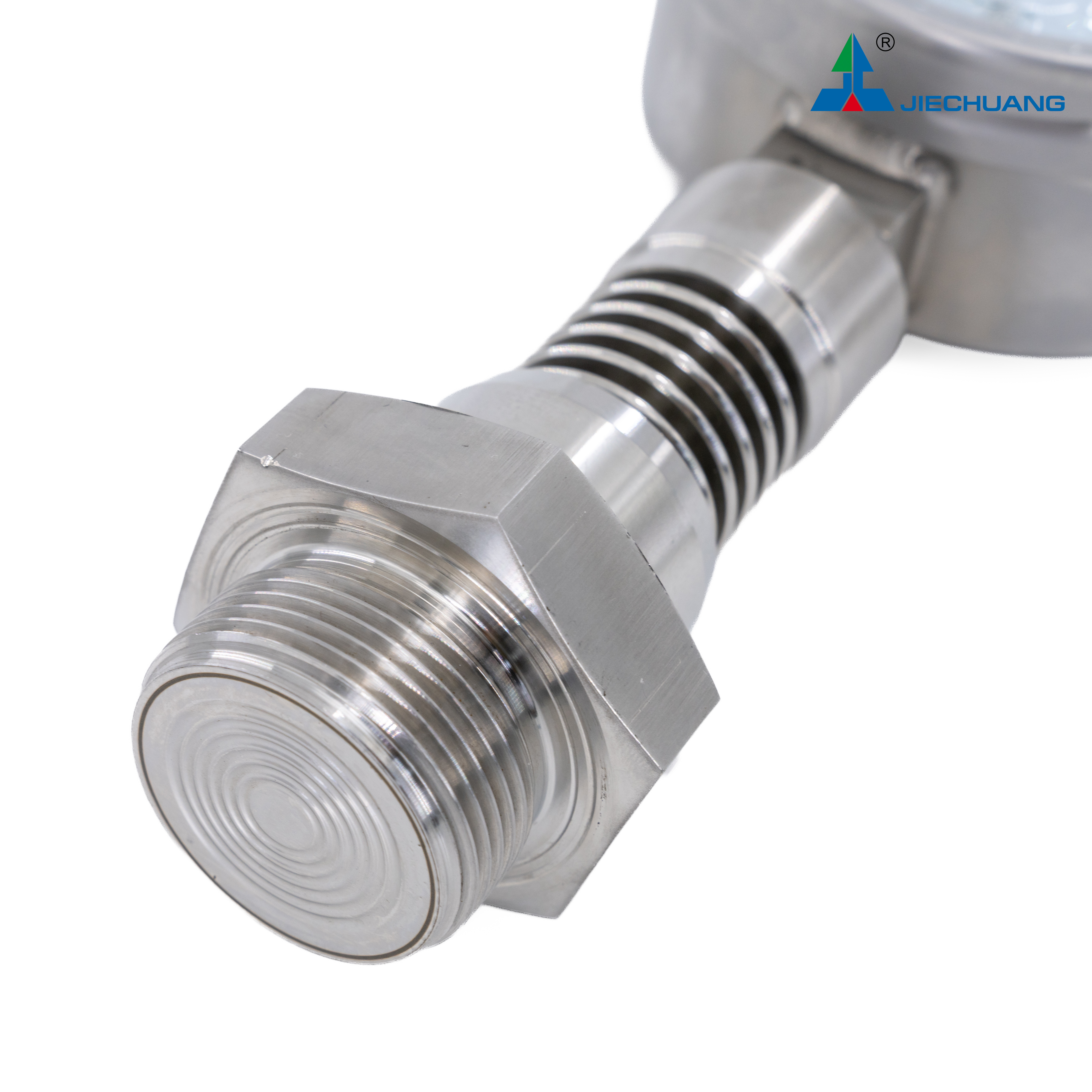

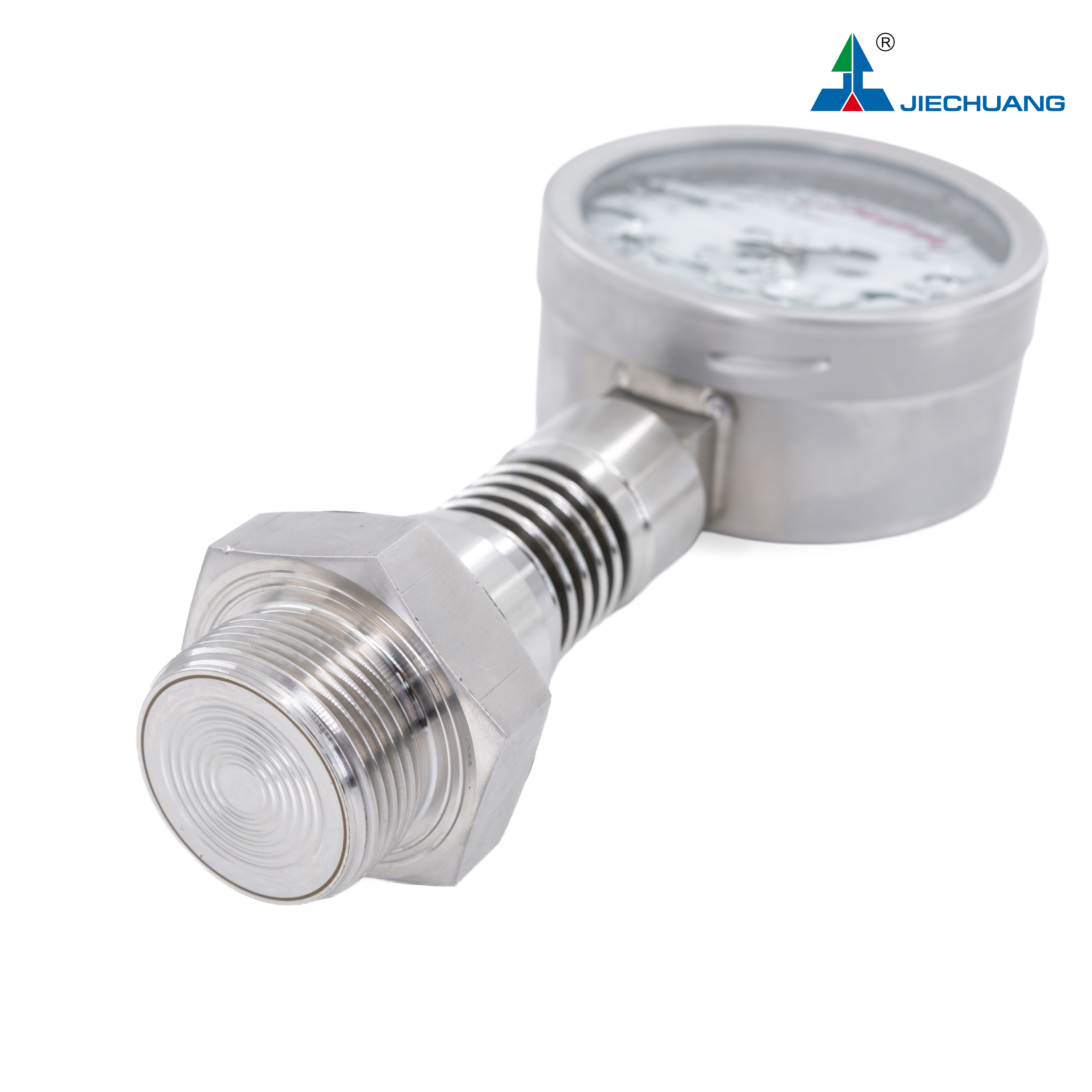

It features a stainless steel case, liquid-filled design, and special cooling fins. The cooling fins help reduce heat transfer from the process connection to the gauge, making it suitable for hot process applications.
Glycerin or silicone oil filling helps reduce pointer vibration and pressure pulsation for more stable readings.
The standard configuration has a 0–24 bar pressure range, Class 1.6 accuracy, 60 mm or 100 mm dial, and G1/2 male thread connection. M20×1.5 and other connection options are available. Specifications can be customized according to customer requirements.
Applications
Steam Systems
Pressure monitoring for steam pipelines and process equipment.
Hot Water Systems
Suitable for hot water circulation and heating systems.
Thermal Oil Systems
Used for pressure monitoring in thermal oil heating equipment.
Boilers and Heating Equipment
Designed for pressure measurement in hot and vibration-prone equipment.
Chemical Process Equipment
Suitable for compatible process gases and liquids.
Oil and Gas Equipment
Used for pressure monitoring in industrial process systems.
Pumps and Compressors
Liquid-filled construction helps provide more stable pointer readings in vibration-prone equipment.
Industrial Pipelines
Suitable for general industrial pressure monitoring where high temperature or vibration is present.
Key Features
1. High Temperature Service Design
Designed for pressure measurement in hot industrial systems.
2. Special Cooling Fin Structure
Cooling fins help reduce heat transfer from the process connection to the gauge.
3. Glycerin or Silicone Oil Filled
The filling liquid helps reduce pointer vibration and pressure pulsation.
4. Shock and Vibration Resistant
Liquid-filled construction helps maintain a stable pointer reading under vibration-prone conditions.
5. Stainless Steel Construction
The stainless steel case provides durable protection for industrial applications.
6. Multiple Pressure Units
bar, MPa, psi and other pressure units are available.
7. Flexible Connection Options
G1/2 male thread is standard, with M20×1.5 and other thread connections available.
8. Customizable Specifications
Pressure range, dial size, connection and other specifications can be customized according to customer requirements.
Technical Specifications
Parameter | Specification |
Product Model | YB Series |
Product Type | High Temperature Vibration Resistant Pressure Gauge |
Pressure Range | 0–24 bar |
Accuracy Class | 1.6 |
Dial Size | 60 mm / 100 mm |
Process Connection | G1/2 Male Thread |
Other Connections | M20×1.5 and Other Threads Optional |
Mounting Type | Bottom Connection, Direct Mount |
Case Material | Stainless Steel |
Pressure Element | Bourdon Tube |
Filling Liquid | Glycerin / Silicone Oil |
Heat Dissipation | Cooling Fins |
Display | Analog Pointer |
Process Temperature | High-Temperature Service; Customizable |
Pressure Unit | bar / MPa / psi and Other Units Available |
Application Medium | Gas, Liquid and Other Compatible Media |
Note: Specifications can be customized according to customer requirements.
Configuration Options
The pressure gauge can be customized according to application requirements:
Pressure range
Dial size
Pressure unit
Process connection
Filling liquid
Process temperature
Other specifications
Glycerin or silicone oil filling can be selected according to application requirements.
Selection Guide
For quotation, please provide:
Pressure
Pressure range
Pressure unit
Process Conditions
Medium
Process temperature
Vibration condition
Connection
Thread type
Mounting requirement
Gauge
FAQ
Q1: What is the main advantage of this high temperature pressure gauge?
It combines a liquid-filled design with cooling fins. The cooling fins help reduce heat transfer from the process connection, while the filling liquid helps reduce pointer vibration and pressure pulsation.
Q2: Is it a glycerin filled pressure gauge?
Yes. The standard filling can use glycerin or silicone oil.
Q3: What is the standard pressure range?
The standard pressure range is 0–24 bar, with Class 1.6 accuracy. Other ranges can be customized according to customer requirements.
Q4: What is the standard connection?
The standard process connection is G1/2 male thread. M20×1.5 and other thread connections are available.
Q5: What dial sizes are available?
The listed dial sizes are 60 mm and 100 mm.
Q6: Can it measure steam pressure?
Yes. The product is listed for applications including steam systems, hot water systems and boilers, subject to the applicable process temperature and pressure conditions.
Request a Quotation
Please provide:
Pressure range
Pressure unit
Medium
Process temperature
Dial size
Process connection
Filling liquid
Mounting requirement
Quantity
