Product Introduction

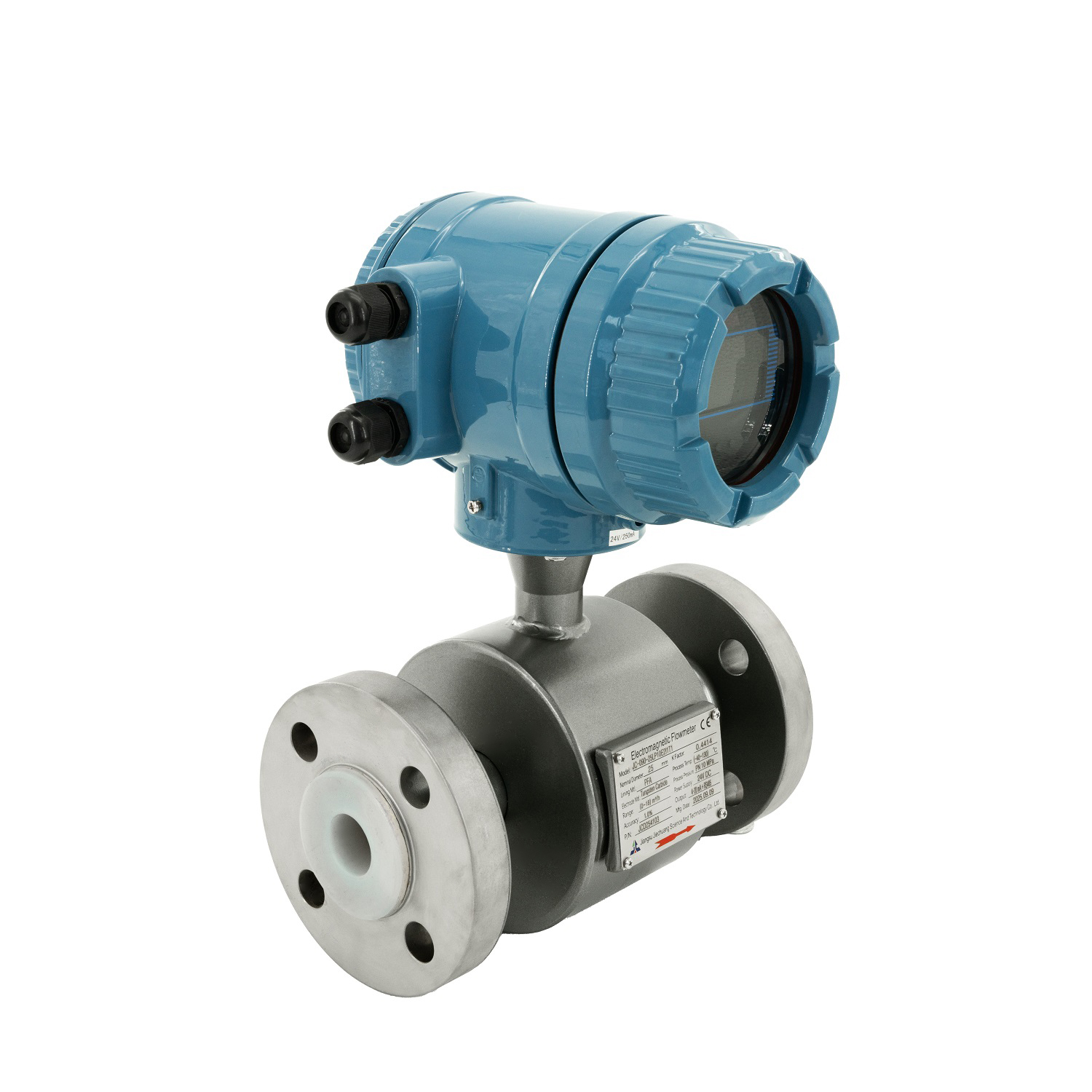

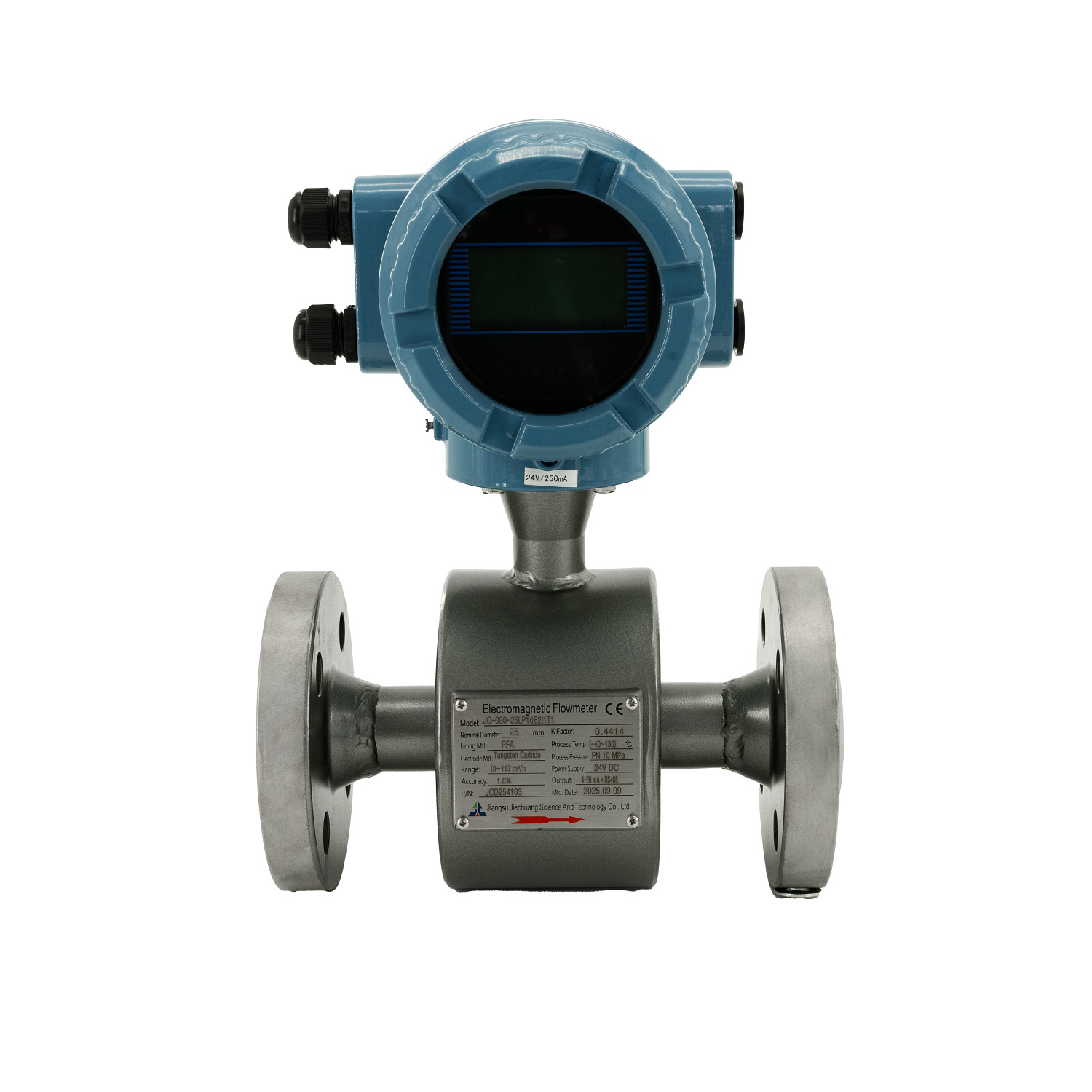

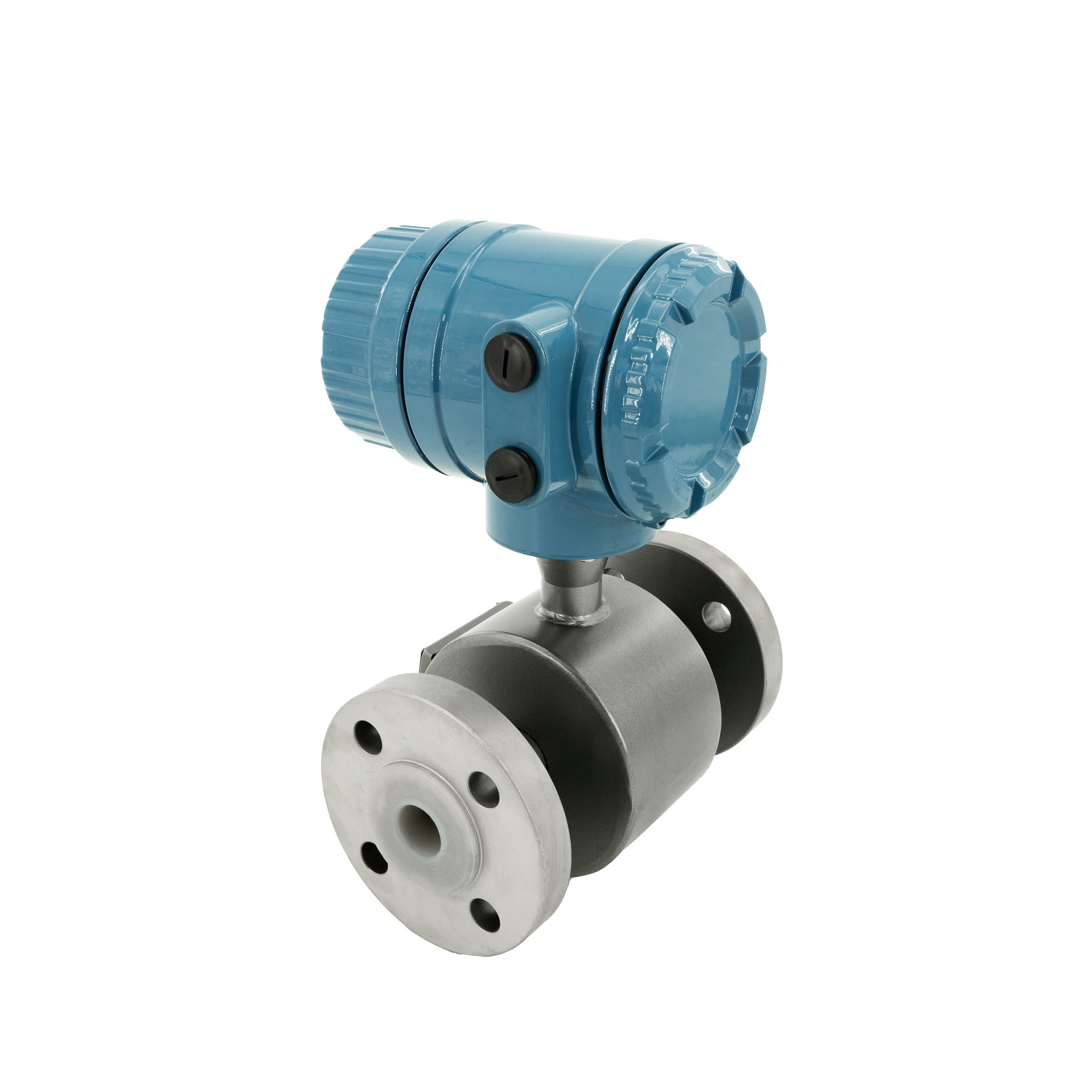

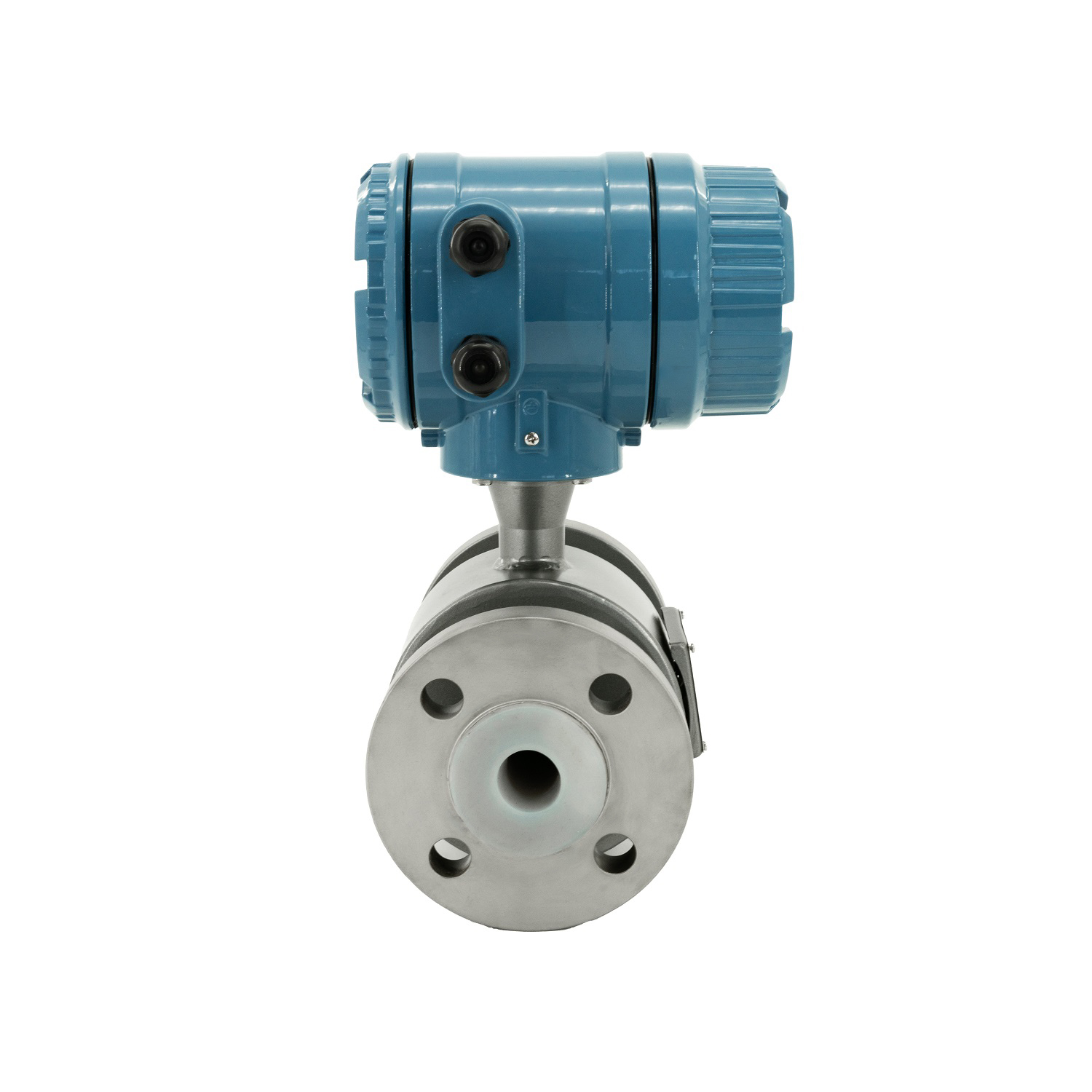

High Pressure Corrosion Resistant Electromagnetic Flow Meter
The intelligent electromagnetic flow meter is designed for accurate measurement of conductive liquid flow in industrial pipelines.
Based on Faraday's electromagnetic induction principle, this flow meter has no moving parts, providing stable measurement, low maintenance and long service life.
This model adopts PFA lining and tungsten carbide electrode, providing excellent corrosion resistance and wear resistance for demanding applications such as chemical liquids, acid and alkali solutions, wastewater and industrial process fluids.
With intelligent digital converter, the meter supports 4-20mA output and RS485 communication, allowing easy connection with PLC, DCS and automation control systems.
Applications
The electromagnetic flow meter is widely used for measuring conductive liquids in:
Chemical processing industry
Acid and alkali liquid measurement
Water treatment
Wastewater treatment
Mining industry
Paper and pulp industry
Petrochemical industry
Pharmaceutical industry
Industrial process control
Suitable media:
Corrosive liquids
Chemical solutions
Wastewater
Slurry
Conductive liquids
Salt water
Features

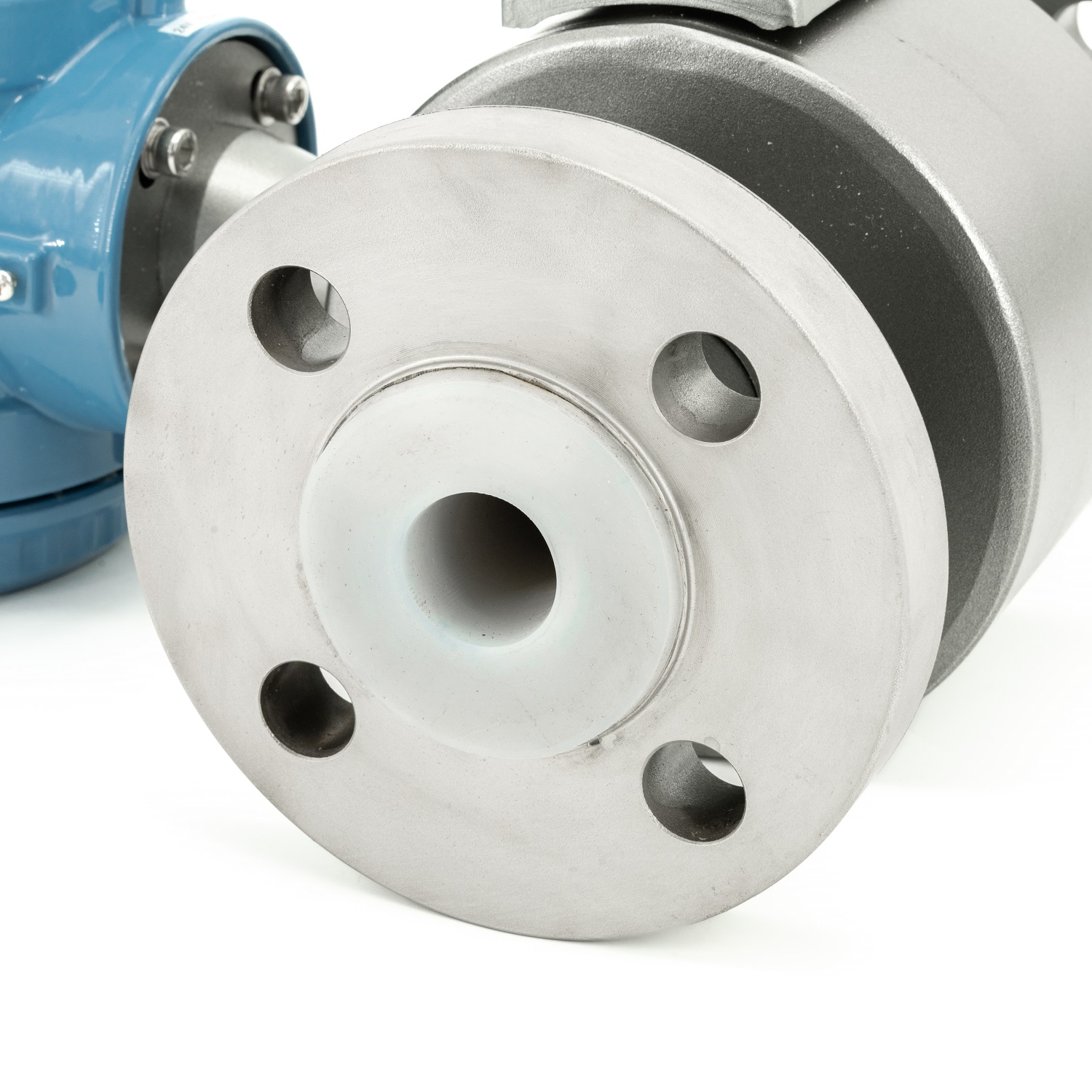

PFA liner with excellent chemical corrosion resistance
Tungsten carbide electrode for harsh working conditions
High pressure customized design up to 10MPa
No moving parts and no pressure loss
Stable measurement accuracy
Suitable for aggressive and abrasive media
Wide operating temperature range
Digital LCD display with easy operation
4-20mA and RS485 communication output
Integrated structure for convenient installation
Customized materials and connection standards available
Technical Specifications
Item | Specification |
Product Name | Electromagnetic Flow Meter |
Measuring Principle | Faraday Electromagnetic Induction |
Structure | Integrated Type |
Pipe Size | DN50 |
Connection Type | Flange Connection |
Flange Standard | Customized (ANSI / DIN / JIS / GB) |
Pressure Rating | High Pressure Customized, Max. 10MPa |
Measuring Range | 0~18 m³/h |
Accuracy | ±1.0% |
Liner Material | PFA |
Electrode Material | Tungsten Carbide |
Body Material | Carbon Steel Standard, Stainless Steel Optional |
Medium Temperature | -40ºC~130ºC |
Power Supply | 24VDC / 220VAC Optional |
Output Signal | 4-20mA |
Communication | RS485 |
Display | Digital LCD Display |
Protection Grade | IP65,IP67,IP68 Optional |
Installation Type | Inline Flanged Installation |
Medium Conductivity | ≥5 μS/cm |
Note: Specifications can be customized according to customer requirements.
