Product Introduction
The electromagnetic flow meter is a digital flow measurement instrument based on Faraday's Law of Electromagnetic Induction. It is designed to measure the flow rate of conductive liquids without moving parts, providing stable and accurate measurement.

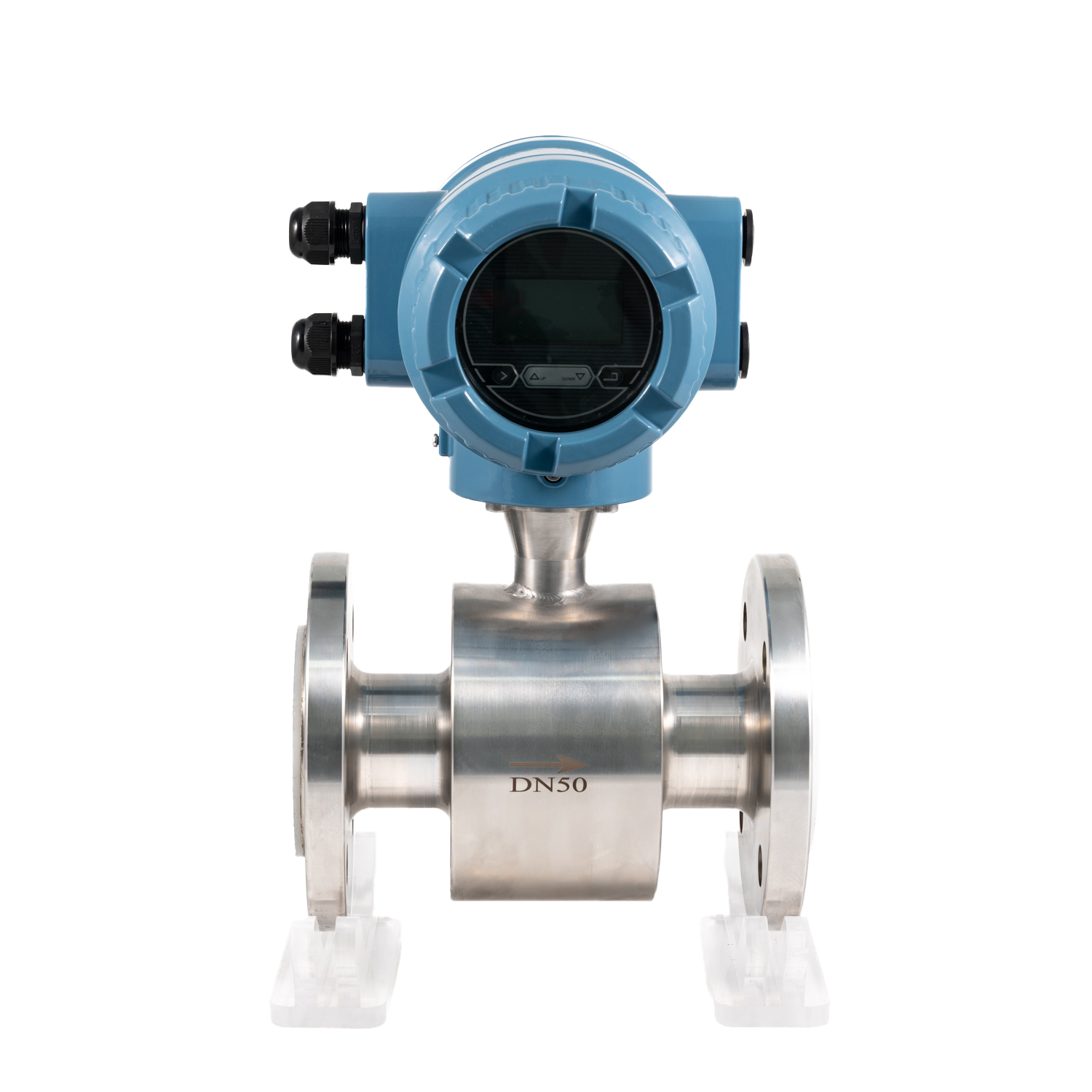

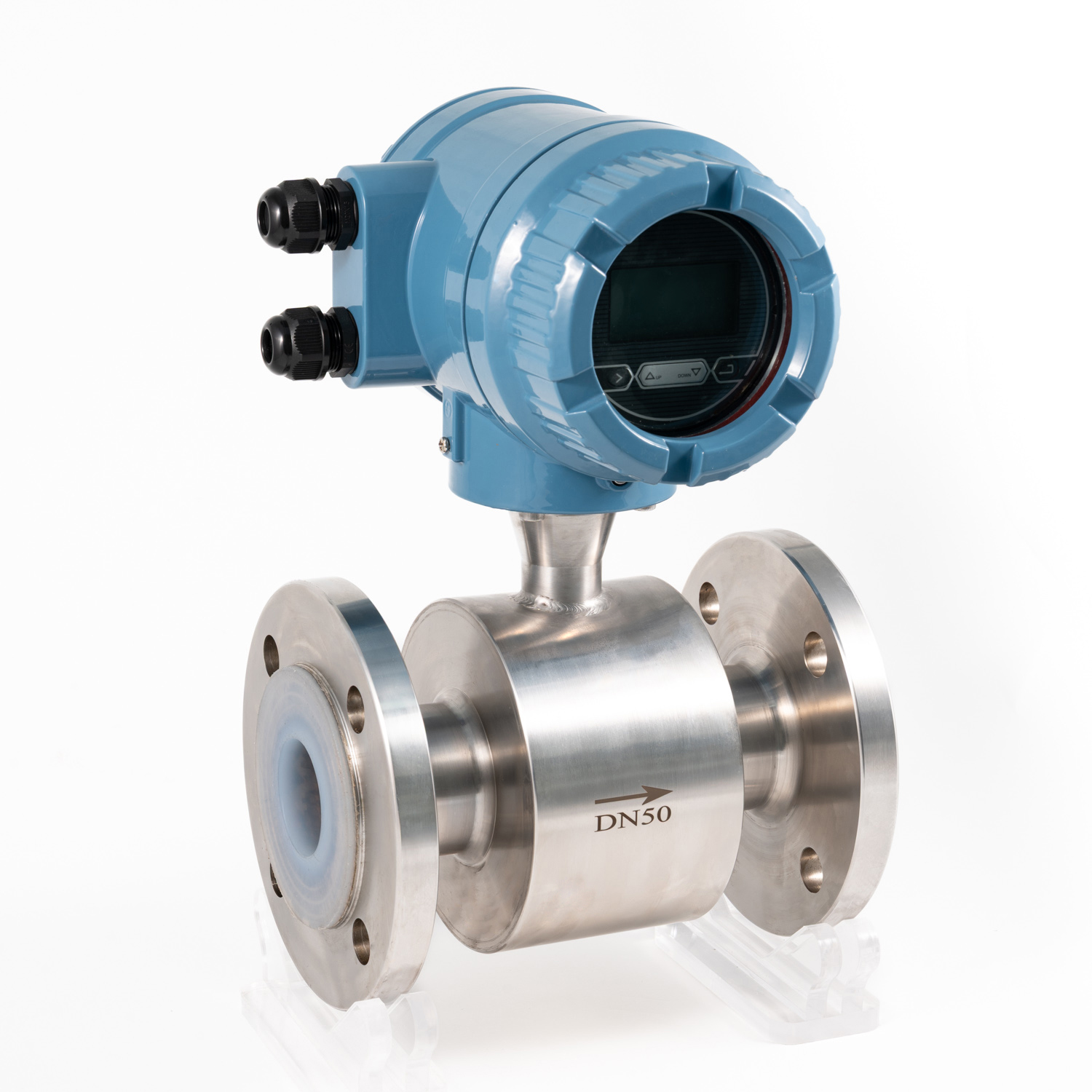

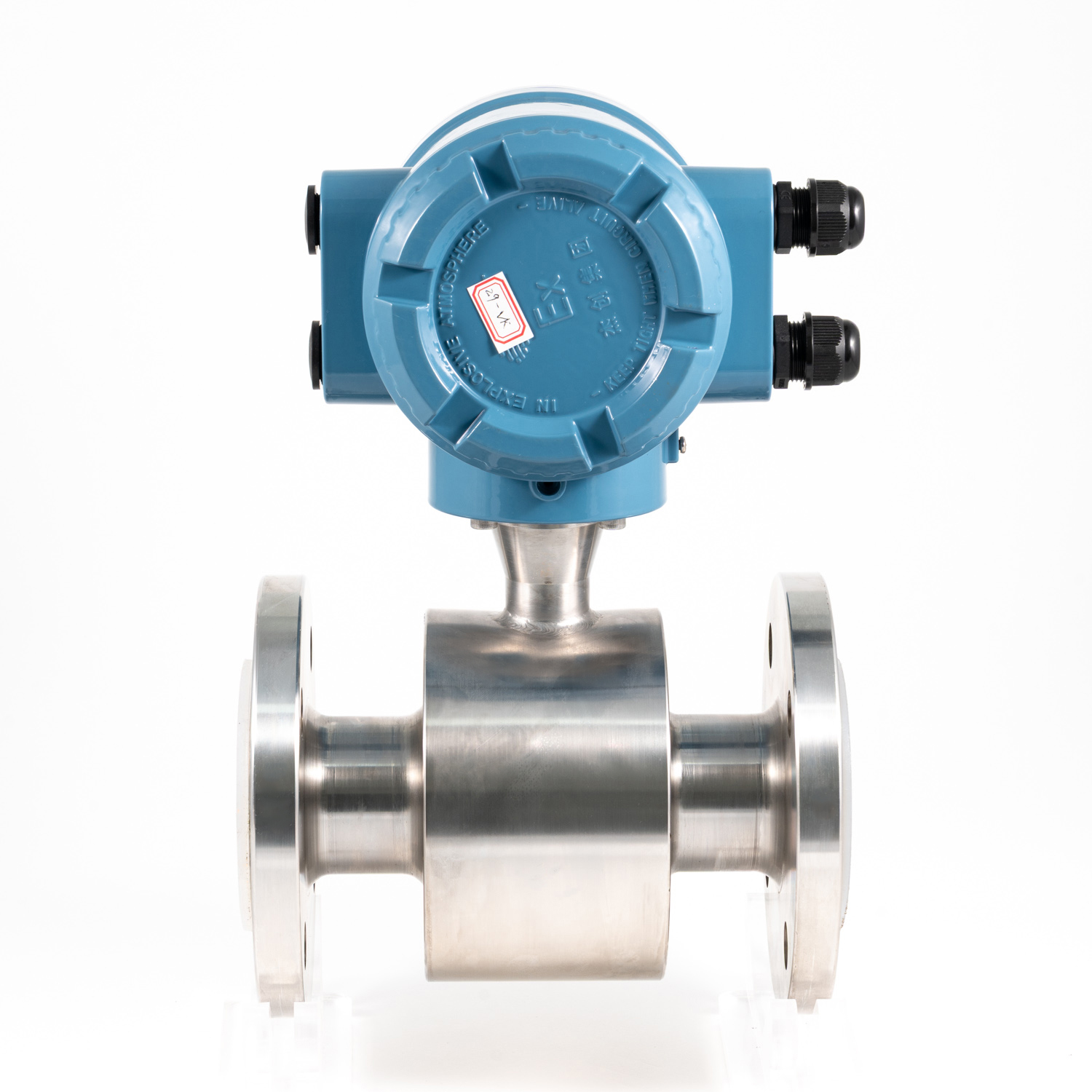

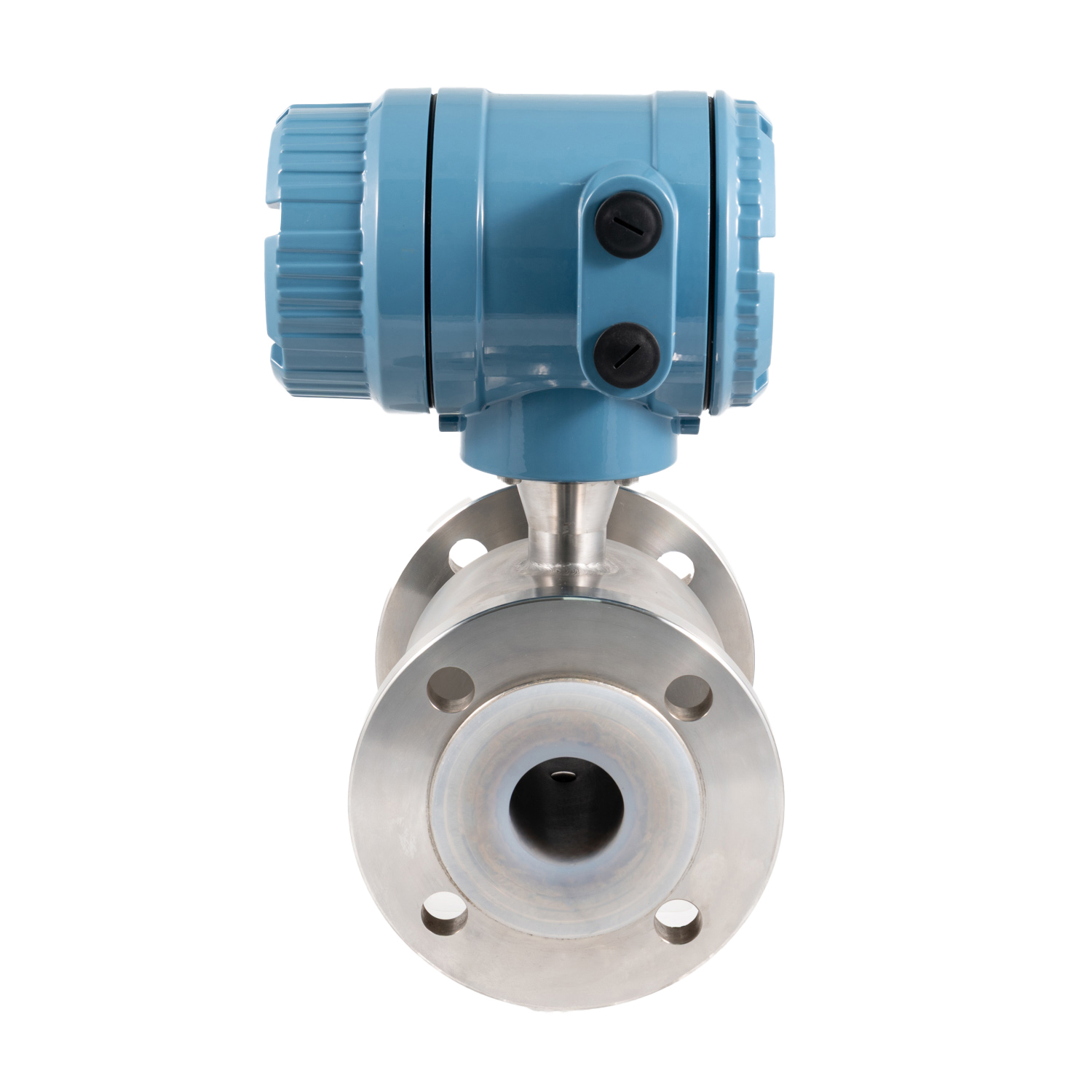

This model features a stainless steel body, F4 (PTFE) lining, DN50 flange connection and explosion-proof housing, making it suitable for industrial applications requiring reliable measurement in hazardous environments.
It supports multiple output options such as 4-20mA, pulse, RS485 and HART communication for easy connection with PLC, DCS and industrial control systems.
Applications
Suitable for measuring conductive liquids in:
Water treatment and wastewater plants
Chemical processing industry
Petrochemical industry
Food and beverage industry
Pharmaceutical industry
Paper and pulp industry
Mining and metallurgy industry
Oil & gas hazardous areas
Industrial process control
Features
Explosion-proof design for hazardous industrial environments
Stainless steel housing with strong corrosion resistance

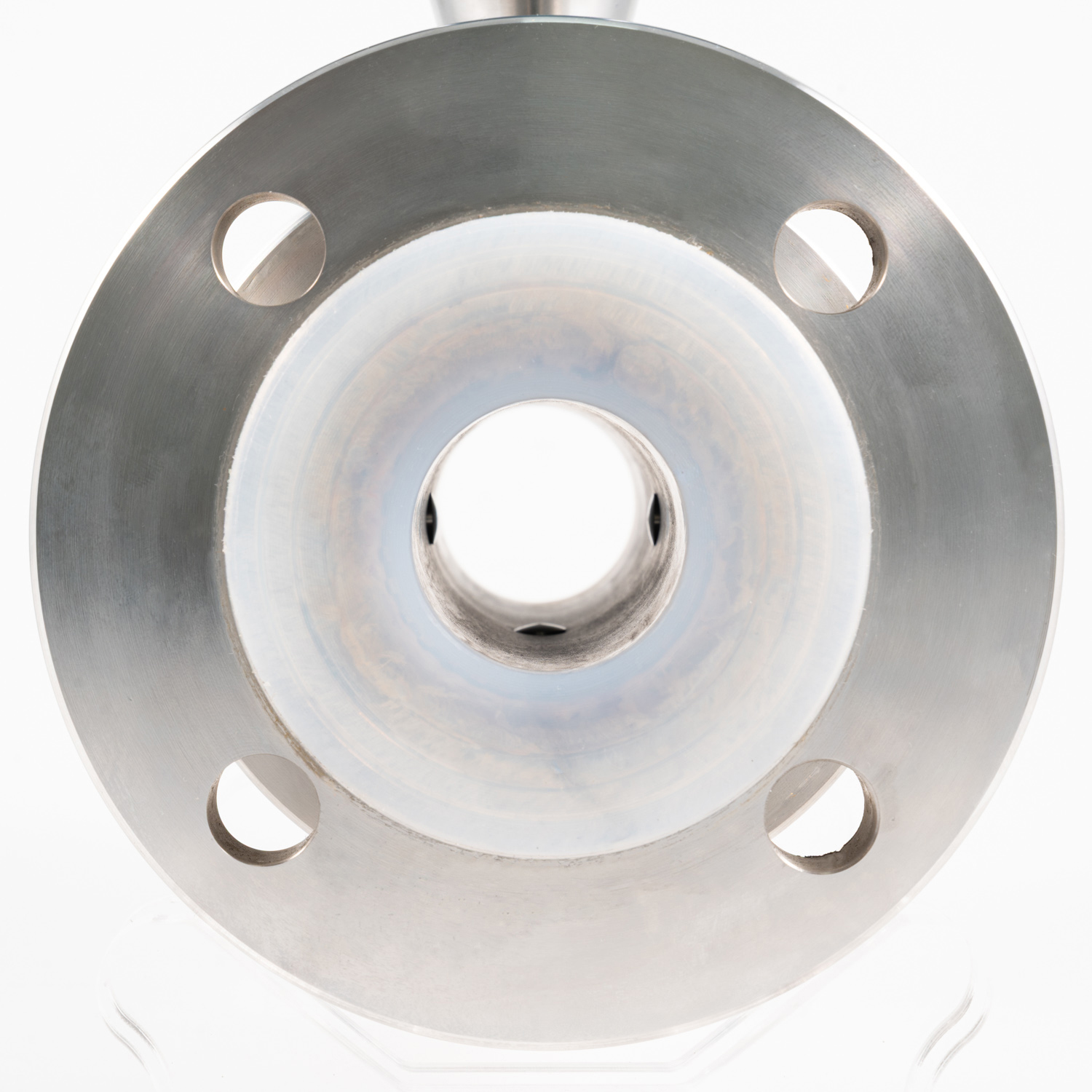

F4 (PTFE) lining suitable for corrosive liquid measurement
No moving parts, low maintenance and long service life
High accuracy and stable performance
Suitable for water, chemicals, acids, alkalis and conductive liquids

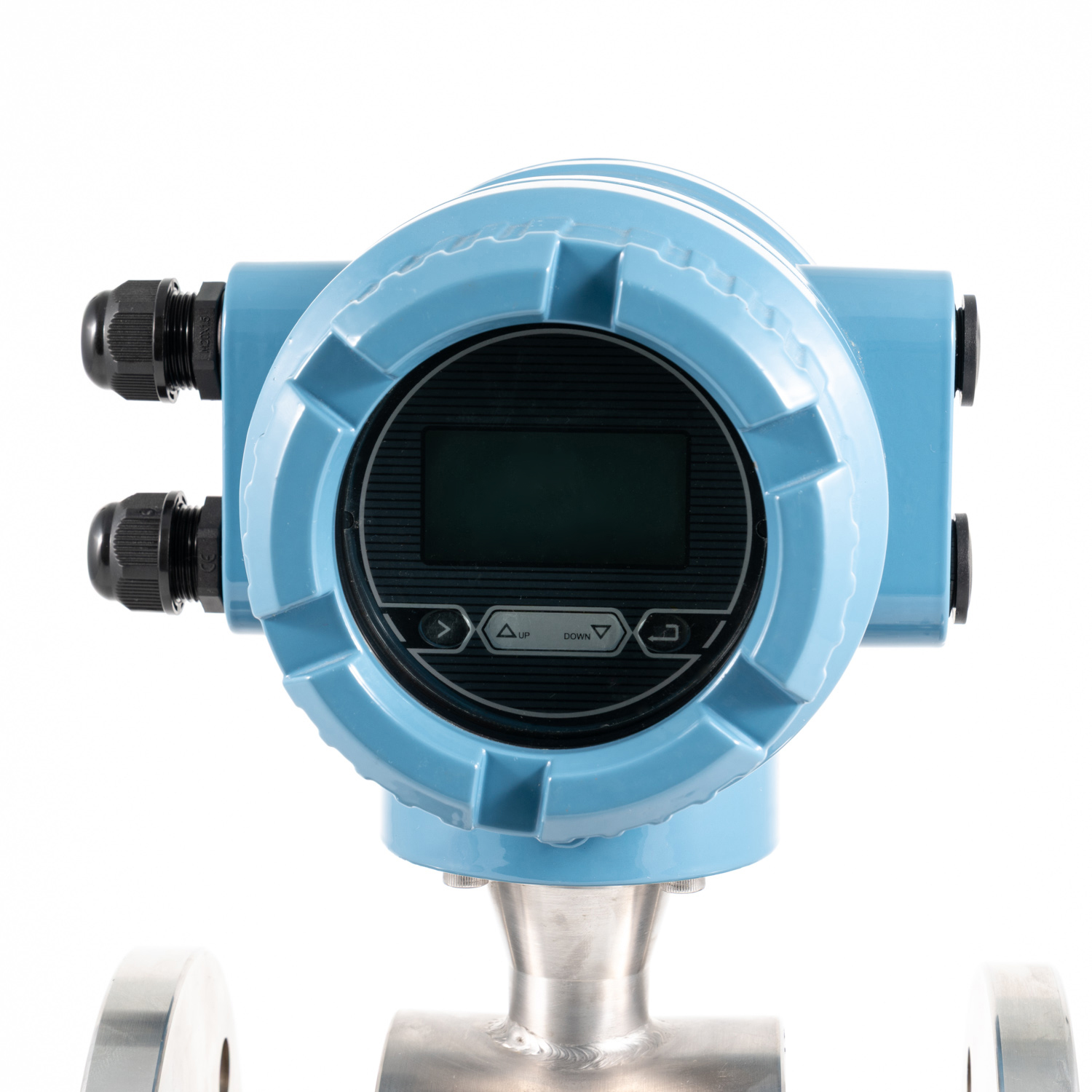

Digital display with flow rate and total flow indication
Supports forward and reverse flow measurement
Multiple output and communication options available
Compact integrated structure for easy installation
Technical Specifications
Parameter | Specification |
Product Type | Explosion Proof Electromagnetic Flow Meter |
Measuring Principle | Faraday Electromagnetic Induction |
Nominal Diameter | DN50 |
Connection Type | Flange Connection |
Body Material | Stainless Steel |
Lining Material | F4 / PTFE |
Electrode Material | 316L Stainless Steel |
Accuracy | ±0.5% (Standard), ±0.2% Optional |
Repeatability | ≤0.1% of measured value |
Measuring Range | 0.1~15 m/s |
Medium Conductivity | ≥5 μS/cm |
Medium Temperature | -20ºC~120ºC |
Pressure Rating | PN10 / PN16 / Customized |
Display | Digital LCD Display |
Power Supply | 24VDC / 220VAC |
Output Signal | 4-20mA / Pulse |
Communication | RS485 Modbus / HART Optional |
Electrical Connection | M20×1.5 cable gland / Customized |
Protection Grade | IP65 (IP67/IP68 Optional) |
Explosion-proof Grade | Ex d / Ex ia |
Flow Direction | Forward / Reverse / Bidirectional |
Note: Specifications can be customized according to customer requirements.
