Deploying accurate temperature measurement in hazardous, explosive, or remote environments presents a complex industrial engineering challenge. Plant managers and control engineers must balance precise signal integrity, strict safety compliance like ATEX or IECEx, and scalable infrastructure costs. Upgrading these networks requires careful component selection. A 2-wire loop-powered RTD Temperature Transmitter elegantly solves these constraints. It combines power delivery and analog signal transmission over a single twisted pair of wires.
While industry experts consider 4-20mA a legacy standard, its foundational physics secure its dominant place in modern facility architecture. Its natural immunity to voltage drop and inherent low-energy profile make it the most reliable choice for intrinsically safe (IS) system designs. In this comprehensive guide, you will learn how to evaluate wiring topologies and implement fail-safe safety barriers. We will also explore critical loop budget calculations to ensure your next deployment operates flawlessly under demanding conditions.
Infrastructure Efficiency: 2-wire loop-powered designs eliminate the need for independent power supplies, drastically reducing conduit and cabling costs in expansive facilities.
Intrinsic Safety Simplification: Operating well below ignition energy thresholds, 4-20mA loops pair seamlessly with Zener barriers and galvanic isolators for hazardous area compliance.
Fail-Safe Diagnostics: The "live zero" (4mA) baseline guarantees immediate detection of cable breaks or sensor failures (dropping to <3.8mA).
Engineering Constraints: Successful deployment requires strict loop budget calculations to ensure total voltage drop does not exceed the 24VDC supply limits under maximum load (20mA).
Upgrading facility instrumentation requires you to choose a wiring topology. This topology must scale efficiently across vast plant floors without inflating capital expenditures (CapEx). When you evaluate temperature measurement networks, the wiring architecture dictates both installation speed and long-term reliability.
Independent power and signal lines characterize 3-wire and 4-wire systems. They provide a much larger power budget for the transmitter. You might need this extra power if your application requires heavy-draw mechanical relays or ultra-bright local displays. However, this extra power introduces severe drawbacks. You must double the wiring infrastructure, pulling separate cables for power and signal. This complicates grounding schemes across different facility zones. Furthermore, separate power lines increase the system's exposure to electromagnetic interference (EMI) from nearby motors, variable frequency drives, or heavy contactors.
In contrast, a 2-wire loop-powered transmitter draws its operational energy directly from the 4-20mA current loop. You "steal" power from the signal wires themselves. This architecture offers massive engineering advantages:
No Local Power Grids: You face zero requirement for local power grids near the measurement point. You only run one twisted pair from the control room to the sensor.
Distance Immunity: You gain natural immunity to voltage attenuation over long cable runs. Current remains identical throughout a closed series loop, allowing transmission across thousands of feet without signal degradation.
Ground Loop Prevention: You eliminate dangerous ground loop potential if you specify a transmitter featuring integrated galvanic isolation.
Feature | 2-Wire (Loop-Powered) | 3-Wire System | 4-Wire System |
|---|---|---|---|
Power Source | Derived from the 4-20mA loop | External power supply | External power supply |
Wiring Complexity | Minimal (Single twisted pair) | Moderate (Shared ground) | High (Separate power & signal) |
EMI Vulnerability | Very Low (Current-based) | Moderate | Moderate to High |
Ideal Application | Hazardous areas, long distances | Local displays, moderate power | Heavy mechanical relays, high power |
Plant safety remains the highest priority for industrial engineers. Facilities handling volatile gases, explosive dust, or petrochemicals require strict oversight. You must deploy instrumentation incapable of generating sparks. The equipment cannot create thermal conditions capable of causing ignition, even during catastrophic fault states. This is the core principle of Intrinsic Safety (IS).
The total energy available in a standard 24VDC / 20mA loop is inherently low. Because a loop-powered transmitter operates strictly within this constrained energy footprint, it naturally resists overheating or arcing. It seamlessly aligns with hazardous area compliance requirements.
To achieve full IS certification, you must physically and electrically isolate the hazardous zone from the safe zone. You achieve this by inserting intrinsic safety barriers between the control room equipment and the field transmitter.
Zener Diode Barriers: These barriers use diodes to shunt excess voltage to ground and fuses to limit current. They prevent dangerous voltage spikes from reaching the explosive atmosphere. They require a highly reliable, dedicated IS ground connection.
Galvanic Isolators: These devices provide a superior safety mechanism. They sever the direct electrical connection entirely. They transfer the analog signal using optical (optocouplers) or magnetic (transformers) coupling. You do not need a dedicated IS ground, making installation much simpler.
You must ensure the selected device carries the specific localized hazardous area approvals required by your region. Look for certifications like Class I, Div 1 (North America) or ATEX Zone 0 (Europe). Furthermore, the transmitter must operate safely within the barrier’s entity parameters. Check the documentation to confirm the transmitter's maximum voltage (Vmax), maximum current (Imax), internal capacitance (Ci), and internal inductance (Li) remain below the barrier's specified limits.
Best Practice: Never mix and match barriers and transmitters without performing a rigorous entity parameter calculation. Documenting the Vmax/Imax compatibility is a mandatory step for passing regulatory safety audits.
Not all transmitters perform equally. When selecting a device for critical process control, you must evaluate the internal electronics. The underlying architecture determines the accuracy, stability, and longevity of your measurement loop.
Designing a loop-powered device requires extreme electrical efficiency. To output a valid 4mA low-end signal, the transmitter’s internal electronics must consume less than roughly 3.5mA combined. The onboard analog-to-digital converter (ADC), microcontroller (MCU), and digital-to-analog converter (DAC) must share this tiny energy pool. Always evaluate the spec sheet for low quiescent current to ensure the device won't starve under low-temperature readings.
Cheaper, non-isolated transmitters present severe operational risks. Ground potential differences between the sensor location and the control room can force stray currents through the RTD sensor housing. This ruins measurement accuracy and damages equipment. Require a specification of >1.5kV AC isolation. This protects your programmable logic controller (PLC) or distributed control system (DCS) from high-voltage field transients.
For advanced diagnostics and remote calibration, select transmitters supporting the Highway Addressable Remote Transducer (HART) protocol. HART superimposes a 1.2kHz/2.2kHz Frequency Shift Keying (FSK) digital signal directly on top of the analog loop. This FSK signal has a 1mA peak-to-peak amplitude. Because HART requires extra power to modulate this signal, selecting a highly efficient low-power transmitter design becomes even more critical.
Industrial RTD sensors (like the PT100) have precise, non-linear resistance curves. Look for transmitter architectures featuring 16-to-24-bit ADCs and 14-to-16-bit DACs. High-resolution components ensure the internal microprocessor can accurately translate and compensate the RTD’s curve before generating the final analog output.
Evaluation Criterion | Minimum Acceptable Spec | Premium/High-End Spec | Engineering Benefit |
|---|---|---|---|
Quiescent Current | <3.8 mA | <3.0 mA | Prevents low-end signal clipping. |
Galvanic Isolation | 500V AC | 1.5kV to 2kV AC | Eliminates ground loops and protects DCS. |
ADC Resolution | 14-bit | 24-bit | Detects micro-ohm resistance changes. |
Communication | Analog Only | HART 7 Protocol | Enables remote calibration and diagnostics. |
Field failures often stem from poor electrical planning rather than defective hardware. You must proactively calculate resistance variables to guarantee your 4-20mA signal reaches the control system intact.
A standard 24V power supply must overcome the resistance of every component wired in series. If the total resistance grows too high, the power supply will lack the "compliance voltage" needed to push 20mA through the loop.
Use this foundational formula for your calculations:
Supply Voltage - Safety Margin > (Transmitter Min Voltage + Cable Drop + Receiver Voltage Drop)
Design Rule: Ensure the total voltage drop across the loop utilizes less than 80% of the power supply capacity. Wire resistance increases in hot weather. Maintaining a 20% margin accounts for these seasonal temperature fluctuations.
Control systems rarely read current directly. Instead, you convert the 4-20mA signal back to voltage at the receiver. You typically place a 250Ω resistor across the input terminals to generate a 1-5VDC signal (since 20mA × 250Ω = 5V). However, many engineers ignore thermal drift.
A 500Ω resistor operating at a full 20mA load dissipates 0.2W of heat. Standard commercial resistors will heat up under this continuous load. As they heat, their resistance value alters, instantly skewing your process temperature reading.
Common Mistake Avoidance: To eliminate temperature coefficient drift, specify a 2W or higher wire-wound load resistor. Over-sizing the wattage rating keeps the resistor physically cool, ensuring rock-solid measurement accuracy.
Navigating vendor catalogs can overwhelm even experienced engineers. Use this three-step logic to filter options and specify the exact RTD Temperature Transmitter required for your facility.
Step 1: Application Assessment and Visibility. Does the process require local visibility for field operators? If yes, ensure your chosen loop-powered device features a highly efficient LCD. Liquid crystal displays draw power. In extreme cold weather, insufficient current can cause screen failure or severe lagging. Verify the operating temperature limits of the display module, not just the transmitter body.
Step 2: Sensor Compatibility and Wiring. Verify support for your specific RTD types. PT100 and PT1000 sensors dominate the industry, but they require different measurement ranges. Furthermore, check the input wiring configurations. The transmitter must support 3-wire or 4-wire RTD inputs to actively measure and subtract lead-wire resistance. This mitigates severe measurement errors over long sensor wire runs.
Step 3: Enclosure and Mounting Hardware. Match the physical form factor to your infrastructure layout.
Head-Mount: Fits directly inside the sensor connection head (often a hockey-puck shape). Ideal for space-saving field deployments.
DIN-Rail Mount: Designed for dense integration inside centralized control cabinets.

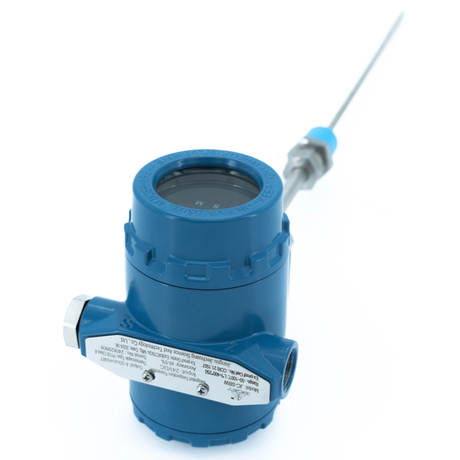

Field-Mount: Features ruggedized NEMA 4X or IP67 die-cast enclosures. Necessary for harsh, wet, or corrosive outdoor environments.
While modern digital protocols and wireless networks continue to evolve, the 4-20mA loop-powered RTD temperature transmitter remains the industrial gold standard. It delivers an unmatched blend of wiring simplicity, long-distance analog reliability, and straightforward intrinsic safety certification. By drawing power directly from the current loop, you drastically reduce infrastructure requirements while safeguarding volatile environments.
To ensure a successful deployment, we recommend the following action steps:
Audit Your Loop Budget: Calculate the exact voltage drop of your cables, barriers, and receiver resistors before ordering hardware. Maintain that critical 20% safety margin.
Verify Hazardous Classifications: Cross-reference your plant's ATEX or IECEx zone ratings with the transmitter's entity parameters and your chosen galvanic isolators.
Prioritize Isolation: Always request vendor quotes for fully isolated transmitters to protect your expensive control room infrastructure from unpredictable ground loops.
A: A 4mA "live zero" provides the minimum electrical power necessary to run the transmitter's internal microprocessor continuously. More importantly, it allows the control system to immediately distinguish between a legitimate low-temperature reading (4mA) and a severed cable or severe fault state (dropping between 0 and 3.8mA).
A: Generally, no. Loop-powered devices are heavily constrained by their strict power budget, derived entirely from the sub-20mA current loop. They typically cannot supply the burst current required to drive mechanical relays without collapsing the loop voltage and failing.
A: Unlike voltage signals (such as 0-10V) which suffer from voltage drop over long wire runs, current remains mathematically identical at every point in a series circuit. As long as your power supply has sufficient compliance voltage to push the current through the cable's resistance, the 4-20mA analog signal will not degrade.
