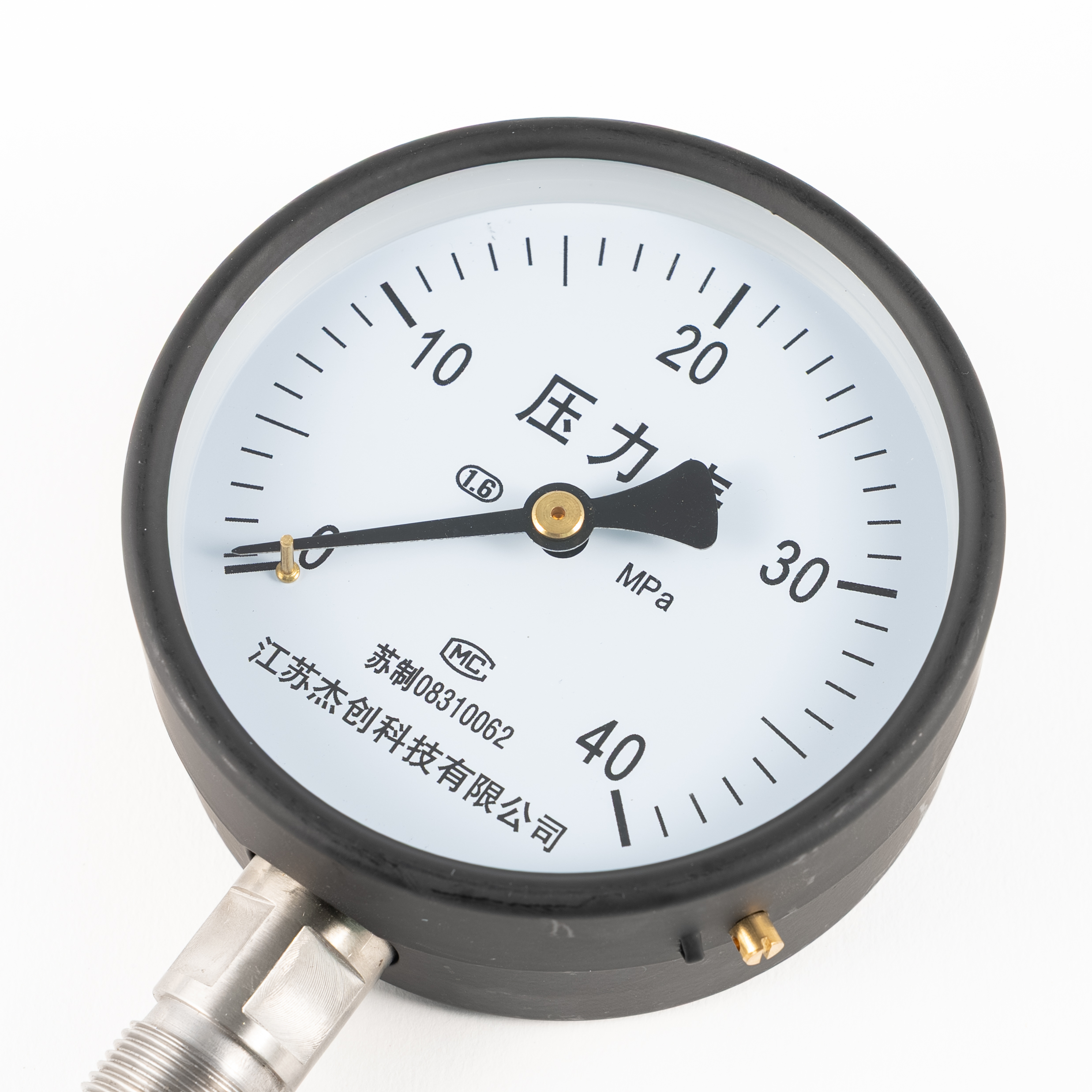

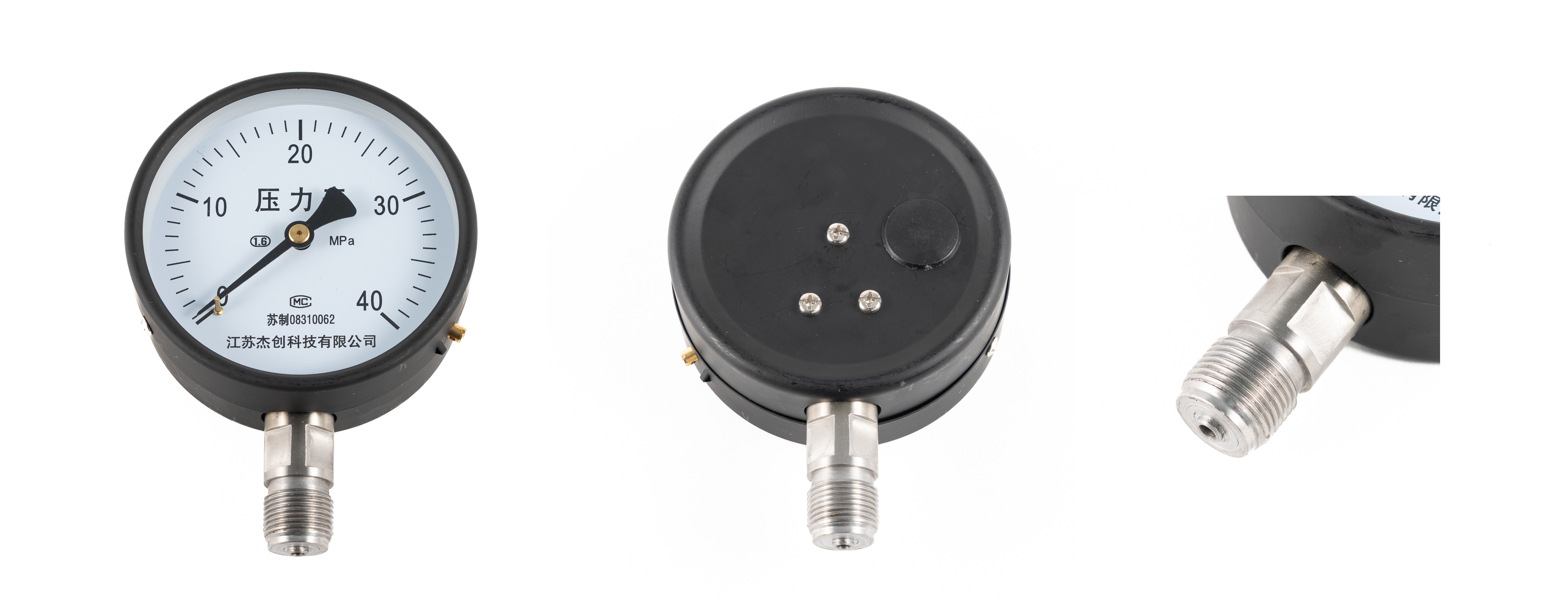

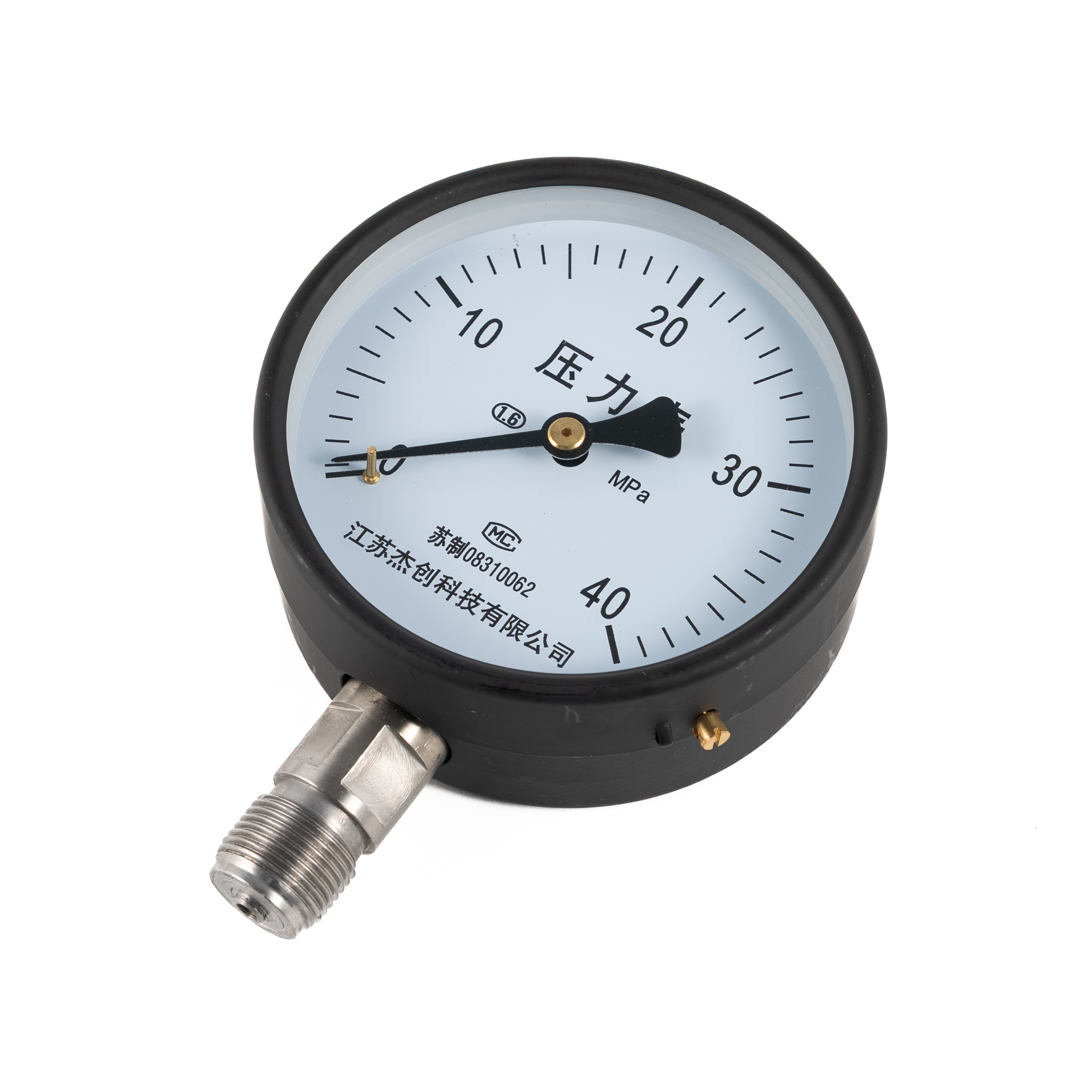

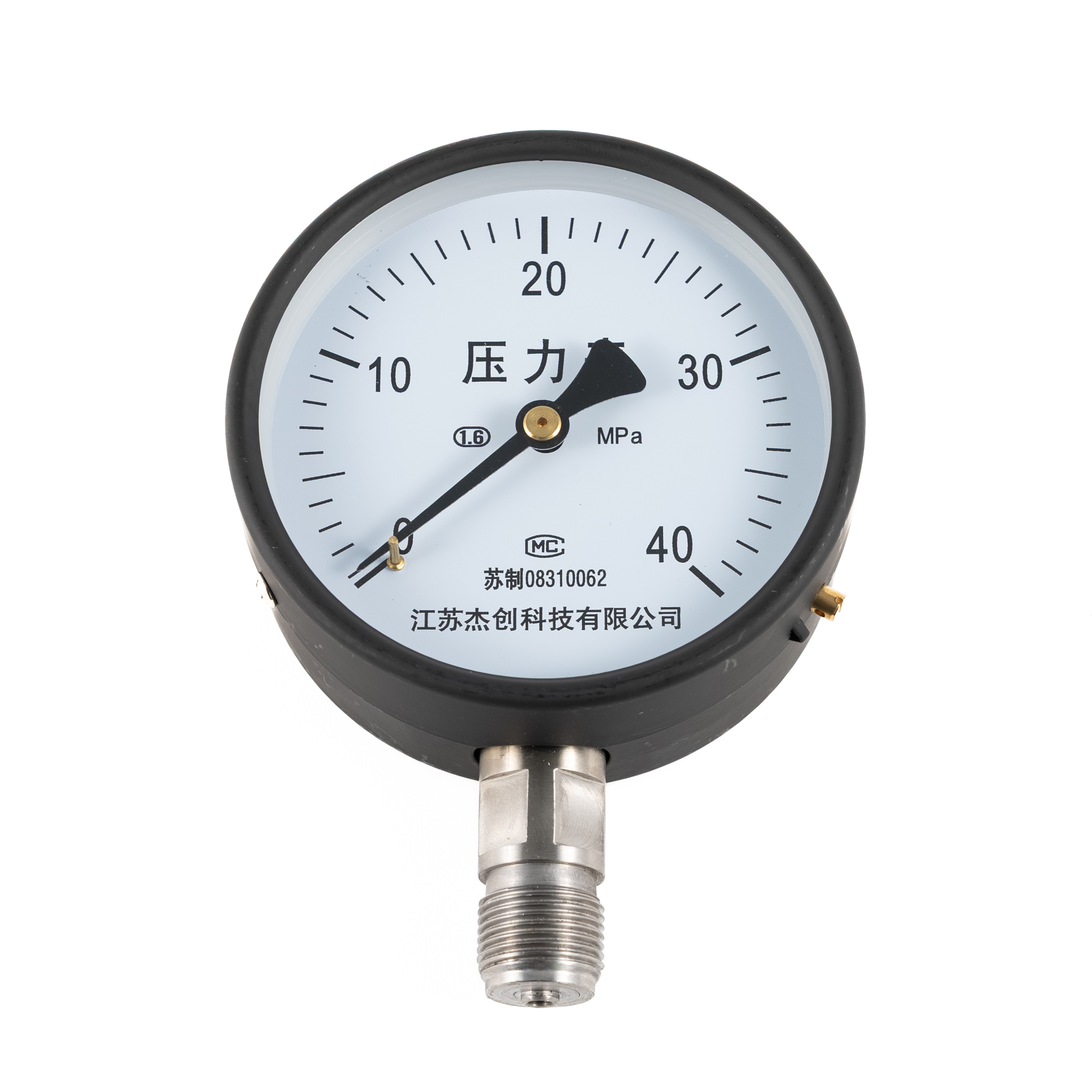

Y Series Standard Pressure Gauge with Stainless Steel Connection
Product Overview:
This is a standard Y-series mechanical radial pressure gauge with a stainless steel connection and black powde
coated iron case, designed for measuring positive pressure in non-corrosive gas and liquid media.
It features a clear dial scale for intuitive reading; the powder-coated iron case provides excellent durability and
rust resistance, while the stainless steel wetted part ensures basic corrosion resistance and long-term reliability in common industrial environments.
It is the most widely used general-purpose pressure gauge for industrial pipeline and process monitoring.
Main Applications:
General industrial process monitoring
Water supply and pipeline systems
Air compressors and pneumatic equipment
Machinery manufacturing and hydraulic systems
HVAC and general plant utilities
Petrochemical, light industry and environmental protection industries
Parameters:
Parameter | Standard Specification |
Model Series | Y Series (Y-60 / Y-100 / Y-150 / Y-200) General Pressure Gauge |
Dial Size | 60mm / 100mm / 150mm / 200mm (customizable) |
Accuracy Grade | 1.0/1.6 / 2.5 (customizable) |
Measuring Range | 0-40MPa (customizable ranges available) |
Working Pressure Limit | Static: 75% of Full Scale; Dynamic: 60% of Full Scale |

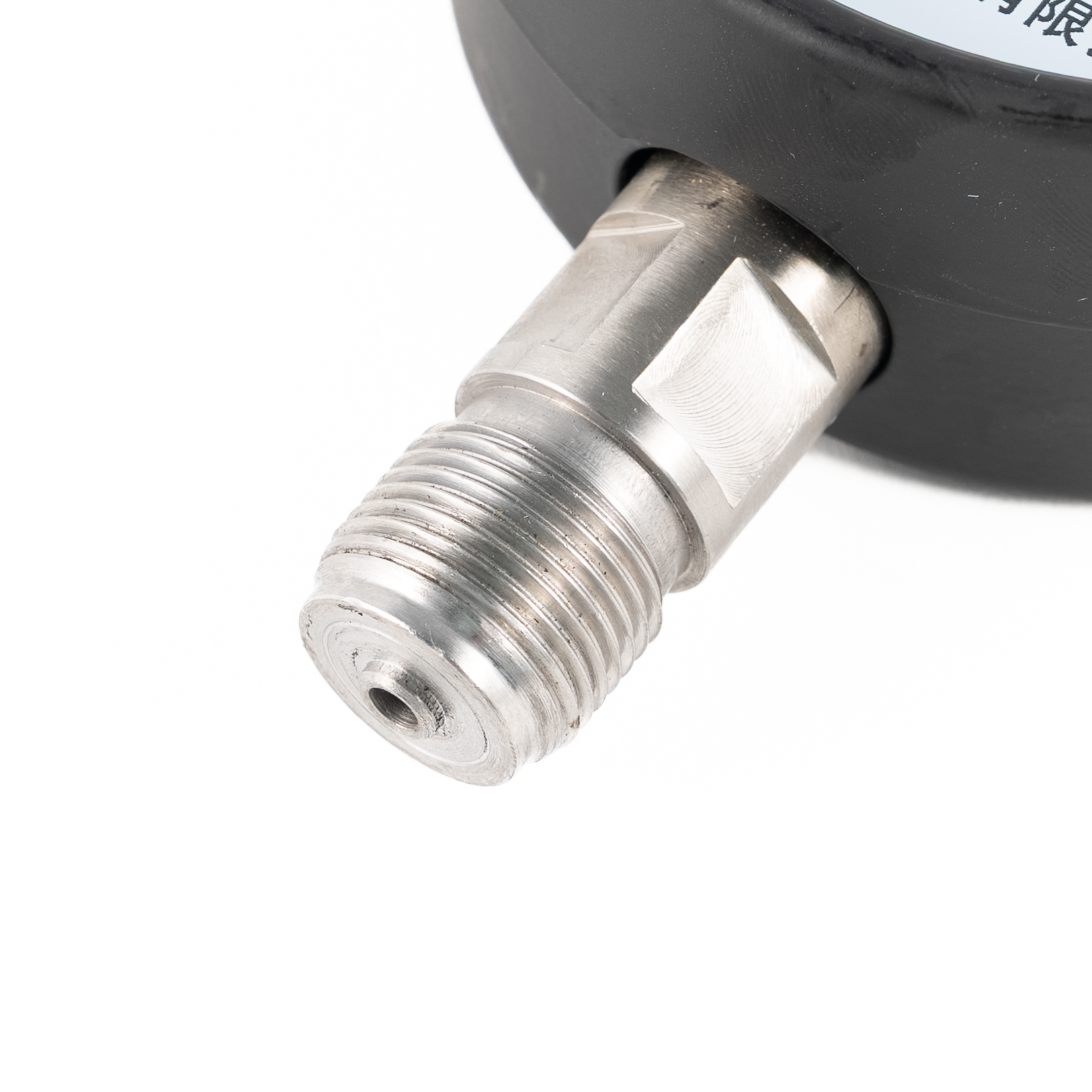

Wetted Part Material | Stainless Steel (SS304/SS316L optional) |

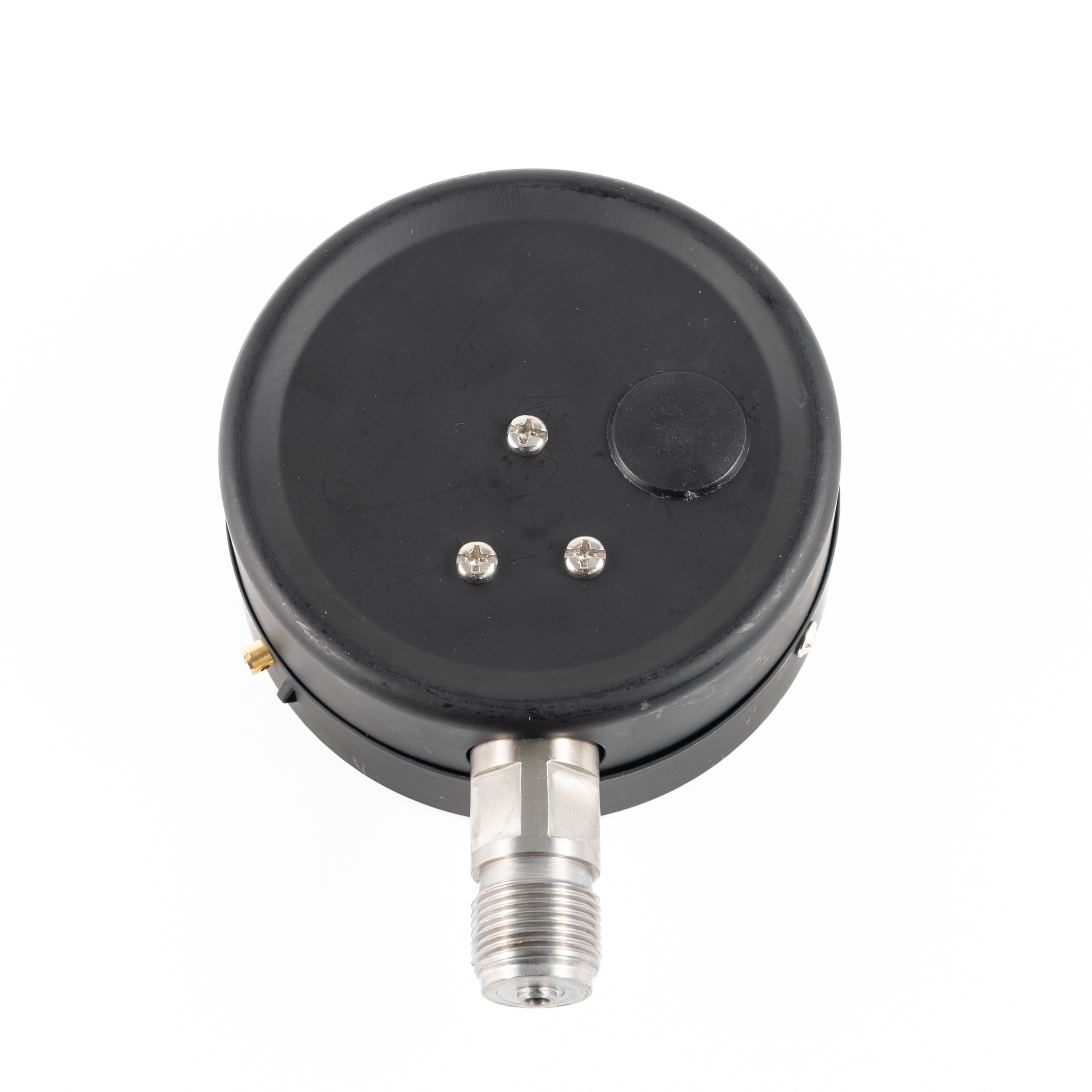

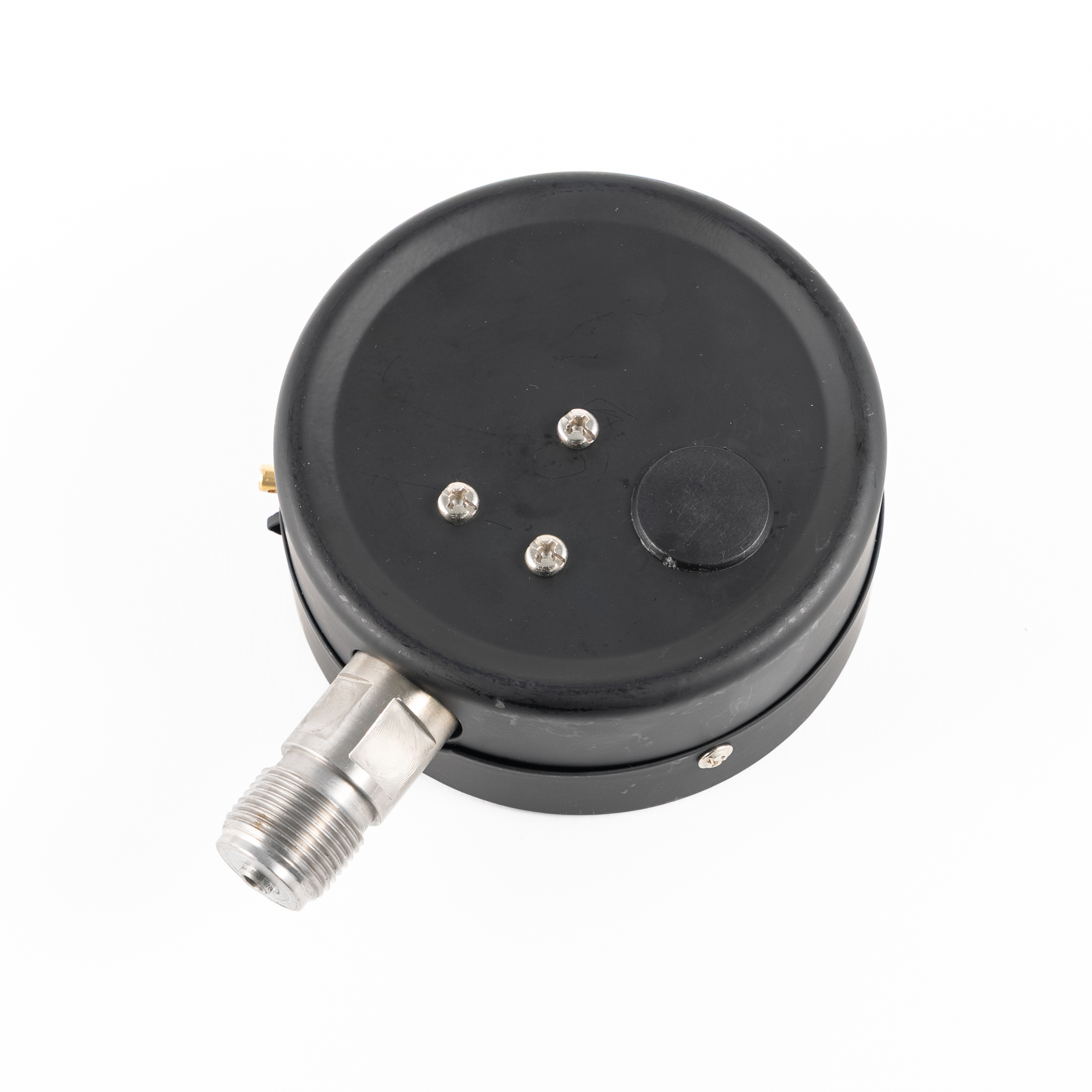

Case Material | Standard Black Powder-Coated Iron, 304/316L Stainless Steel optional (customizable) |
Standard Connection Thread | M20×1.5 (1/2" NPT / G1/2" / R1/2" customizable) |
Dial Window | Ordinary Clear Glass, Tempered Glass optional (customizable) |
Operating Temperature Range | -40℃ ~ +70℃,high/low temperature resistant options available |
Protection Grade | Standard IP54, IP65/IP66 optional (customizable) |
Mounting Type | Standard Radial Direct Mount (Bottom Entry), Axial Mount / Panel Mount optional |
Pressure Unit | MPa (psi / bar / kgf/cm² customizable) |
Note: All parameters can be customized as required.
