In the complex and demanding world of industrial fluid management, selecting the appropriate measurement device is critical for ensuring operational efficiency, maintaining safety standards, and optimizing process control. Among the various technologies available to engineers and facility managers, the Electromagnetic Flowmeter stands out as a highly specialized and incredibly accurate instrument. However, a common question arises during the procurement and system design phases: what exactly differentiates this advanced magnetic technology from other, more traditional normal flow meters? Understanding these distinctions requires a deep dive into the fundamental principles of fluid dynamics, the specific operational mechanics of different meter types, and the unique environmental and physical demands of various industrial applications. By exploring the core differences in measurement techniques, structural design, and fluid compatibility, professionals can make informed decisions that directly impact the longevity and reliability of their fluid handling systems.
To grasp the differences between various measurement devices, one must first understand how an electromagnetic flowmeter operates. This device relies on Faraday's Law of Electromagnetic Induction, a fundamental principle of physics which states that a voltage will be induced across any conductor as it moves at right angles through a magnetic field. In the context of fluid measurement, the fluid itself acts as the moving conductor. As the conductive liquid passes through the meter's flow tube, which is encompassed by magnetic coils, it generates a small electrical voltage. This induced voltage is directly proportional to the velocity of the fluid moving through the magnetic field. The meter's transmitter then captures this voltage via electrodes mounted in the tube wall and converts it into a highly accurate flow reading. Because this method relies entirely on electromagnetic fields and electrical conductivity, it requires no physical obstruction within the pipe, resulting in a completely unobstructed flow path.
One of the most significant advantages of the electromagnetic flowmeter design is the absence of moving parts within the measurement tube. Traditional mechanical meters often rely on rotors, propellers, or other physical components that must interact directly with the fluid stream to gauge its velocity. These intrusive elements inherently create a pressure drop across the meter, forcing pumps to work harder to maintain system pressure. Furthermore, moving parts are susceptible to wear and tear, especially when dealing with fluids that contain suspended solids, particulates, or abrasive materials. By eliminating these internal components, the electromagnetic flowmeter minimizes pressure loss, significantly reduces the need for routine mechanical maintenance, and extends the overall operational lifespan of the instrument, even in harsh industrial environments.
While magnetic induction provides a robust solution for conductive fluids, the industry relies on a wide array of "normal" flow meters to handle different types of media, including non-conductive liquids, gases, and steam. Each of these alternative technologies utilizes distinct physical principles to calculate flow rates, and understanding their mechanics is essential for comparative analysis.
A widely used alternative in clean fluid applications is the Turbine Flowmeter. This device operates on a relatively straightforward mechanical principle. It features a multi-bladed rotor suspended in the fluid stream, with its axis of rotation parallel to the direction of flow. As the fluid passes through the meter housing, it impacts the angled blades of the rotor, causing it to spin. The rotational speed of the turbine is directly proportional to the velocity of the fluid. A sensor, typically a magnetic pickup coil mounted on the exterior of the meter housing, detects the passing of each rotor blade and generates a pulse signal. The frequency of these pulses is then translated into a volumetric flow rate. While highly accurate and responsive, turbine meters are generally restricted to clean, low-viscosity fluids, as debris can easily damage the delicate rotor blades or cause the bearings to seize, leading to inaccurate readings or complete mechanical failure.
Another prevalent technology is the Vortex Flowmeter, which leverages the von Kármán effect. This principle describes the phenomenon where a fluid flowing past a bluff body (a non-streamlined obstacle placed in the flow path) generates a series of alternating vortices downstream. As the fluid separates and flows around the bluff body, it creates areas of high and low pressure, causing vortices to shed alternately from each side. The frequency at which these vortices are shed is directly proportional to the fluid's velocity. Sensors within the meter detect these pressure fluctuations and convert them into a flow measurement. Vortex meters are highly versatile, capable of measuring liquids, gases, and steam, and they lack the rapidly moving mechanical parts found in turbine meters. However, they do introduce a slight pressure drop due to the presence of the bluff body, and they require a minimum flow velocity to generate measurable vortices.
For applications requiring non-invasive measurement, the Ultrasonic Flowmeter offers a sophisticated solution. This technology uses high-frequency sound waves to determine fluid velocity. The most common type, the transit-time ultrasonic meter, employs pairs of transducers mounted on the outside of the pipe. These transducers alternately transmit and receive ultrasonic pulses diagonally across the fluid stream. When a sound wave travels in the same direction as the fluid flow, its transit time is decreased; conversely, when it travels against the flow, its transit time is increased. The meter calculates the difference in these transit times, which is directly proportional to the fluid's velocity. Because the transducers can be clamped onto the exterior of the pipe, ultrasonic meters are ideal for retrofitting existing systems without requiring pipe modifications or process shutdowns. However, their accuracy can be affected by the presence of significant air bubbles or high concentrations of suspended solids, which can scatter the sound waves.
For simpler, often localized flow monitoring, the Variable Area Flowmeter, commonly known as a rotameter, remains a staple in many industries. This device consists of a tapered, transparent tube (usually made of glass or plastic) positioned vertically, with the wider end at the top. Inside the tube is a specially shaped float. As fluid enters the bottom of the tube and flows upward, it exerts a buoyant and hydrodynamic upward force on the float. The float rises until this upward force is perfectly balanced by the downward force of gravity acting on the float's mass. Because the tube is tapered, the annular area between the float and the tube wall increases as the float rises, allowing more fluid to pass. The position of the float within the tube directly indicates the flow rate, which is typically read against a graduated scale printed on the tube itself. While cost-effective and easy to read without requiring external power, variable area meters are generally less accurate than electronic meters and must be installed in a strictly vertical orientation.
Having established the operational principles of these various devices, we can now delineate the primary differences that dictate their application in industrial settings. The choice between an electromagnetic flowmeter and a normal flow meter hinges on several critical factors, including fluid conductivity, pressure loss constraints, maintenance requirements, and the physical characteristics of the media being measured.
The most absolute dividing line between electromagnetic flowmeters and other technologies is the requirement for fluid conductivity. Because electromagnetic meters rely on Faraday's Law, the fluid itself must be capable of conducting an electrical current. If the fluid is non-conductive—such as purified water, hydrocarbons, oils, or gases—an electromagnetic meter simply will not work, as no voltage will be induced. In these scenarios, engineers must rely on normal flow meters like turbine, vortex, or ultrasonic devices, which base their measurements on mechanical interaction, pressure dynamics, or sound wave propagation, none of which require electrical conductivity.
System efficiency is heavily influenced by pressure loss across measurement devices. Electromagnetic flowmeters excel in this area because their smooth, unobstructed internal bore mirrors the internal diameter of the surrounding pipeline. This design introduces virtually zero additional pressure drop into the system, minimizing the energy required by pumps to maintain flow. In contrast, many normal flow meters inherently cause a pressure drop. Turbine meters introduce resistance through their spinning rotors, vortex meters create obstruction via their bluff bodies, and variable area meters rely on the fluid lifting a physical float. In large-scale operations or systems where maintaining pressure is critical, the unobstructed design of the electromagnetic meter provides a significant operational advantage.
The physical composition of the fluid plays a major role in meter selection. Normal flow meters with moving parts, such as turbine meters, are highly susceptible to damage from suspended solids, particulates, or fibrous materials, which can clog mechanisms or degrade bearings. Even vortex meters can suffer from wear on the bluff body when exposed to highly abrasive slurries. Electromagnetic flowmeters, lacking any internal moving parts or obstructions, are exceptionally well-suited for handling difficult media. They are frequently deployed in wastewater treatment, mining slurries, and paper pulp processing, where normal meters would quickly fail due to mechanical wear or blockages.

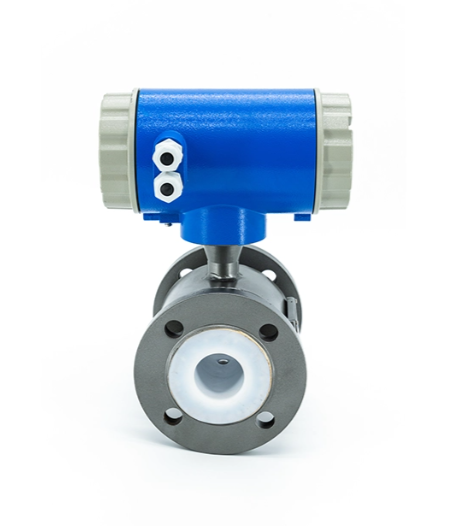

To illustrate the advanced capabilities of modern magnetic flow measurement, we examine the JIECHUANG High-Precision Integrated Electromagnetic Flow Meter for Water, specifically the Model JC-090. This device exemplifies the robust engineering and precise specifications required for demanding industrial and municipal applications.
The JIECHUANG JC-090 is categorized as an Electromagnetic Flow Meter designed with versatility in mind. It is available in multiple configurations to suit varying installation environments. The integrated design combines the sensor and transmitter into a single, cohesive unit, which is particularly beneficial for simplifying installation in tight spaces where running extensive cabling is impractical. This integrated unit includes a digital display, allowing operators to monitor flow rates and adjust settings directly at the measurement point. Furthermore, the JC-090 is designed with no moving parts, a core feature that minimizes upkeep and eliminates the pressure loss associated with mechanical meters.
For environments where the measurement point is difficult to access or poses safety risks, the JC-090 is available in a split-type configuration. This allows the sensor to be placed in hazardous or hard-to-reach areas while the transmitter remains accessible in a safe, convenient location for monitoring and configuration. Additionally, for large-scale infrastructure, the meter is available in an insertion-type configuration. This allows for non-invasive installation in large pipelines without the need for costly and disruptive pipe cutting.
The technical parameters of the JC-090 highlight its precision and adaptability. It supports a vast range of pipe sizes, with a Nominal Diameter spanning from DN10 up to DN3200. It is important to note that the insertion type configuration requires a nominal diameter of at least DN200. The meter is capable of accurately measuring fluid velocities within a Flow Measurement Range of 0.3 to 10 m/s.
Accuracy is paramount in fluid measurement, and the JC-090 delivers exceptional performance. The pipeline type configuration offers accuracy grades of 0.2, 0.5, and 1.0, while the insertion type provides a 2.5 grade accuracy. Across these configurations, the device maintains a stringent Repeatability Error of ±0.1% of the measured value, ensuring consistent and reliable data over time.
The meter's electrical and communication specifications are designed for seamless integration into modern industrial control systems. It features multiple Communication Interfaces, including RS232, RS485, and HART protocols. The device provides a fully isolated Output Current of 4~20mA. Power Supply options include both AC220V 50Hz and DC24V, accommodating different facility power infrastructures. The system is designed to operate reliably in environments with a Relative Humidity ranging from 5% to 95% RH.
The JC-090 is engineered to withstand diverse environmental conditions, but careful attention must be paid to its material specifications and limitations. The Ambient Temperature range for the sensor is rated from -40°C to +80°C, while the converter can operate between -25°C to +60°C. The Medium Temperature Range depends heavily on the internal lining selected. A rubber lining supports fluid temperatures from -20°C to +80°C, whereas a PTFE lining expands this capability to handle temperatures from -30°C to +150°C. However, it is a strict condition that medium temperatures above 80°C must be specified at the time of ordering to ensure proper manufacturing configurations.
Material compatibility is a critical limitation that must be observed to prevent catastrophic failure. While PTFE linings offer excellent high-temperature and chemical resistance, they are not resistant to chlorine trifluoride or high-temperature oxygen difluoride. Similarly, the selection of electrode materials carries specific restrictions. Platinum/Iridium alloy electrodes, while highly resistant to many corrosive substances, are not suitable for use with aqua regia or ammonium salts. Titanium electrodes are not resistant to pure reducing acids unless oxidizing agents are present in the fluid. Adhering to these limitations is essential for maintaining the integrity of the meter.
The JC-090 is highly versatile, with verified use cases spanning multiple critical industries. It is extensively utilized in water treatment and municipal management, chemical processing and fluid handling, food and beverage production, as well as oil and gas pipelines.
For the meter to function, it is compatible exclusively with conductive liquids possessing a conductivity of ≥ 5μs/cm. Within this requirement, the meter's performance can be optimized based on the specific type of fluid. For clean water applications, the optimal flow velocity is between 1.5 and 3 m/s. When handling solutions that are prone to crystallization, a higher optimal flow of 3 to 4 m/s is recommended to prevent buildup on the electrodes. Conversely, when measuring abrasive fluids like slurry, a lower optimal flow of 1.0 to 2 m/s is advised to minimize wear on the internal lining.
Proper installation is vital for achieving the stated accuracy of the JC-090. Pipeline installations strictly require a straight pipe length of at least 10DN upstream and 5DN downstream from the meter to ensure a stable, fully developed flow profile. If the system experiences flow rates below 0.3 m/s, a reduction pipe should be used to increase the velocity through the measurement tube. For optimal performance, the normal flow rate should be maintained at slightly more than 50% of the flowmeter’s full scale.
When utilizing the split-type models, maintenance and installation protocols dictate that the cable distance between the sensor and the transmitter should be kept under 30 meters. Exceeding this distance can lead to signal interference and degraded measurement accuracy.
The JC-090 meets rigorous industrial standards, carrying an Explosion-proof Mark of ExdIIBT4, ensuring safe operation in potentially volatile environments. It also boasts robust Protection Grades, including IP65, IP67, and an IP68 rating for the submersible type, providing excellent defense against dust and water ingress. Furthermore, it adheres to the Flange Standard GB9119-2000, ensuring compatibility with standard industrial piping infrastructure.
The JIECHUANG High-Precision Integrated Electromagnetic Flow Meter for Water (Model JC-090) represents a highly sophisticated solution for industrial fluid measurement, offering distinct advantages over traditional mechanical meters through its unobstructed, no-moving-parts design. By providing exceptional accuracy across a massive range of pipe diameters (DN10-3200), supporting versatile configurations like split and insertion types, and accommodating harsh environments with robust explosion-proof and high-protection ratings, this device delivers immense practical value. Its ability to accurately measure challenging conductive media—from clean municipal water to abrasive chemical slurries—without inducing pressure loss makes it an ideal, low-maintenance investment for professionals managing complex infrastructure in water treatment, chemical processing, and food production facilities.
