In the rapidly advancing field of process automation, radar level transmitters have undoubtedly become the "star products" of modern liquid level measurement. With their non-contact technology, ultra-high precision, and virtually maintenance-free operation, radar transmitters have aggressively expanded across the petroleum, chemical, and water treatment industries.
However, amidst this technological wave, a compelling question arises: Why hasn't the seemingly traditional and structurally simple Magnetic Level Indicator (MLI) been rendered obsolete? How does it continue to secure a stable and growing position in the market?
The answer lies in the MLI’s foundational physical advantages and its ability to seamlessly integrate with modern high-precision remote transmission technologies.
While radar level transmitters are exceptionally powerful, they possess a critical vulnerability: an absolute reliance on electrical power and electronic signals. In the event of a plant blackout, communication failure, or signal drift caused by probe scaling and steam interference, operators completely lose visibility of the tank's liquid level.

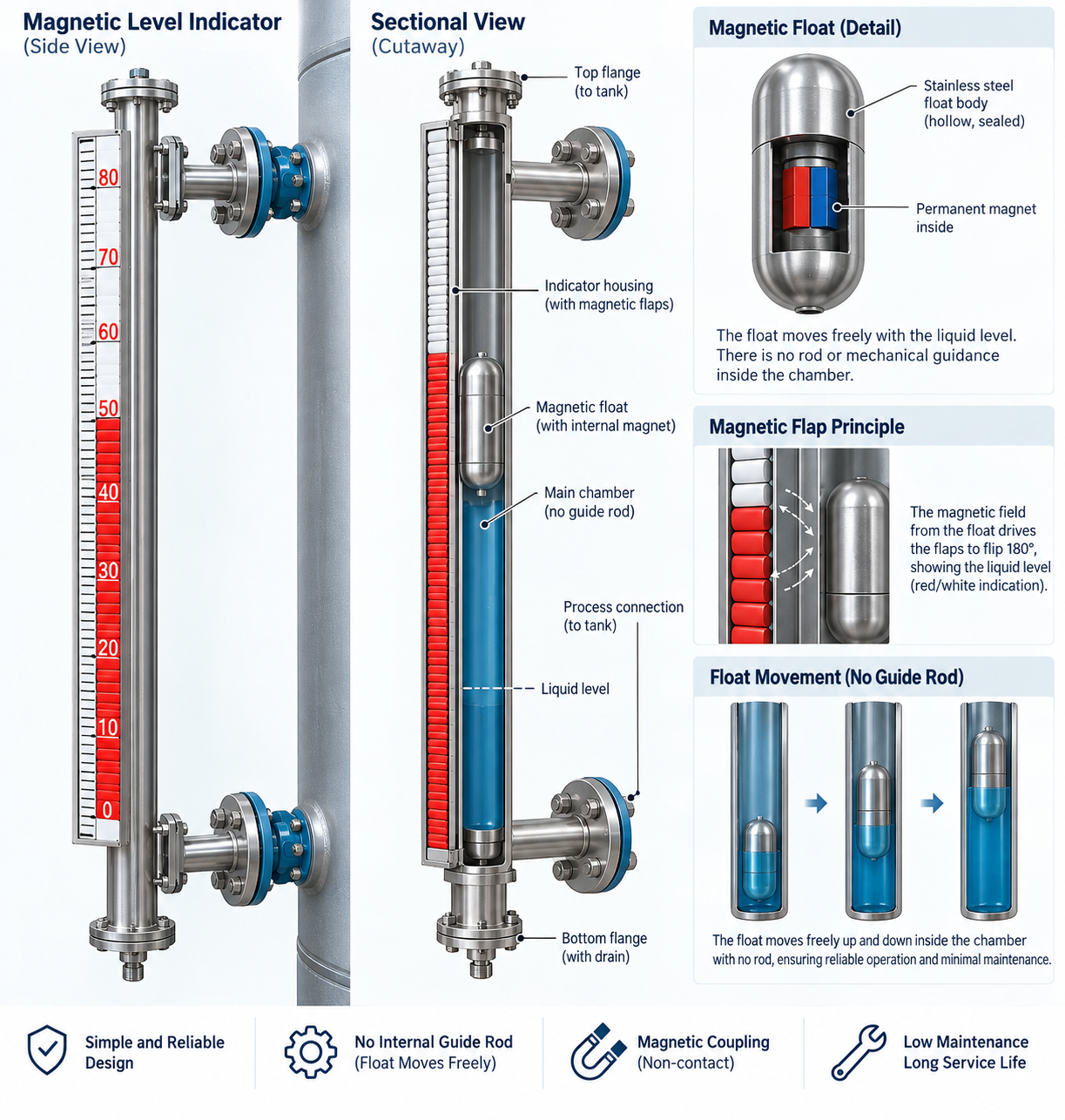

Magnetic level indicators operate on a fundamentally different paradigm. Relying entirely on Archimedes' principle of buoyancy and magnetic coupling, an internal magnetic float rises and falls with the liquid, driving the external bi-color (red and white) magnetic flags to flip. Red typically indicates the presence of liquid, while white indicates empty space—a highly intuitive and visual system.
This purely physical process requires no electricity and no signal conversion. In critical scenarios—even without power or network connectivity—an MLI continues to provide highly accurate readings. For storage tanks containing flammable, explosive, or toxic media, the MLI serves as the most trusted "last line of defense" for field operators, offering intrinsic safety that electronic instruments simply cannot replicate.
A common misconception is that magnetic level indicators offer low precision and are only good for local viewing. In reality, the accuracy and functionality of an MLI depend entirely on the remote transmission technology it is paired with. By integrating modern transmitters, MLIs have evolved from simple analog gauges into essential nodes within intelligent Distributed Control Systems (DCS).
Here are the primary remote transmission options:
This is the technology that elevates the MLI to compete directly with radar transmitters. Utilizing the magnetostrictive effect, this transmitter measures the time-of-flight of a pulse wave along a waveguide wire to pinpoint the float's exact location. This method achieves an astonishing continuous measurement accuracy of up to ±0.1 mm and outputs standard 4-20mA or HART digital signals. Crucially, the readings remain completely unaffected by variations in fluid density, pressure, or temperature.
Mounted on the exterior of the measuring tube, reed switches close when the internal float passes by, providing discrete switch signals. While they do not provide continuous level readings—their resolution is typically tied to the spacing of the switches (often 10~50mm)—they are an exceptionally cost-effective and passive solution for high/low-level alarms and pump interlocking.
Despite their high accuracy, radar electromagnetic waves are highly susceptible to harsh process conditions:
Steam and Foam: Violent volatilization or heavy foaming can scatter or absorb radar waves, leading to signal loss.
Low Dielectric Constants: Media like liquefied gases or light hydrocarbons provide very weak radar reflections, making measurement difficult.
Internal Obstructions: Agitators, baffles, and near-field blind spots can severely disrupt the radar's reflection path.
Conversely, MLIs utilize a bypass chamber design that isolates the float from internal tank turbulence, foam, and direct steam contact. They perform reliably even in extreme conditions, capable of withstanding temperatures exceeding 350°C and pressures above 16MPa.
When evaluating project budgets, tank height plays a crucial role. For exceptionally tall vessels (for example, a 30-meter tall silo or tank), a non-contact radar level transmitter is undoubtedly the more economical choice, as the manufacturing and material costs of an MLI's stainless steel chamber scale linearly with height. However, for standard small to medium-sized tanks, an MLI typically costs only one-half to one-third the price of a comparable radar level transmitter. For facilities managing thousands of intermediate tanks, water treatment basins, and standard oil storage vessels, this outstanding cost-effectiveness makes MLIs a priority in engineering design.
The ultimate reason MLIs have not been eliminated by radar is that they are no longer competitors; they are complementary partners.

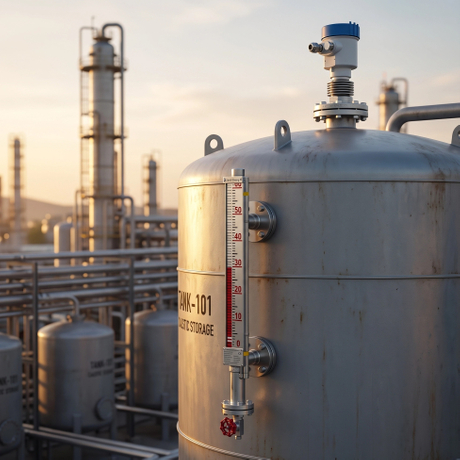

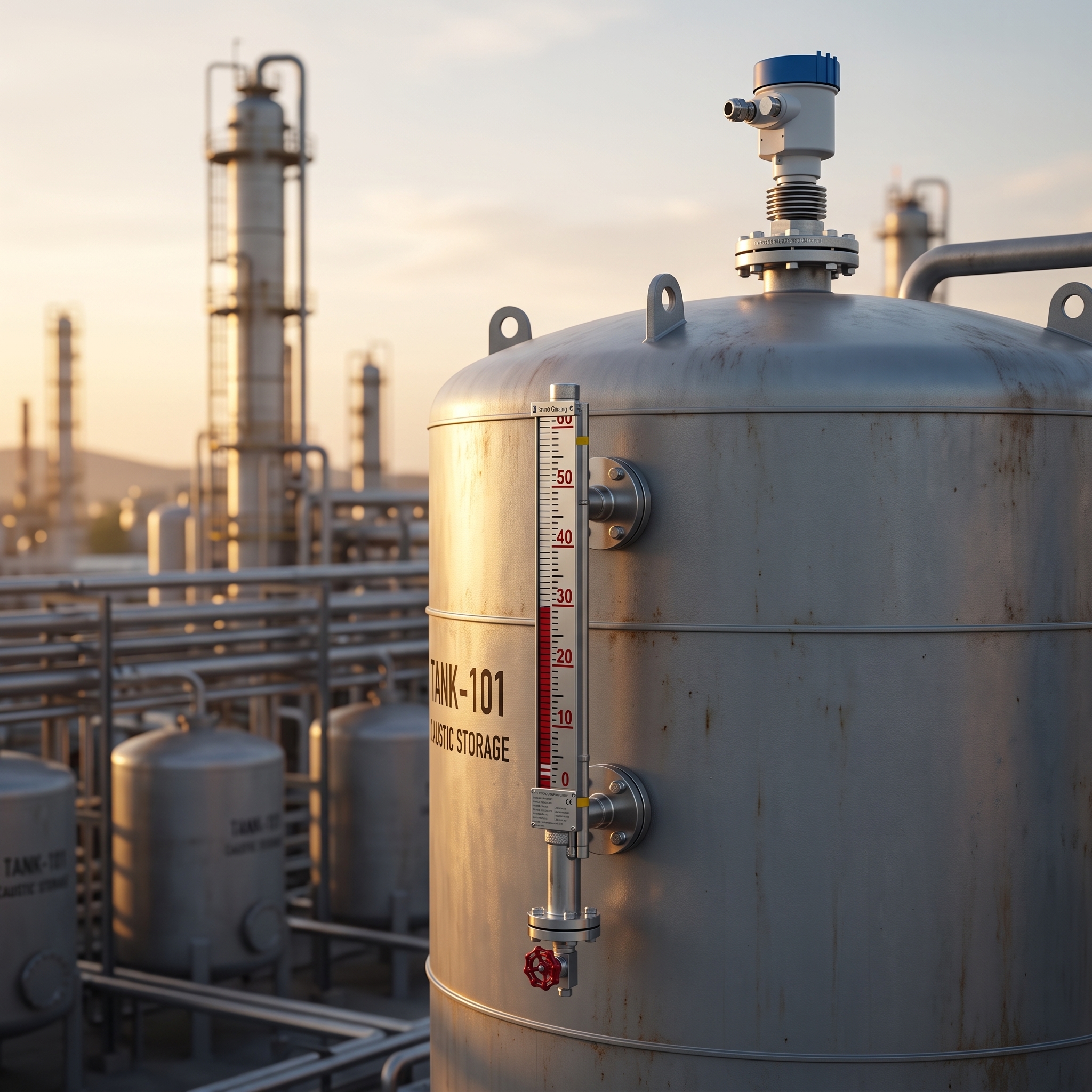

For critical storage tanks requiring Safety Instrumented Systems (SIS), engineering directives often mandate redundant, independent level measurement. In these setups, a radar level transmitter is connected to the DCS for continuous process control, while an MLI acts as an independent physical backup wired to the SIS for safety interlocking.
If the radar experiences signal drift or a power failure, operators can instantly verify the true liquid level by checking the MLI’s mechanical flags, preventing catastrophic misjudgments.
In the pursuit of ultimate reliability in industrial measurement, the magnetic level indicator is far from obsolete. At Jiangsu Jiechuang Science And Technology Co., Ltd., we understand that while radar provides "smart" automation, the MLI provides the indispensable "safety net". By pairing robust mechanical design with high-precision electronics, our level measurement solutions guarantee both performance and peace of mind.
