JC-50L
JIECHUANG

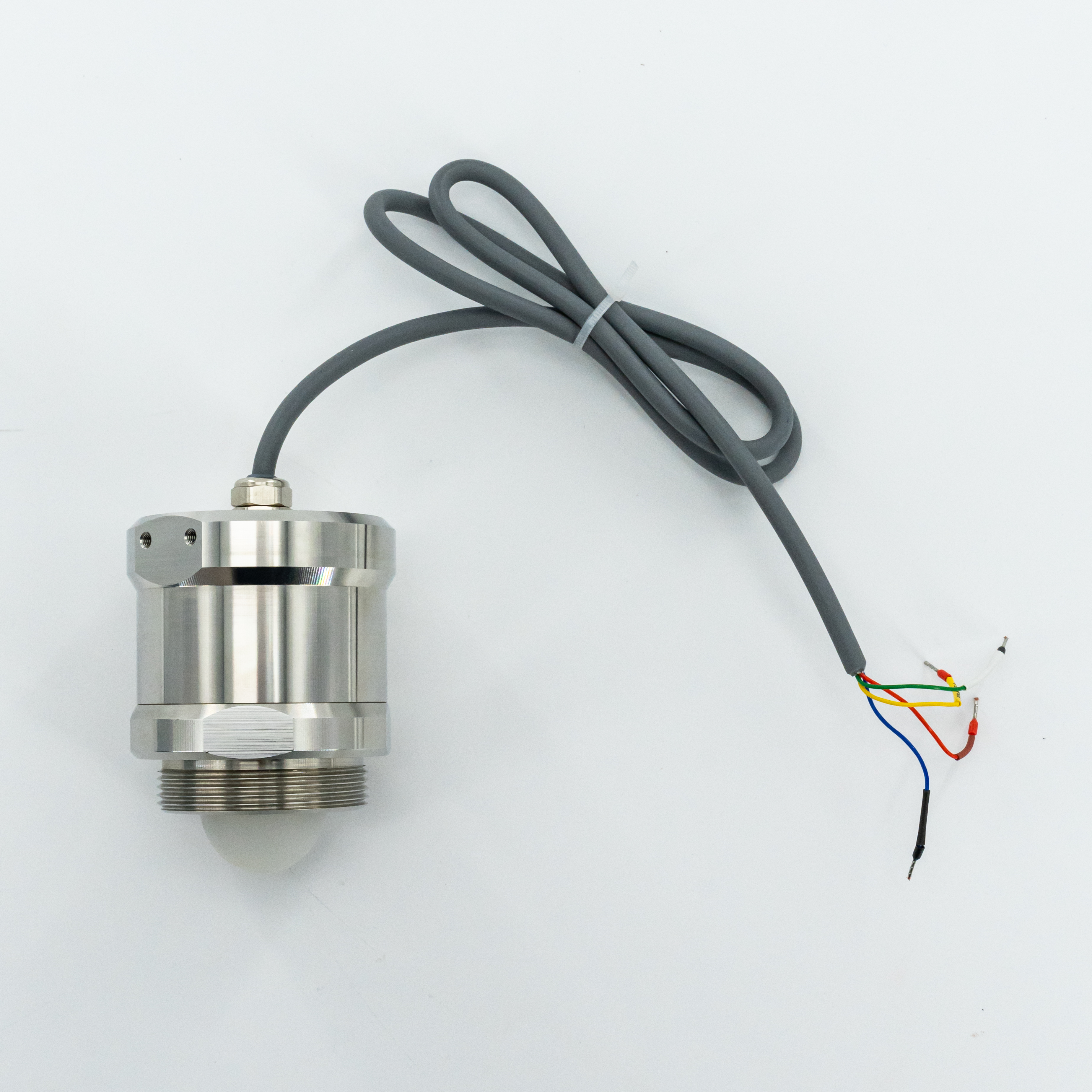

The 80GHz Radar Water Level Meter is a high-performance, non-contact liquid level measurement device designed for industrial applications. Utilizing 77-81GHz Frequency Modulated Continuous Wave (FMCW) technology, this millimeter-wave radar provides superior accuracy (±2mm), long-range detection (up to 50m), and exceptional reliability in harsh environments. Compared to traditional microwave or guided wave radars, it offers higher resolution, stronger signal penetration, and better resistance to interference from dust, smoke, or foam.
Constructed with stainless steel (SS304/SS316) housing, the device ensures corrosion resistance and long-term durability, making it suitable for water treatment, chemical processing, and industrial storage tanks. With IP67/IP68 protection, it operates reliably in extreme conditions, including high humidity (0-95% RH) and wide temperature ranges (-20°C to +70°C). The radar supports two-wire 24V DC power supply and offers multiple output options (4-20mA, Modbus, HART), ensuring seamless integration with control systems. Additionally, it features Bluetooth connectivity (via RadarMe app) for wireless configuration and monitoring, eliminating the need for a built-in display.
Thread Size: M76X2
G1.5
G2
±2mm accuracy with 77-81GHz FMCW technology
Multiple range options (10m/20m/30m/50m) for flexible application
Robust & Durable Design
Stainless steel (SS304/SS316) housing for corrosion resistance
IP67/IP68 protection for reliable operation in harsh environments
Advanced Signal Output & Connectivity
4-20mA, Modbus, and HART output options
Bluetooth-enabled (RadarMe app) for easy wireless configuration
Wide Environmental Adaptability
-20°C to +70°C operating temperature
0-95% RH humidity resistance
Easy Installation & Maintenance
Compact & lightweight (76×120mm, 0.45kg)
Multiple mounting options (M76×2, G1.5, G2 threads)
Wide Application Coverage
Ideal for water treatment, rivers, lakes, and industrial lift stations
Performs reliably in dust, foam, and high-humidity conditions
Radar Level | Two-wire |
Max range | 10m、20m、30m、50m |
Error | 2mm |
Migration/Offset | ±9.9m |
Signal output | 4～20mA / Mod-bus / HART |
Power supply | Two-wire DC 24V (22V~30V) |
Ambient temperature | -20℃～+70℃ |
Ambient humidity | （0%～95%）RH |
Protection | IP67/ IP68 |
Display | Mobile Phone APP (RadarMe) |
Weight | 0.45kgs |

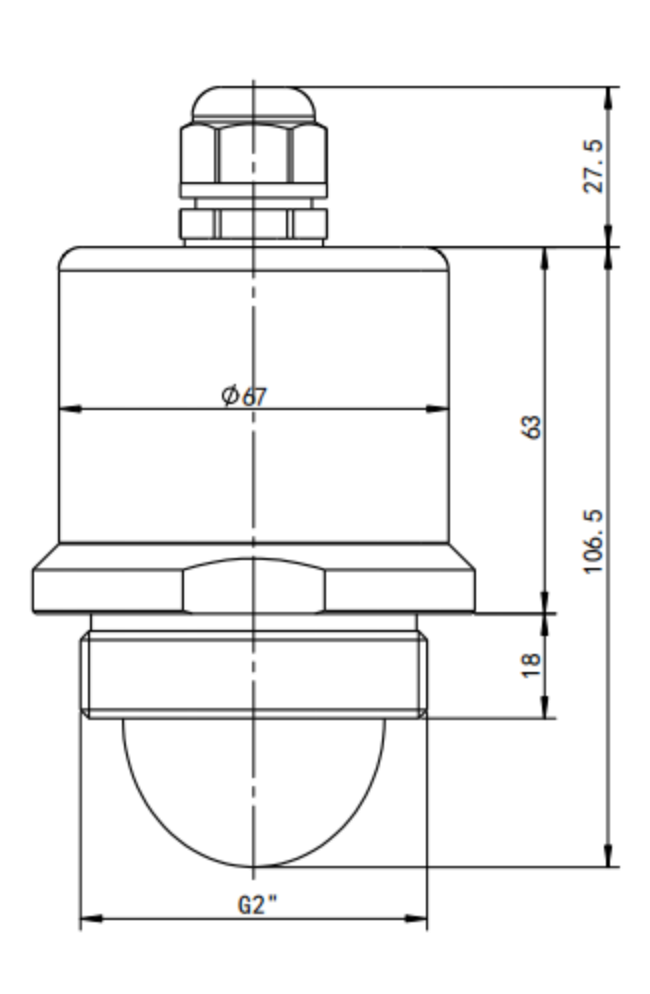

Sizes |
|

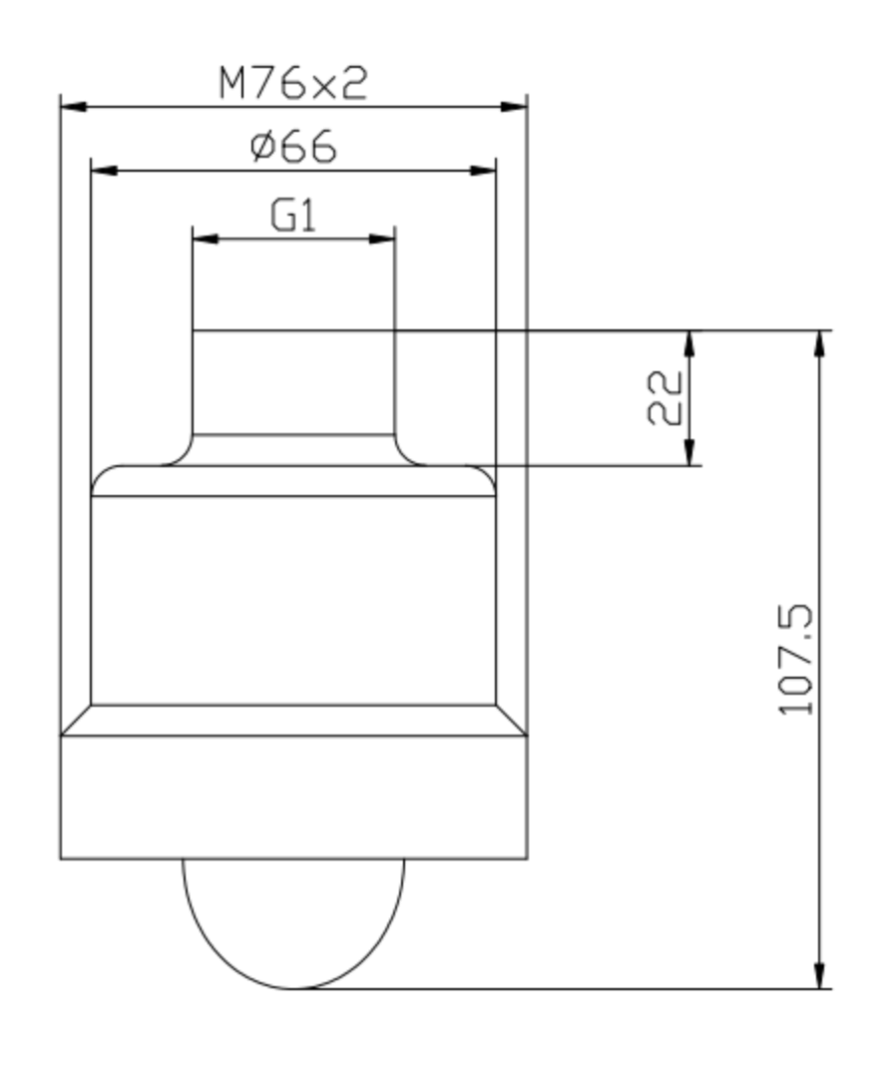

Mounting hole thread | M76X2, G1.5, G2 |
76mm×120mm
