WZPK Series
Jiangsu Jiechuang

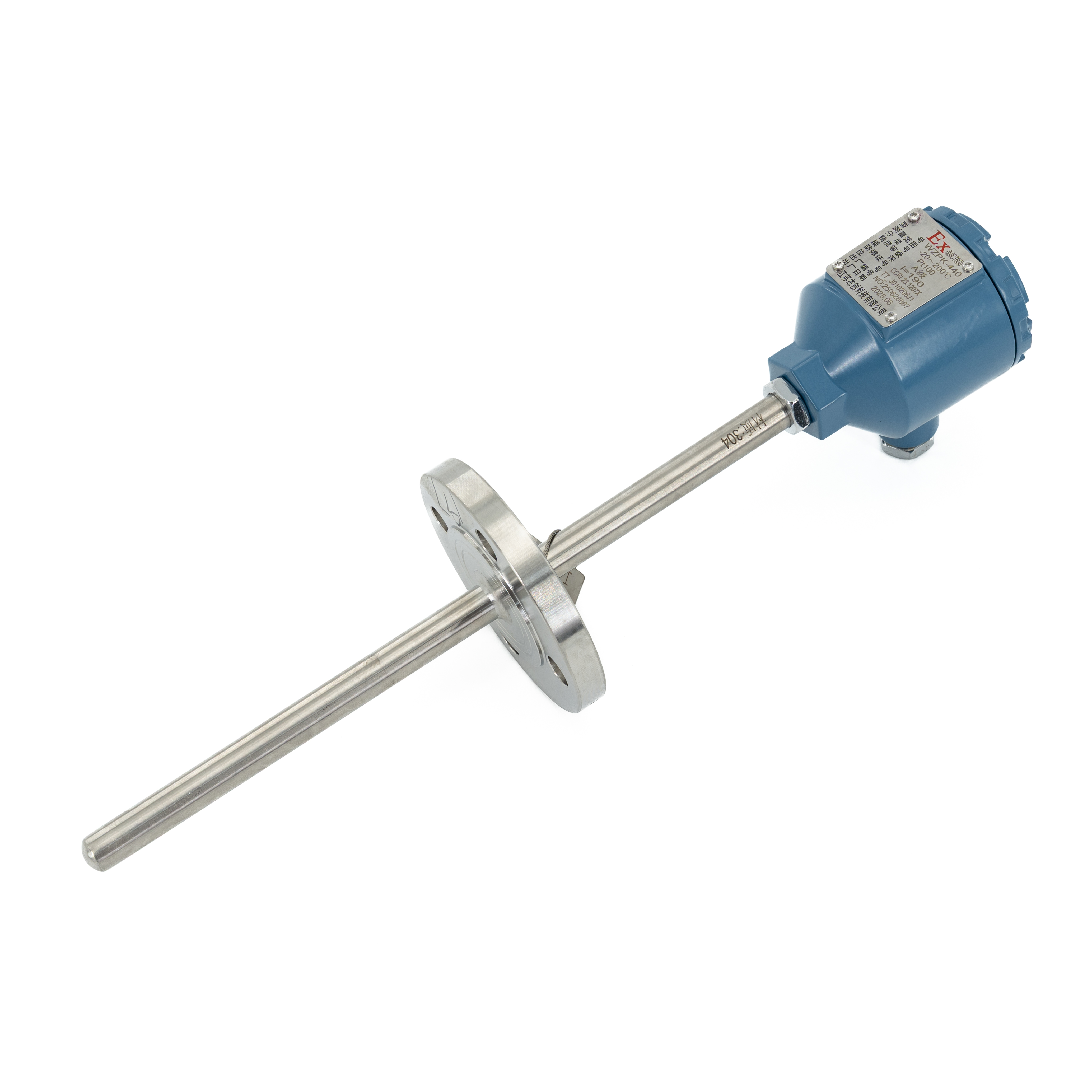

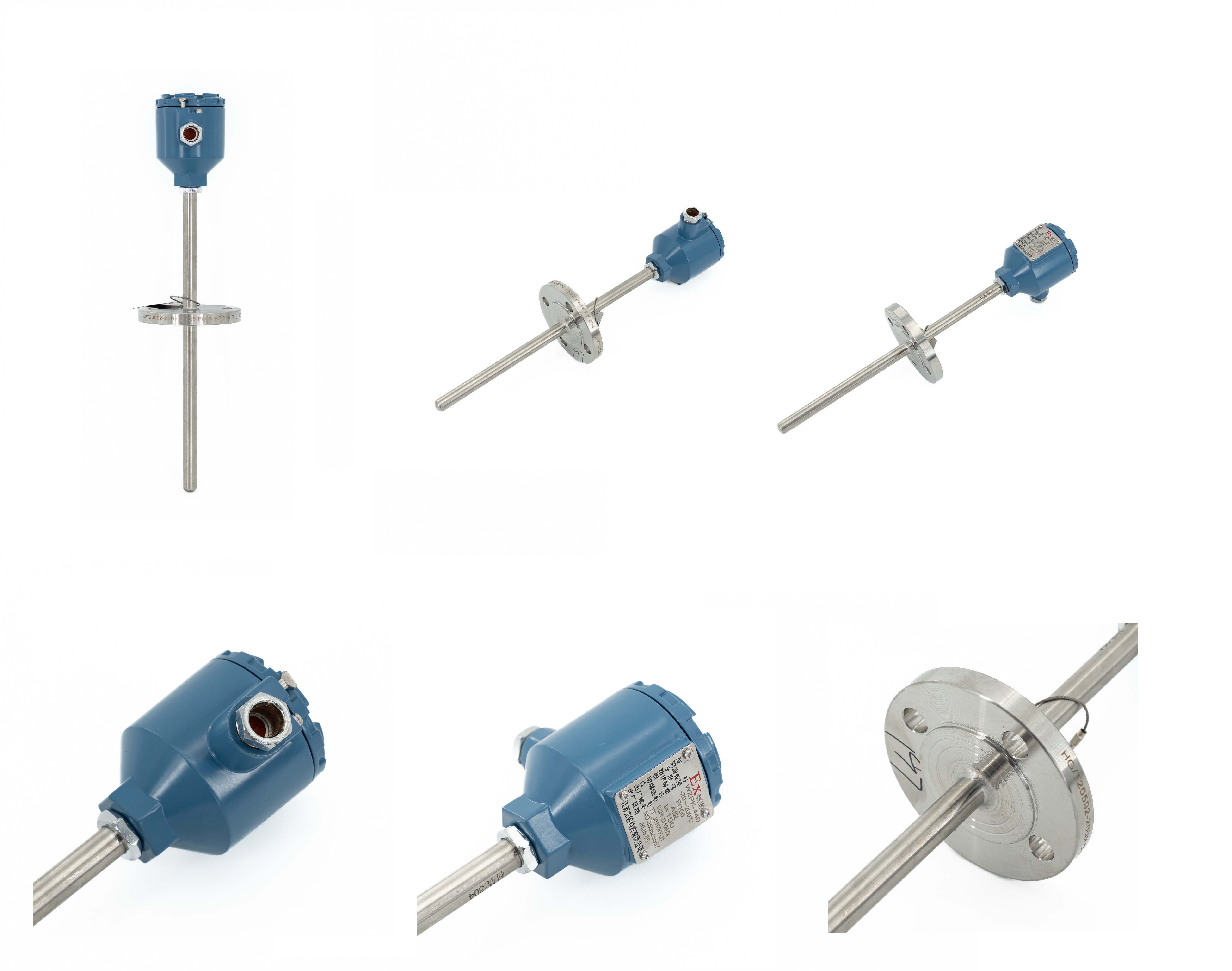

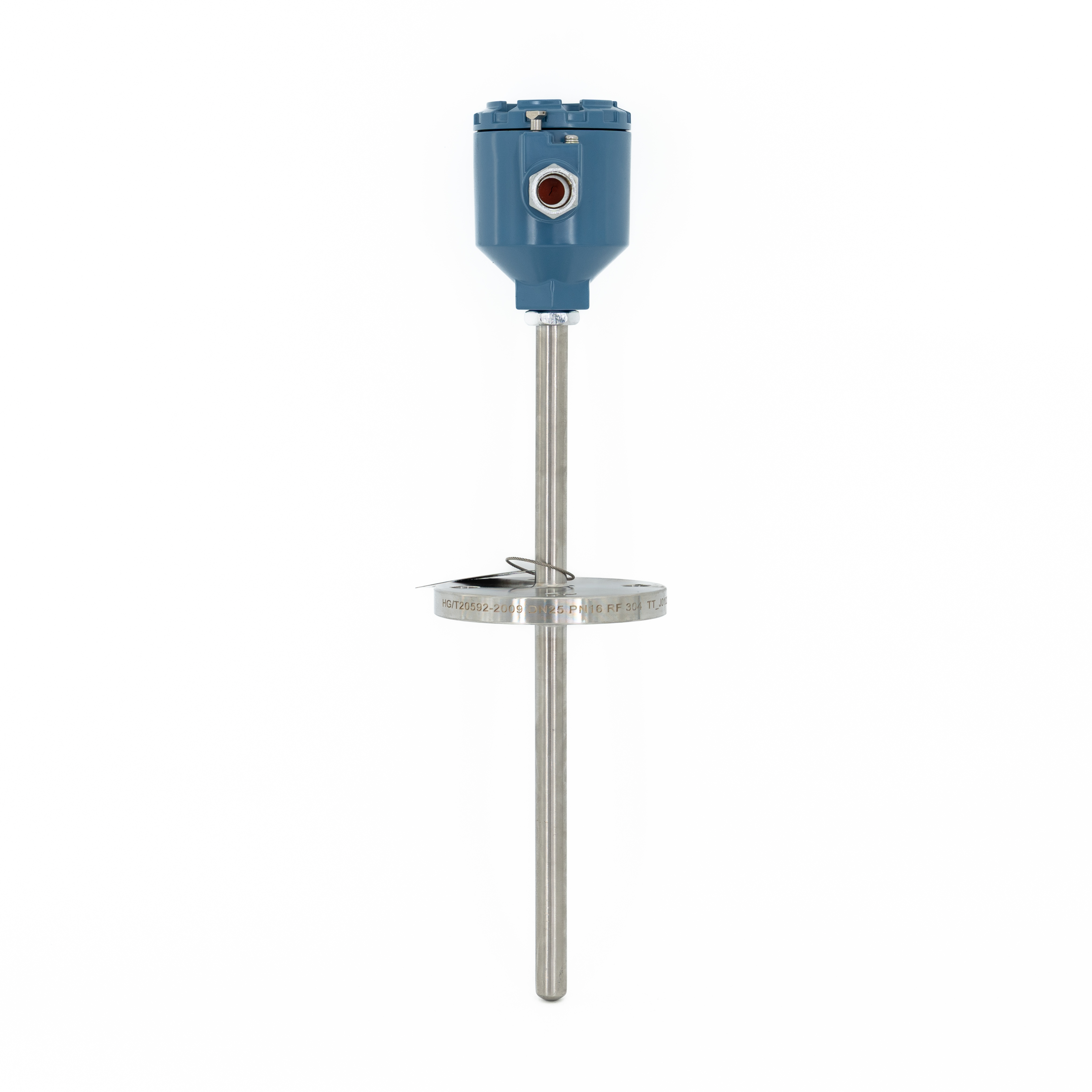

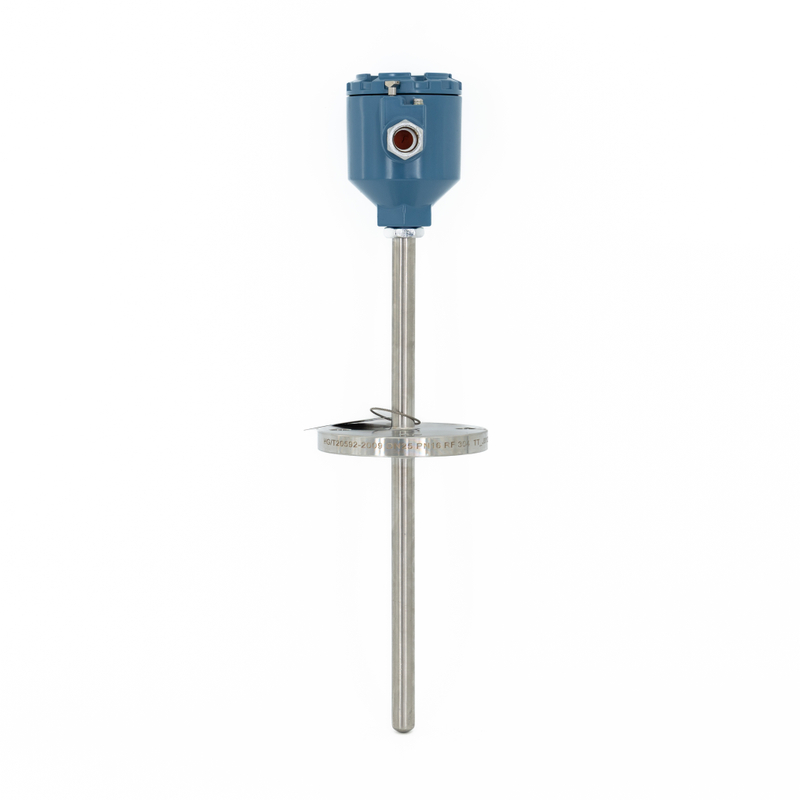

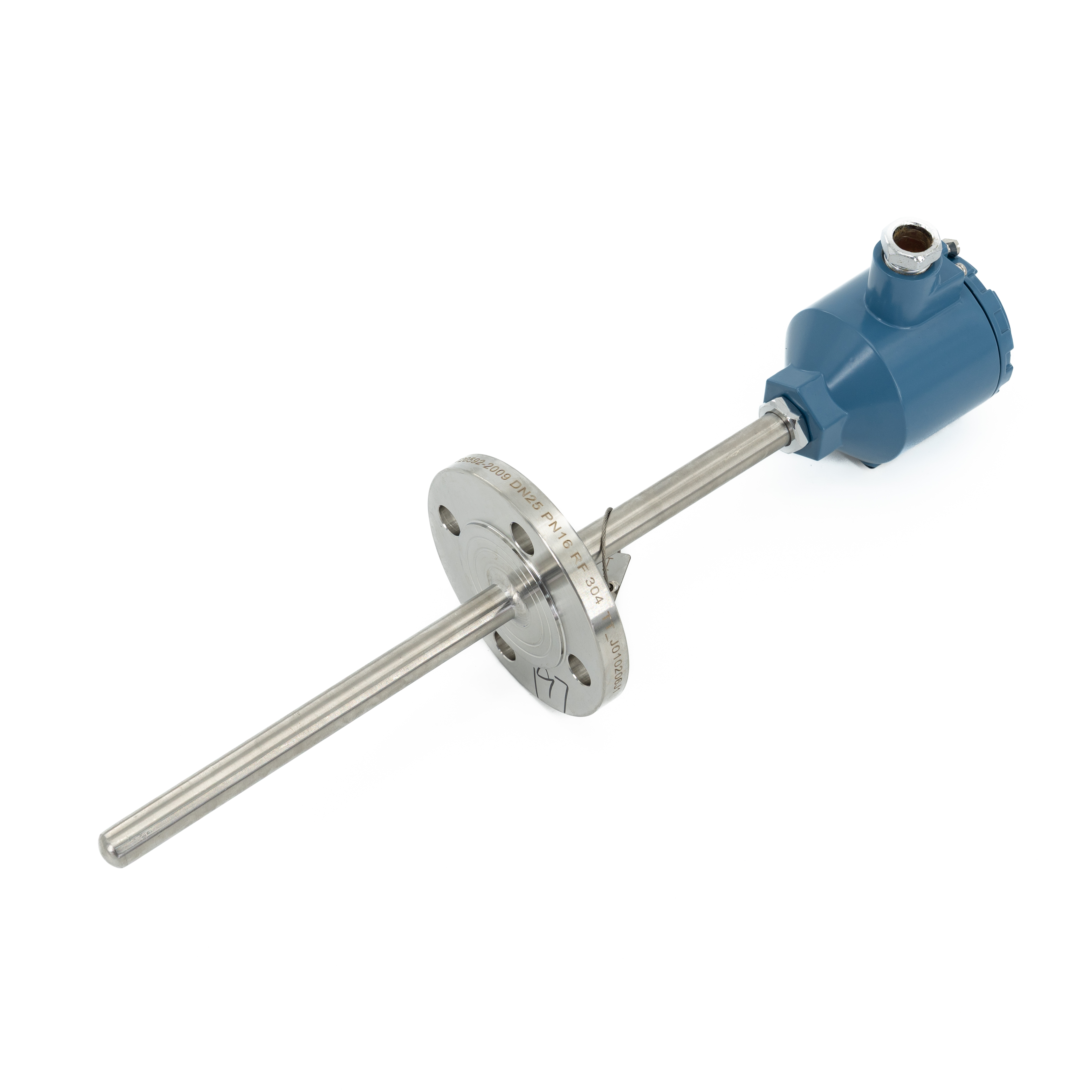

WZPK Series Explosion Proof Temperature Transmitter with Thermowell,Flange Connection
Product Overview
This is WZP series explosion proof temperature transmitter.
It uses PT100 RTD as sensing element.
It has split structure: flange thermowell and removable sheathed insert.
Built-in transmitter converts resistance signal to standard 4-20mA signal.

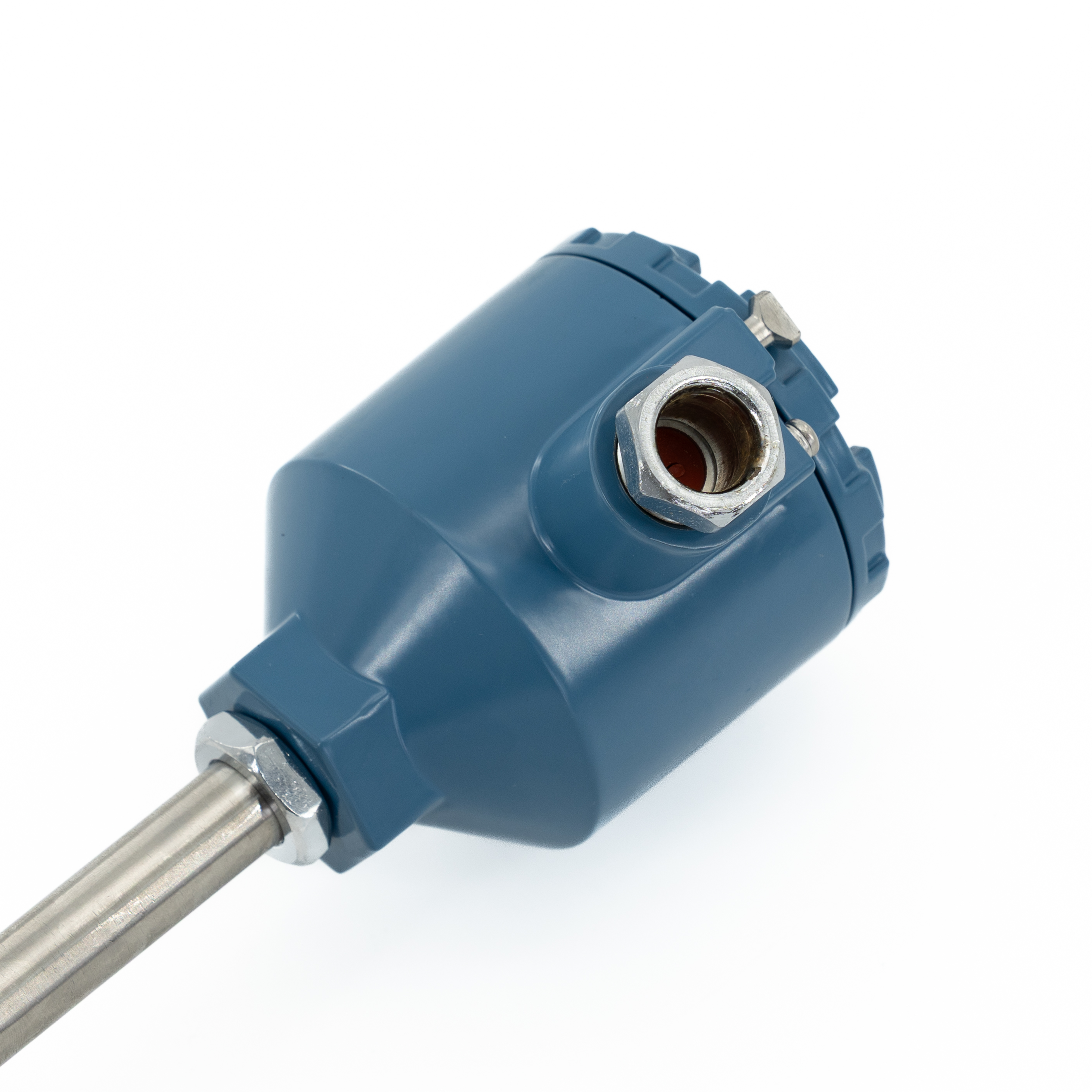

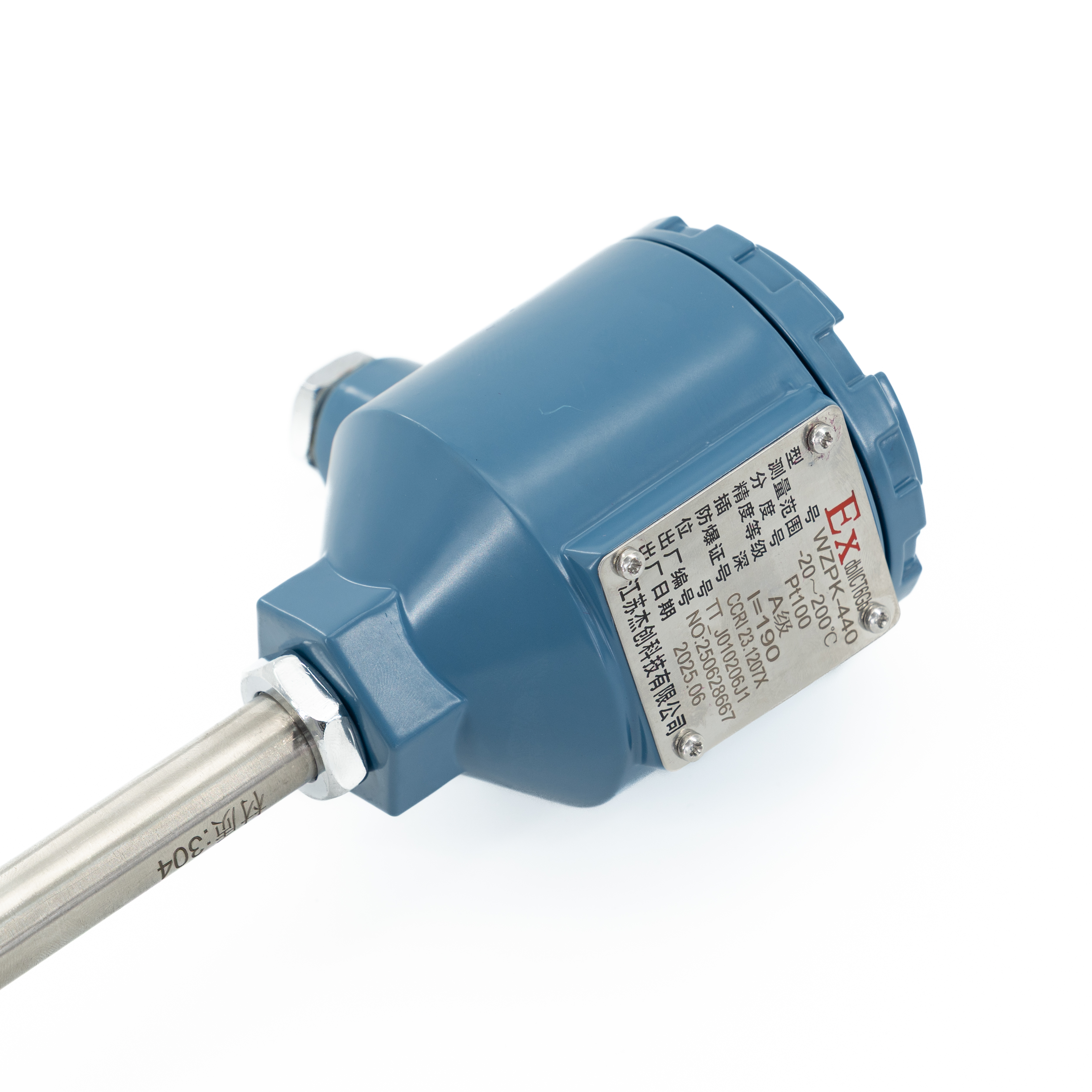

Flameproof housing fits dangerous flammable gas sites.
Thermowell stays fixed on equipment; inner probe can be pulled out for repair.
Application
It monitors medium temperature in chemical storage tanks.
It works for reaction kettle temperature measurement.
It serves pipeline temperature detection in power plants.
It is used on oil & gas processing equipment.
It fits coal chemical and pharmaceutical explosion-prone workshops.
Parameters
Item | Standard Specification |
Model | WZP Series Explosion Proof Temperature Transmitter |
Sensor Type | PT100 RTD (Class A / Class B optional) |
Output Signal | 4~20mA DC, HART available |
Measuring Range | -200℃ ~ +500℃ |
Explosion Grade | Ex d IIC BT6 |
Protection Class | IP65 |
Thermowell Material | SS304 / SS316L optional |

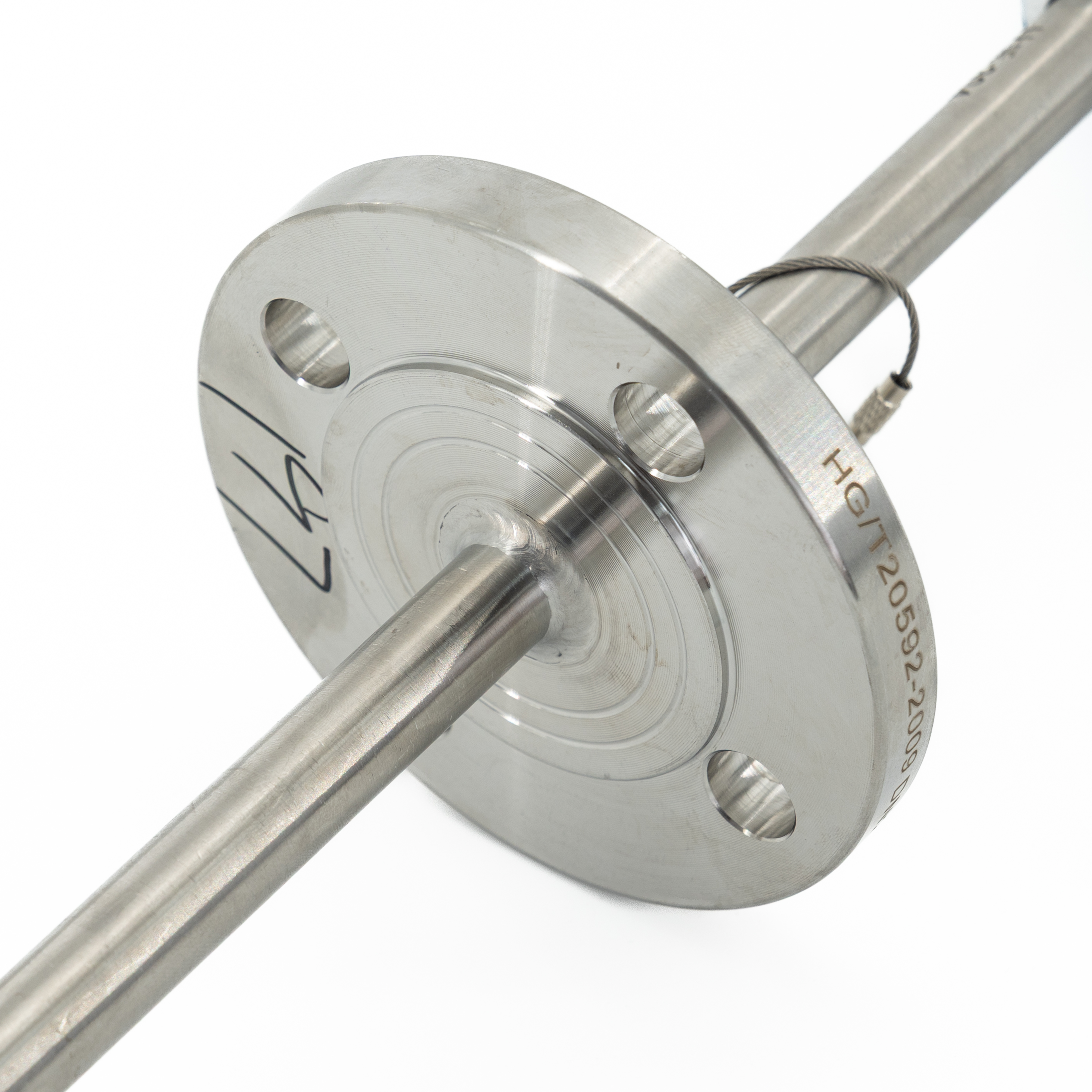

Mounting | RF Flange PN10/PN16 |
Insert Depth | 50~2000mm customizable |
Power Supply | DC24V |
Structure | Split: Fixed Thermowell + Detachable Sheathed Insert |
All parameters can be customized as required.
