Product Introduction

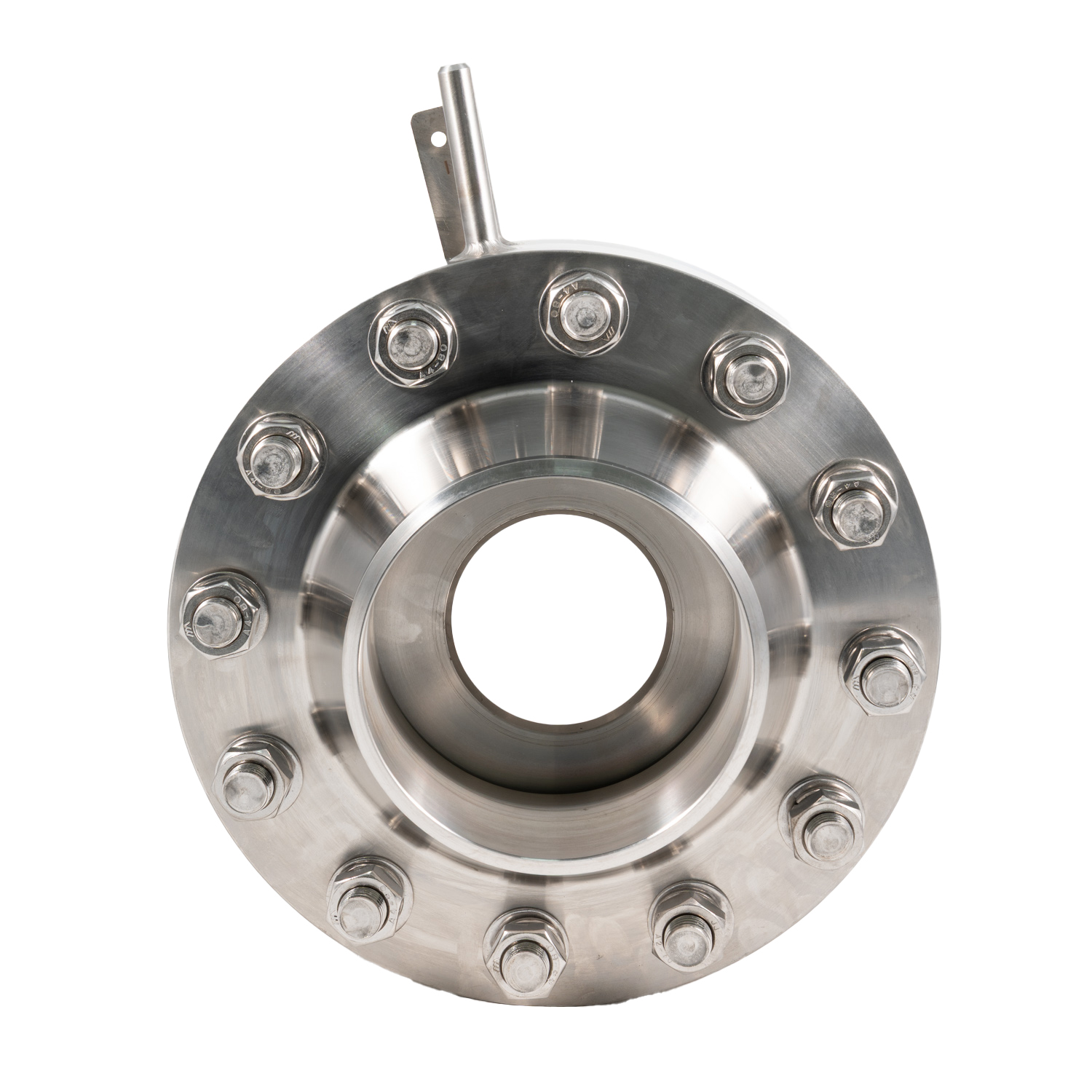

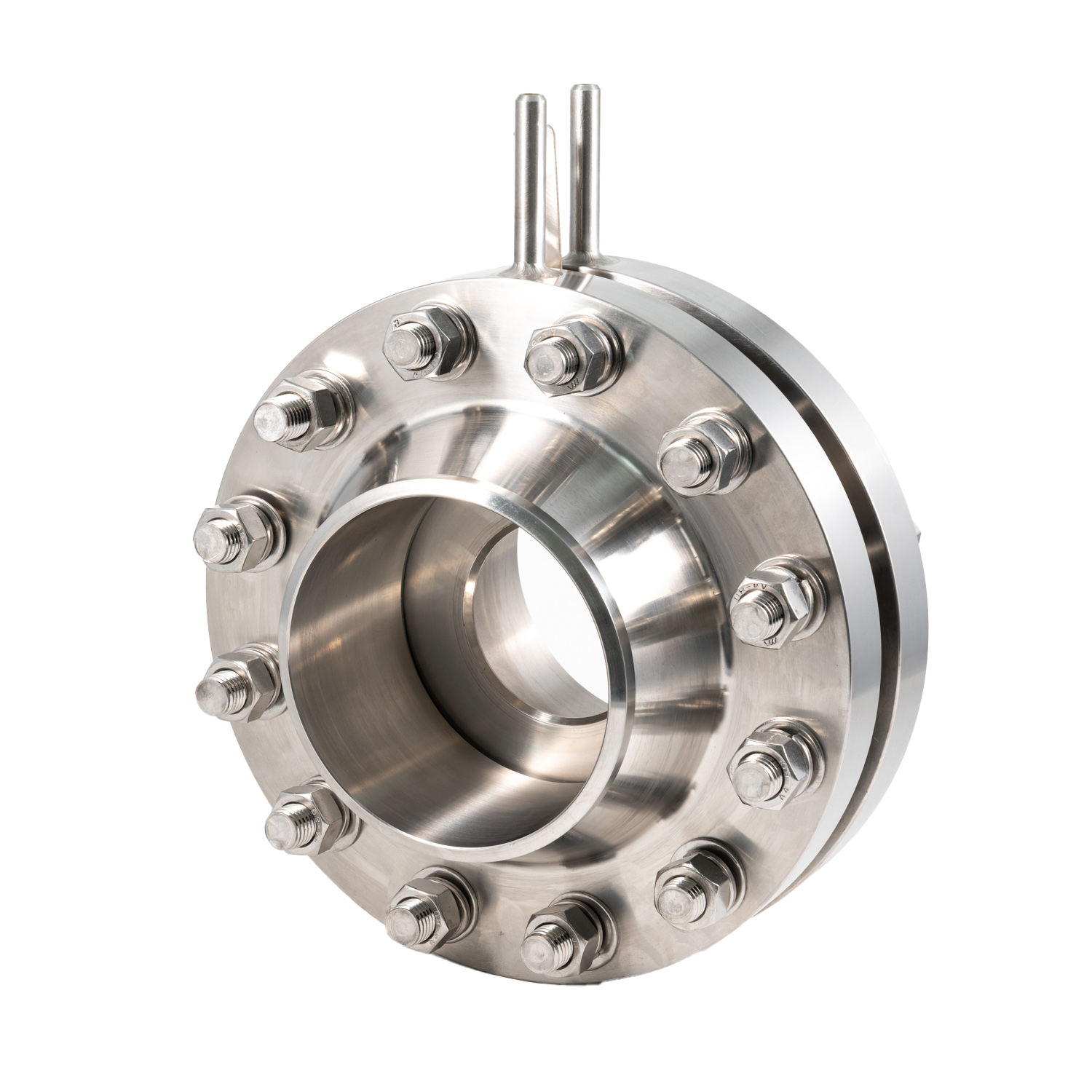

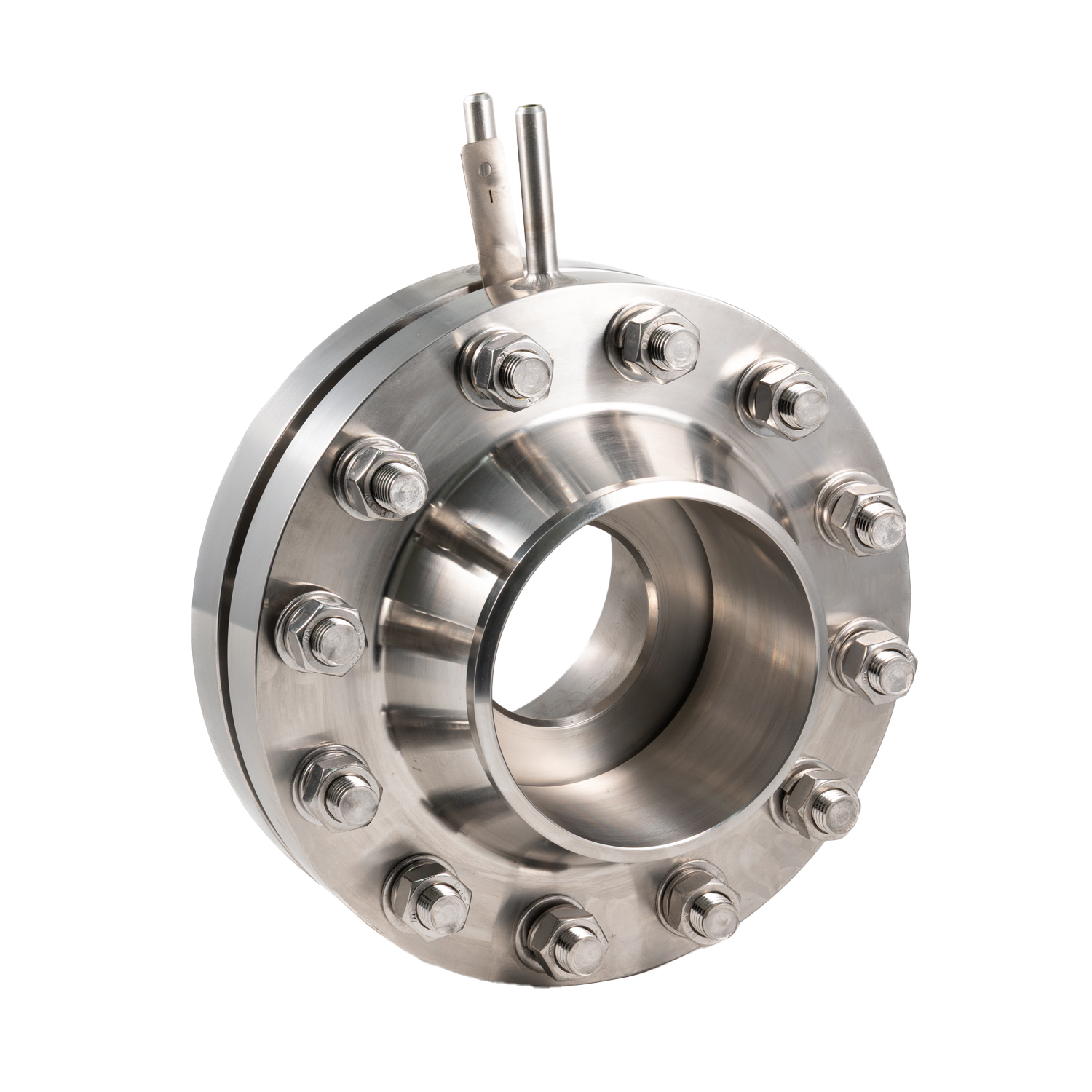

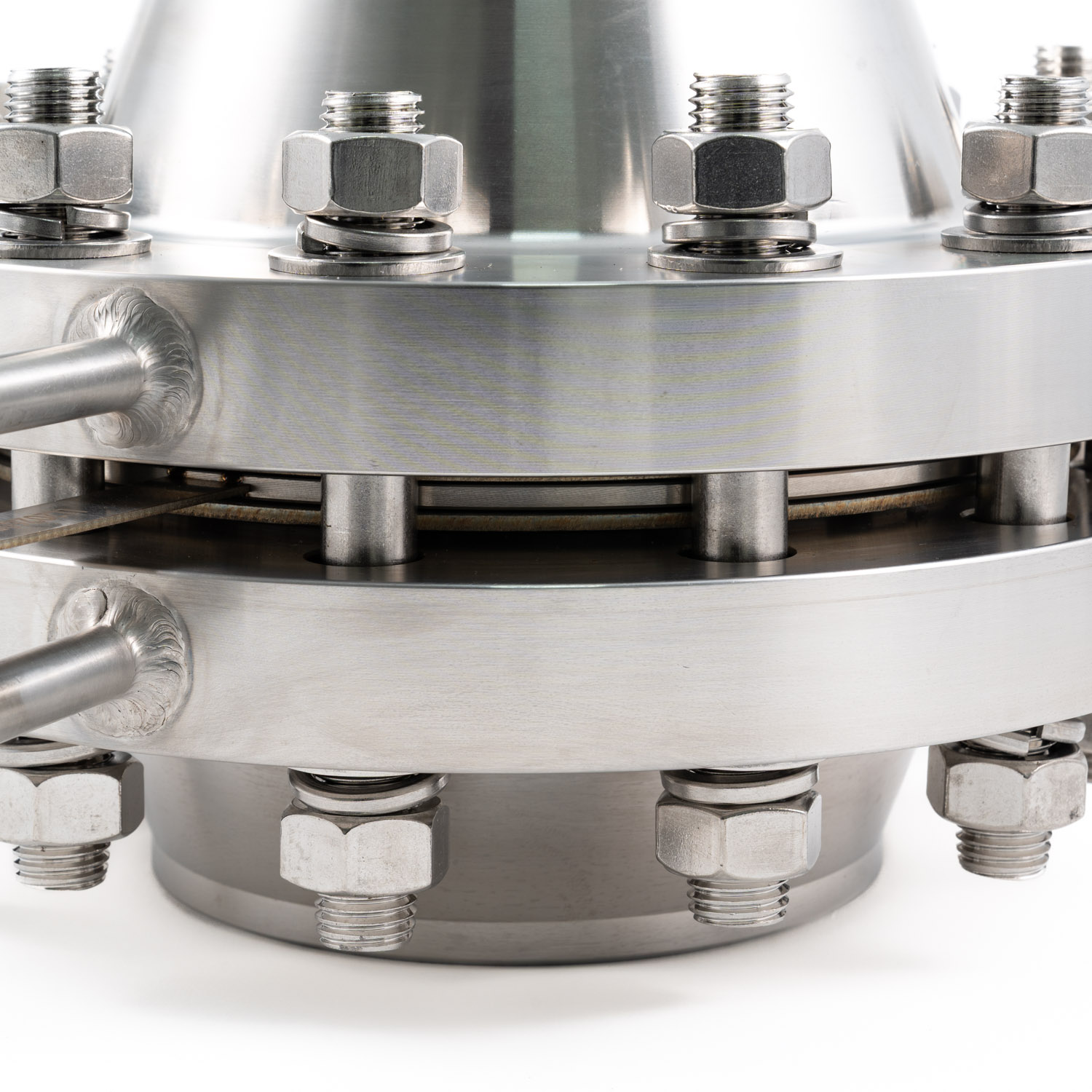

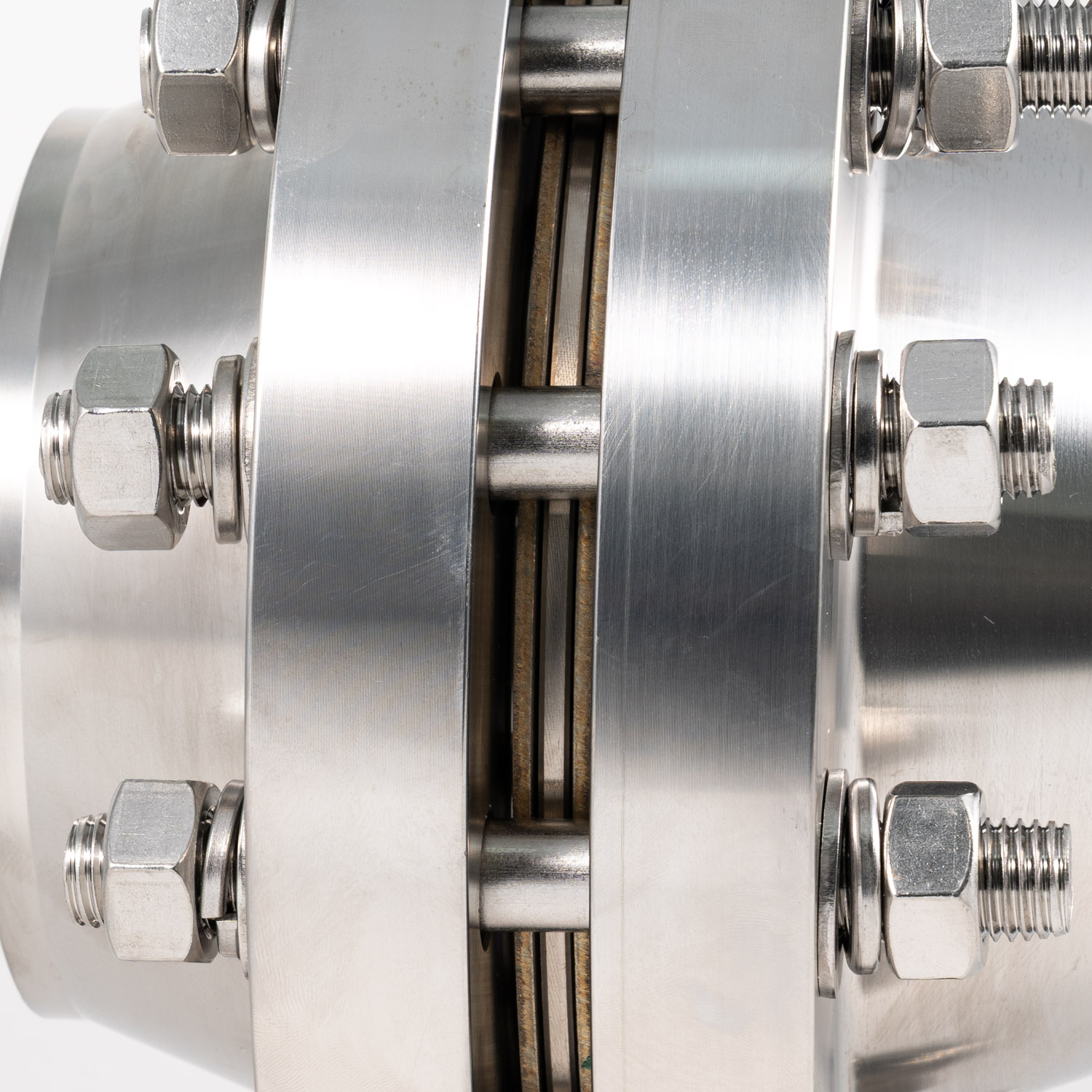

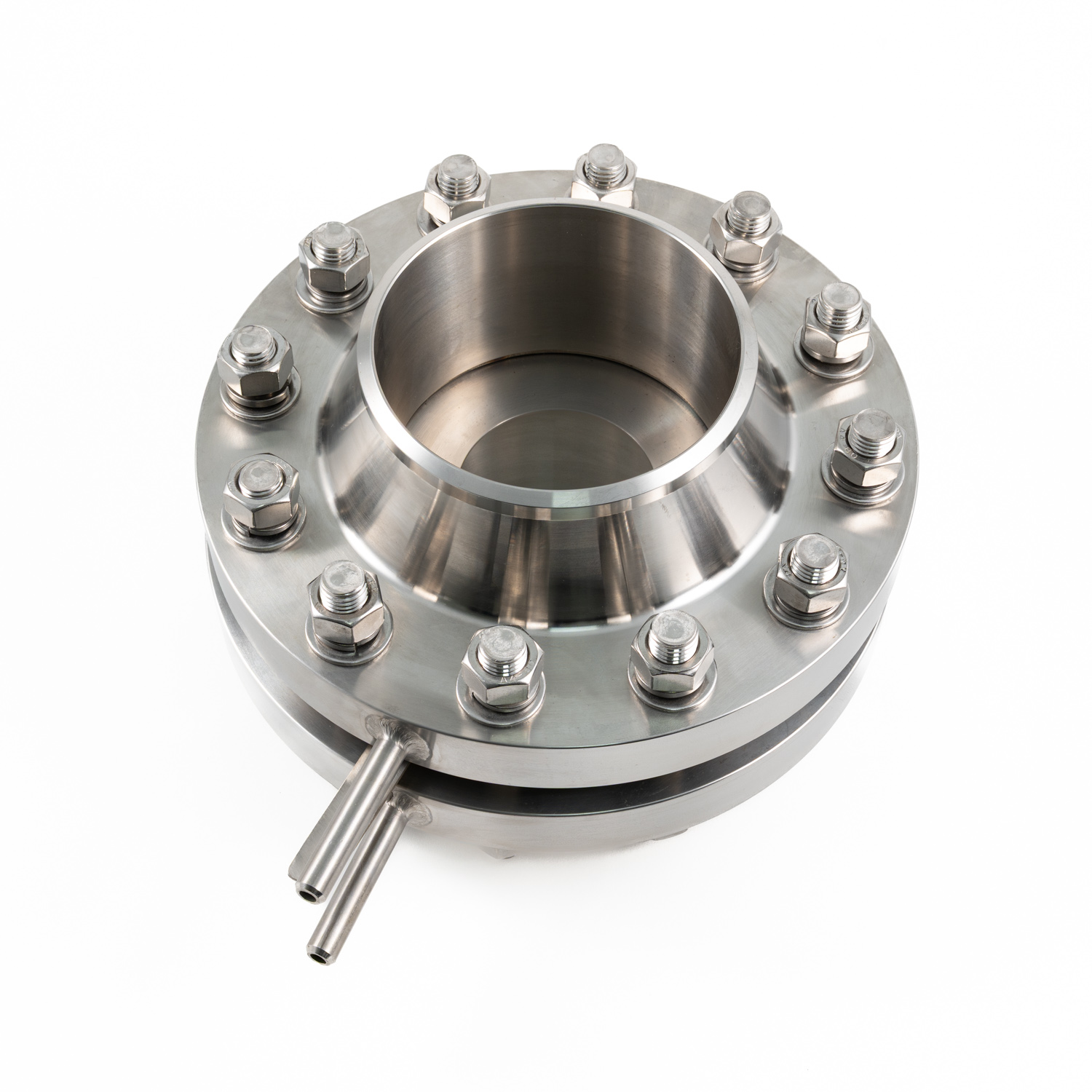

The Stainless Steel Flange Mounted Wafer Orifice Plate Throttling Device is a differential pressure flow measurement primary element used for measuring the flow rate of liquids, gases, and steam.
When the medium passes through the orifice plate, the flow velocity changes and generates a differential pressure between the upstream and downstream sides. By measuring this pressure difference with a differential pressure transmitter, the flow rate can be calculated.
This product features a compact structure, simple installation, reliable performance, and long service life. It is made of stainless steel, suitable for various industrial applications.
Applications
Widely used for flow measurement in:
Suitable measuring media:
Water
Oil
Gas
Steam
Air
Chemical liquids
Features
Stainless steel construction with excellent corrosion resistance
Differential pressure measurement principle with stable performance
Compact flange mounted design for easy installation
No moving parts, low maintenance requirement
Suitable for liquid, gas, and steam measurement
Compatible with differential pressure transmitters
Standardized design according to industrial flow measurement requirements
Customizable according to pipeline size, pressure rating, and application conditions
Technical Specifications
Item | Specification |
Product Name | Flange Mounted Orifice Plate Throttling Device |
Measuring Principle | Differential Pressure Measurement |
Type | Orifice Plate Flow Measurement Element |
Material | Stainless Steel 304 / Stainless Steel 316 / 316L |
Structure | Flange Mounted Type |
Application Medium | Liquid, Gas, Steam |
Nominal Size | DN15 ~ DN1000 (Customized) |
Pressure Rating | PN10 / PN16 / PN25 / PN40 / ANSI Class 150~600 (Customized) |
Pressure Tapping Method | Flange Tap / Corner Tap / D-D/2 Tap |
Accuracy | ±0.5% ~ ±1.5% (Depending on design conditions) |
Installation | Between Pipeline Flanges |
Connection Standard | DIN / ANSI / JIS / GB Standard |
Working Temperature | Customized according to material and application |
Working Pressure | According to flange pressure rating |
Optional Accessories | Differential Pressure Transmitter, Valve Manifold |
Note: Specifications can be customized according to customer requirements.
