stainless steel pressure gauge
Overview:
The shock resistant stainless steel vacuum gauge is designed for accurate measurement of vacuum and low pressure conditions in demanding industrial environments. The instrument adopts a fully stainless steel construction and is filled with damping liquid to reduce vibration influence, ensuring stable and reliable readings even under pulsating pressure conditions.
The gauge utilizes a high quality Bourdon tube sensing element and precision movement mechanism to provide consistent vacuum measurement performance. Its robust stainless steel housing offers excellent resistance to corrosion, mechanical stress, and harsh environmental conditions, making it suitable for long term industrial use.
With its durable construction, clear dial indication, and multiple connection options, the vacuum gauge is widely used in vacuum systems, pumps, pipelines, chemical processes, and industrial equipment where stable vacuum monitoring is required.
Key Features:

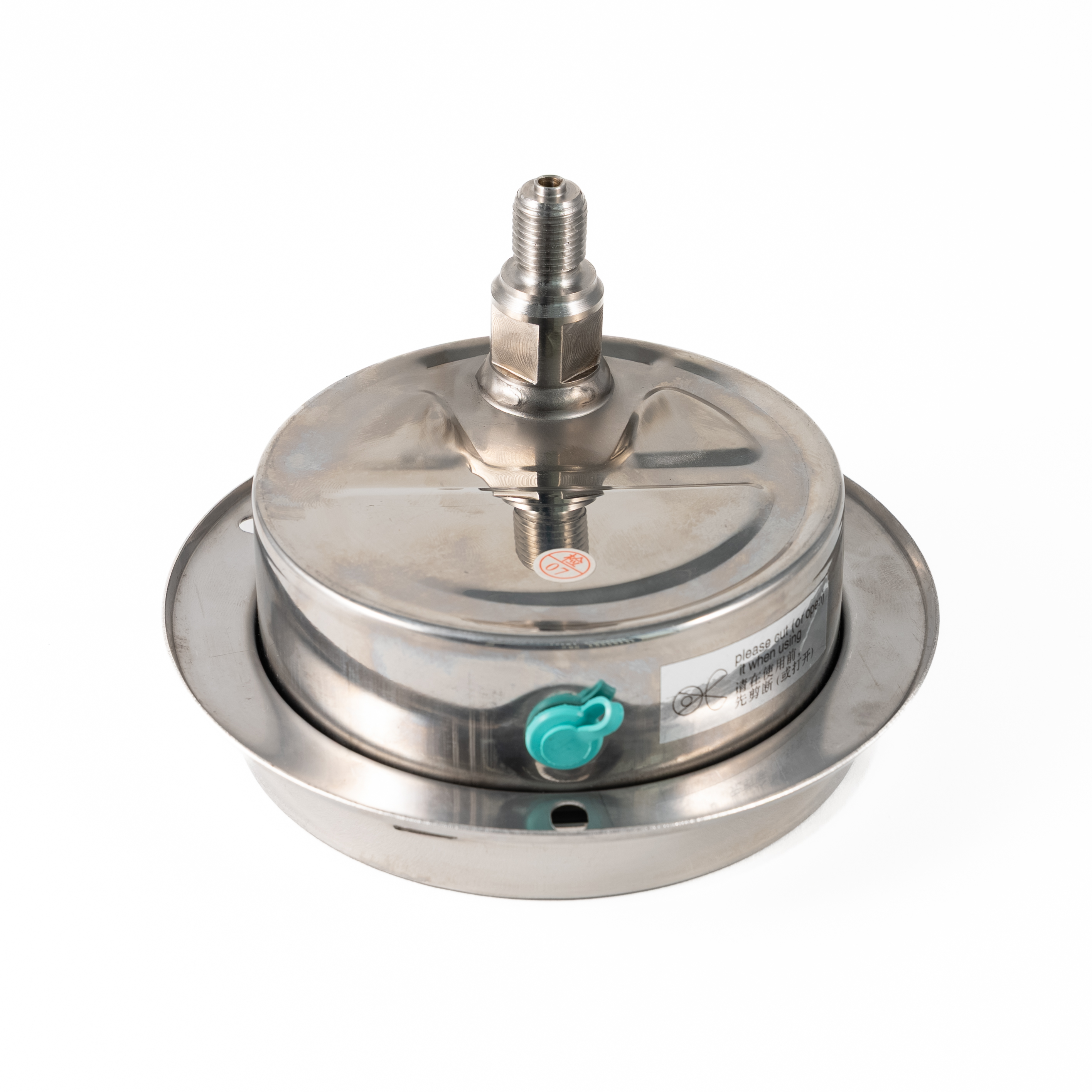

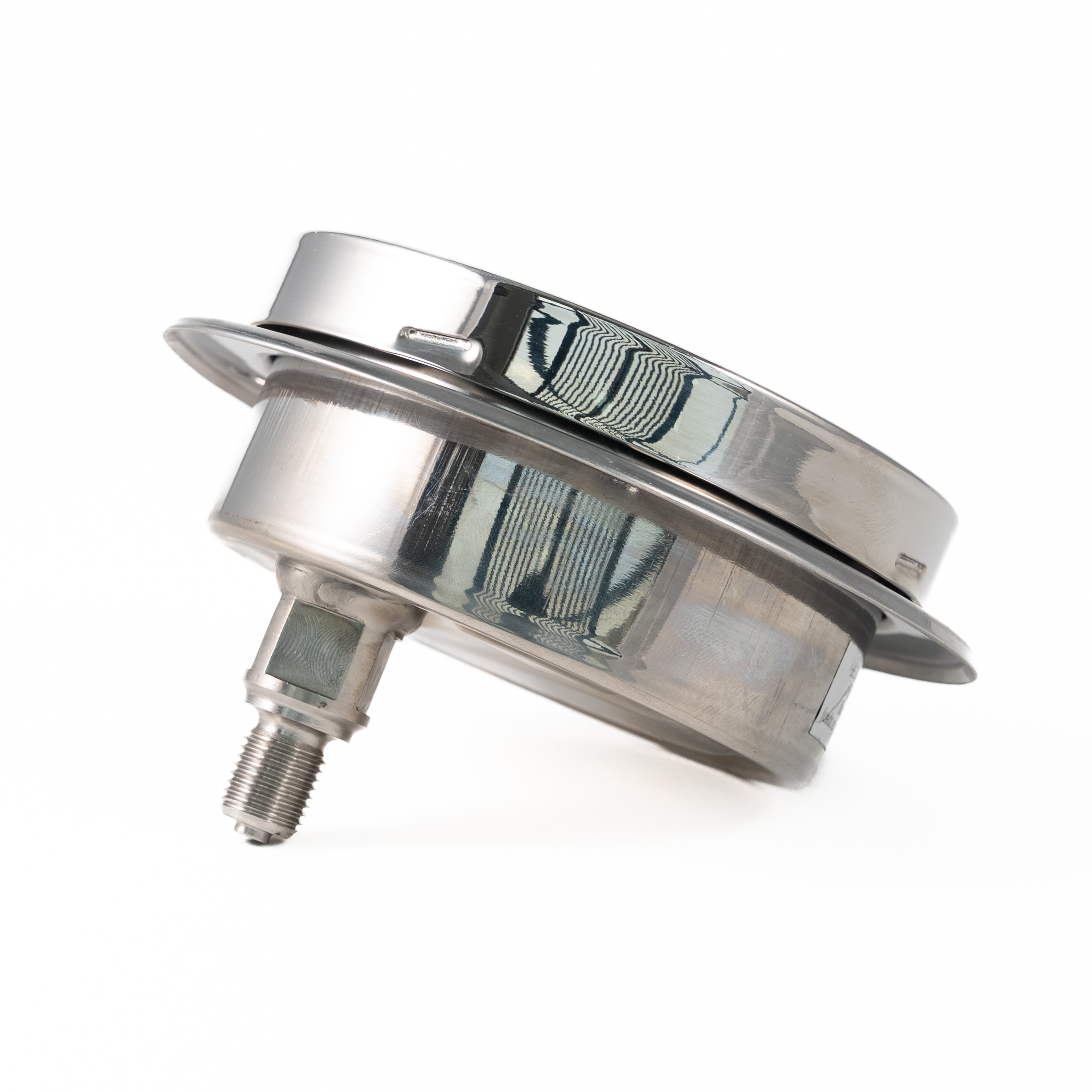

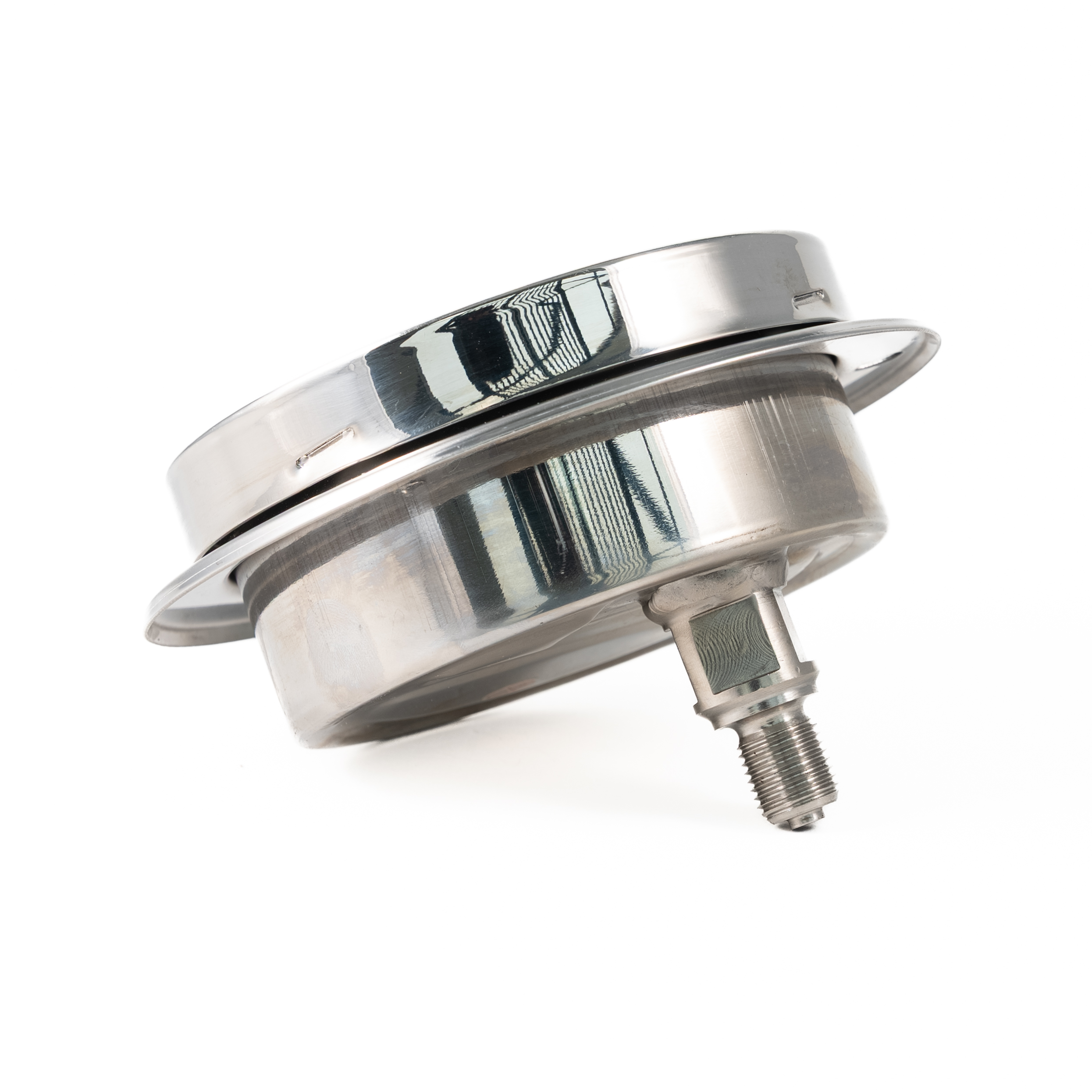

All Stainless Steel Construction
The case, wetted parts, and internal components are made of high quality SUS304 or SUS316 stainless steel, providing excellent corrosion resistance and long service life.

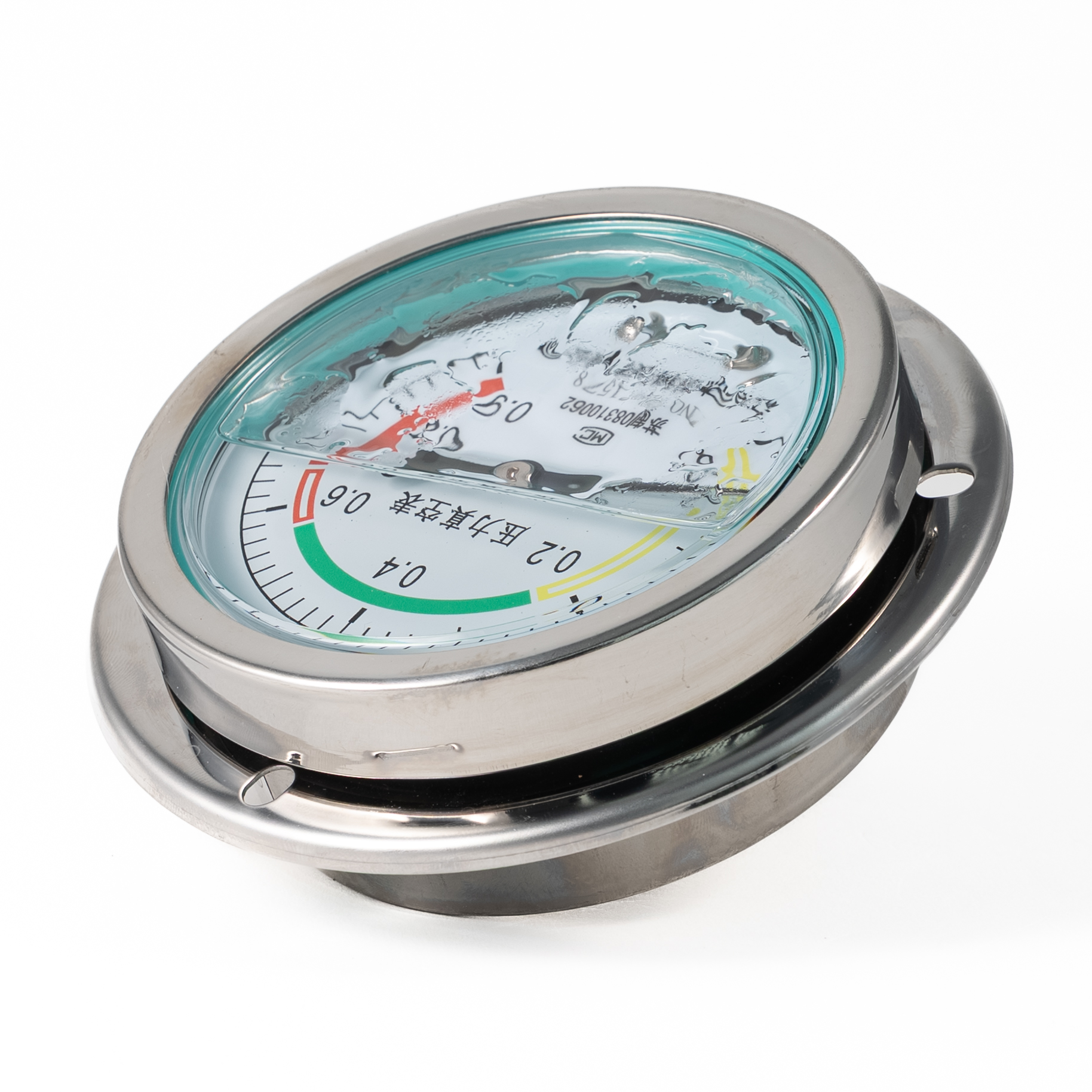

Shock Resistant Design
The gauge is filled with silicone oil damping liquid, effectively reducing the influence of vibration and pressure pulsation to maintain accurate readings.
High Precision Movement
Utilizes a precision SUS304 stainless steel movement mechanism, ensuring stable performance and reliable pressure indication.
Clear Dial Display

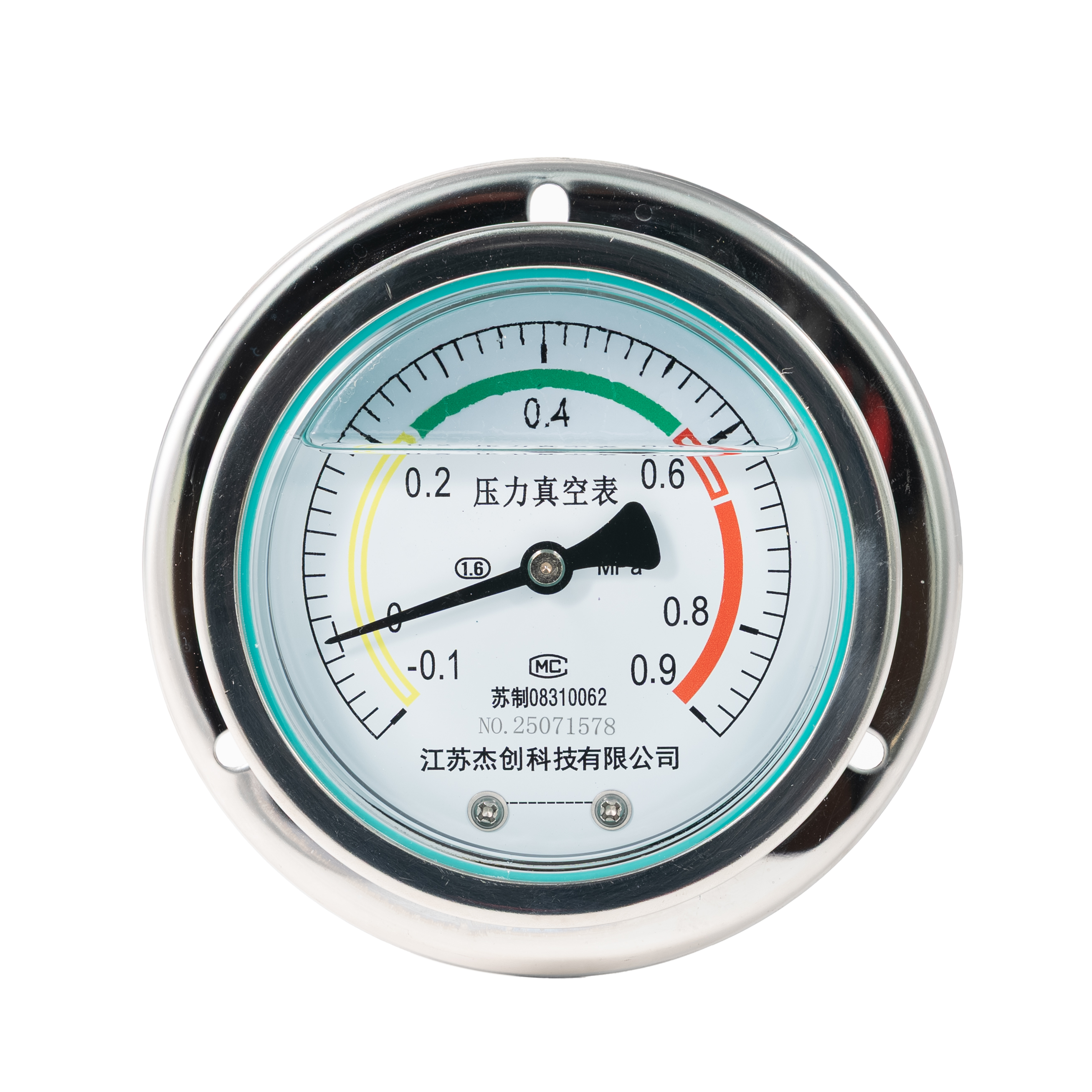

Equipped with a clear dial and transparent gauge glass for easy reading of vacuum values under various operating conditions.

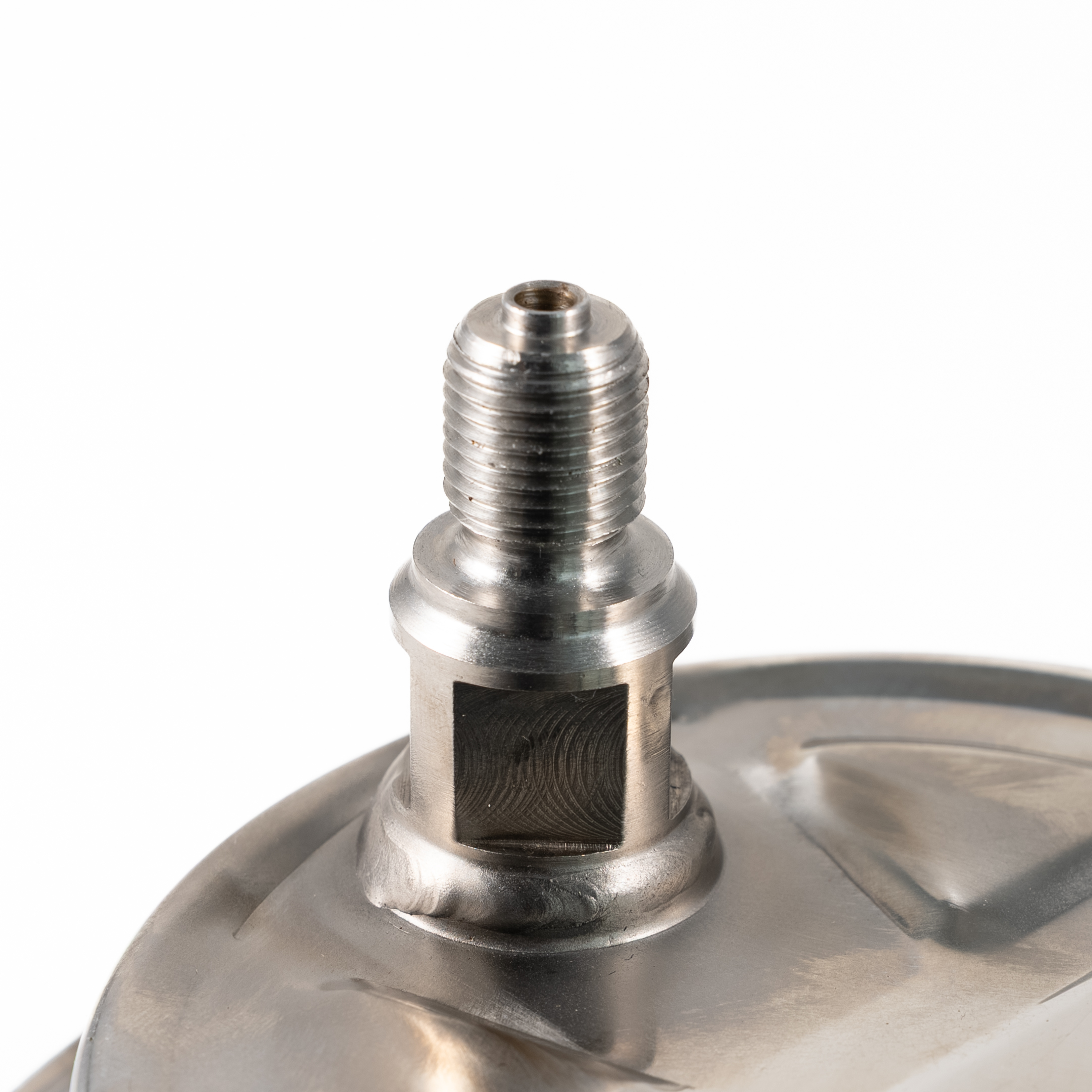

Multiple Connection Options
Available with different connection threads such as M14×1.5, M20×1.5, and 1/2 NPT, allowing flexible installation in different systems.
Wide Operating Conditions
Suitable for operating temperatures from -35°C to +70°C and relative humidity up to 85%, ensuring reliable operation in industrial environments.
Nominal Diameter | φ60mm, φ100mm, φ150mm |
Bourdon Tube Material | Tin-phosphor bronze tube, SUS304, SUS316L |
Connector Material | Copper Alloy, SUS304, SUS316L |
Movement Material | Copper Alloy, SUS304 |
Case Material | Iron shell with black plastic spray, SUS304 |
Gauge Glass | Organic glass |
Control Method | Upper and lower limits, (double upper, double lower) contact gold-plated contact switch. |
Operating Temperature | -35~+70℃, with a relative humidity not exceeding 85% (operating at near minimum temperature can affect normal operation) |
Connection Thread | M14×1.5, M20×1.5, (NPT)1/2 |
Welding Method | Argon Arc Welding |
Shock-Resistant Type | Filled with silicone oil |
Application | Suitable for measuring the pressure of gases or liquids that are corrosive to both the medium and the surrounding environment, and used in locations with pulsating loads and vibrations. |
Y - TN - □ □ □ B - Z T
Pressure Gauge Shock-Resistant Nominal Diameter SS Belt Edge |
Model | Measurement Range (MPa) | Accuracy Class (%) | Thread Connection |
YTN-60B (Z T) | 0~(0.1/0.16/0.25/0.4/0.6/1/1.6/2.5/4/6/10/16/25/40/60)
-0.1~(0.15/0.3/0.5/0.9/2.4) | 2.5 | M14*1.5 |
YTN-100B(Z T)
YTN-150B(Z T) | 0~(0.1/0.16/0.25/0.4/0.6/1/1.6/2.5/4/6/10/16/25/40/60/100)
-0.1~(0/0.15/0.3/0.5/0.9/2.4/3.9) | 1.6 | M20*1.5 |
YTN-200B
YTN-250B | 0~(0.25/0.4/0.6/1/1.6/2.5/4/6/10/16/25/40/60)
-0.1~(0.15/0.3/0.5/0.9/2.4) | 1.6 | M20*1.5 |
