Pressure measurement is essential in industrial systems. It helps operators monitor pumps, pipelines, compressors, tanks, and other process equipment.
You may have seen a mechanical pressure gauge installed next to a pressure transmitter on the same pipeline. Why are both needed when they measure the same pressure?
The answer is simple: a pressure gauge shows pressure locally, while a pressure transmitter sends pressure data to a control or monitoring system.
Both instruments are useful, but they serve different purposes. Understanding the difference helps you choose the right instrument for your application.

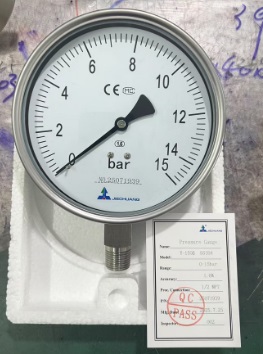

A pressure gauge measures and displays pressure directly at the installation point. Conventional mechanical pressure gauges do not require an external power supply.
A typical mechanical pressure gauge uses a sensing element, such as a Bourdon tube. When pressure changes, the sensing element deforms slightly. A mechanical linkage moves the pointer across a calibrated dial to show the pressure reading.
Direct reading: Operators can check pressure in the field.
No external power required: Conventional mechanical models work without an electrical supply.
Simple operation: The dial is easy to read during inspections and maintenance.
Flexible options: Different pressure ranges, dial sizes, connections, and materials are available.
Pressure gauges are widely used in pump outlets, air compressors, hydraulic systems, storage tanks, and industrial pipelines.
For applications involving vibration, pressure pulsation, high temperatures, or corrosive media, a suitable gauge design and installation arrangement should be selected.
Main limitation: A conventional mechanical pressure gauge provides a local reading. It does not automatically send continuous pressure data to a control room.
A pressure transmitter measures process pressure and converts it into an electrical signal for remote monitoring and process control.
A common industrial output is 4–20 mA. Depending on the model, HART communication or other output options may also be available.
A pressure transmitter uses a pressure sensor to detect changes in the process pressure. Its electronic circuit converts the sensor response into a calibrated output signal.
The signal can then be sent to a compatible PLC, DCS, digital indicator, or monitoring system.
For example, a pressure transmitter with a measuring range of 0–1.0 MPa may use the following linear output relationship:
Measured Pressure | Output Signal |
|---|---|
0 MPa | 4 mA |
0.5 MPa | 12 mA |
1.0 MPa | 20 mA |
The receiving system converts the signal into a pressure value, allowing operators to monitor pressure remotely.
Remote monitoring: Pressure can be viewed from a control room.
Continuous measurement: Changes in pressure can be monitored over time.
Data recording: Compatible systems can record pressure trends.
Automation integration: The signal can support process monitoring, alarms, and control.
Flexible communication: Depending on the model, 4–20 mA, HART, or other outputs may be available.
Pressure transmitters are widely used in chemical plants, water treatment systems, industrial pipelines, pump and compressor monitoring, and automated production lines.
Main limitation: Electronic pressure transmitters generally require a suitable power supply and compatible receiving equipment. Correct wiring, signal configuration, and commissioning are also important.
Both instruments measure pressure, but the main difference is how the measurement is displayed and used.
Feature | Pressure Gauge | Pressure Transmitter |
|---|---|---|
Main function | Local pressure indication | Remote pressure monitoring |
Typical output | Dial reading | 4–20 mA or other supported signals |
External power | Not required for conventional mechanical models | Usually required for electronic models |
Remote monitoring | Not available from a standard mechanical gauge alone | Available with a compatible system |
Data recording | Requires a separate method | Supported by a compatible monitoring system |
PLC/DCS integration | Not directly available from a conventional mechanical gauge | Supported through compatible outputs |
Main advantage | Simple field inspection | Continuous data and automation integration |
In short, a pressure gauge is designed primarily for local reading, while a pressure transmitter is designed to send measurement data to another system.
Some digital pressure gauges require power, and some pressure transmitters include a local display. The exact features depend on the model.

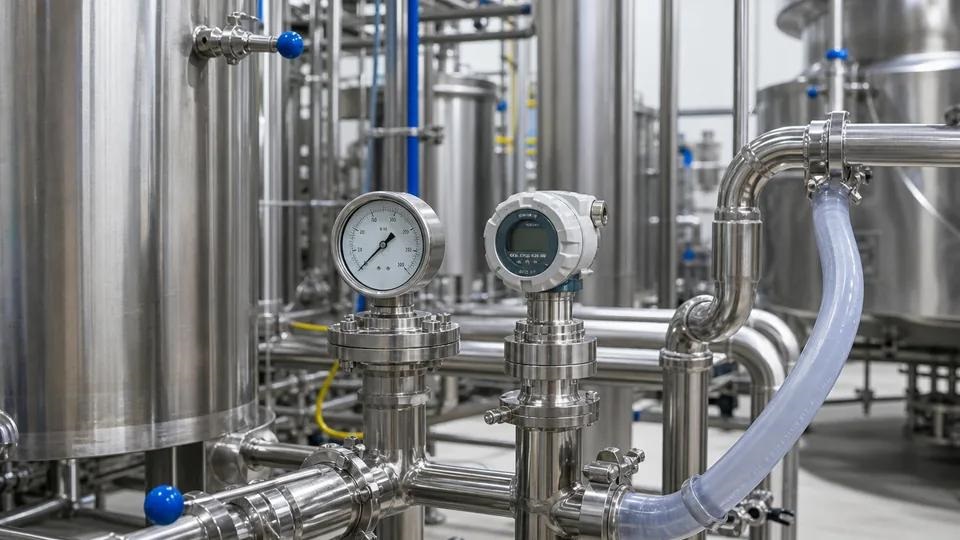

If a pressure transmitter already sends data to the control room, why install a pressure gauge on the same pipeline?
Because local indication and remote monitoring serve different needs.
A pressure gauge allows operators and maintenance personnel to check the pressure directly at the equipment.
This is useful during startup, shutdown, routine inspections, and maintenance.
A pressure transmitter sends pressure data to a compatible control system. Operators can monitor the process remotely, review trends, and use the measurement in suitable control strategies.
Consider this example:
The local pressure gauge reads approximately 0.6 MPa.
The DCS displays only 0.2 MPa.
This difference suggests that further investigation is needed. Possible causes include a transmitter problem, incorrect configuration, wiring issues, a signal-loop fault, or a problem with the process connection.
If both instruments read approximately 0.2 MPa, their readings are consistent, but this does not necessarily confirm the actual process pressure. The process pressure may have changed, but instrument faults or a common pressure connection problem cannot be ruled out.
Comparing readings helps technicians narrow down possible causes, but it does not prove which instrument is correct. Calibration and further testing may be required.
Using both instruments can therefore provide a useful local reference alongside remote measurement data. However, installing both does not automatically create an independent or redundant safety system.

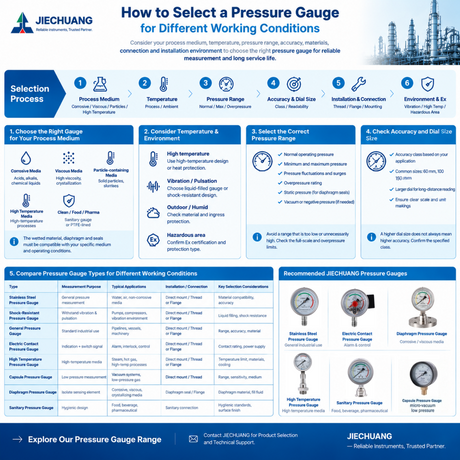

Choosing the right instrument involves more than selecting a pressure range. Consider the following factors before ordering.
Confirm the normal operating pressure, minimum and maximum expected pressure, and foreseeable pressure surges.
Avoid selecting a range that is unnecessarily large, as this can make small pressure changes harder to read or use effectively.
Identify whether the medium is water, oil, gas, steam, a chemical, or another substance.
Check the compatibility of all wetted parts. Corrosive or viscous media may require special materials or a diaphragm seal.
High-temperature media may require a suitable installation arrangement, cooling solution, or diaphragm seal, depending on the instrument and application.
Confirm that the instrument is suitable for the actual process and ambient temperatures.
Pumps and reciprocating compressors may produce vibration or rapidly changing pressure.
A liquid-filled pressure gauge can help damp pointer oscillation. Additional damping or other application-specific measures may also be necessary.
Confirm the connection type and size, such as M20×1.5, G1/2, 1/2 NPT, or a suitable flange connection.
The connection, pressure rating, and sealing arrangement must match the installation.
For a pressure transmitter, confirm the power supply, output signal, and communication requirements.
If the transmitter will connect to a PLC or DCS, make sure its output is compatible with the receiving system and correctly configured for the measuring range.
Consider moisture, dust, ambient temperature, vibration, and installation location.
For hazardous-area installations, verify that the selected instrument has the required certification and is suitable for the intended application.
A pressure gauge provides a simple local reading, while a pressure transmitter sends measurement data to a compatible monitoring or control system.
In many industrial applications, the two instruments complement each other. The pressure gauge supports field inspection, while the pressure transmitter supports remote monitoring, trend recording, and process automation.
The right choice depends on the measuring range, process medium, temperature, pressure fluctuations, connection type, material compatibility, and monitoring requirements.
