YXC Series
Jiechuang

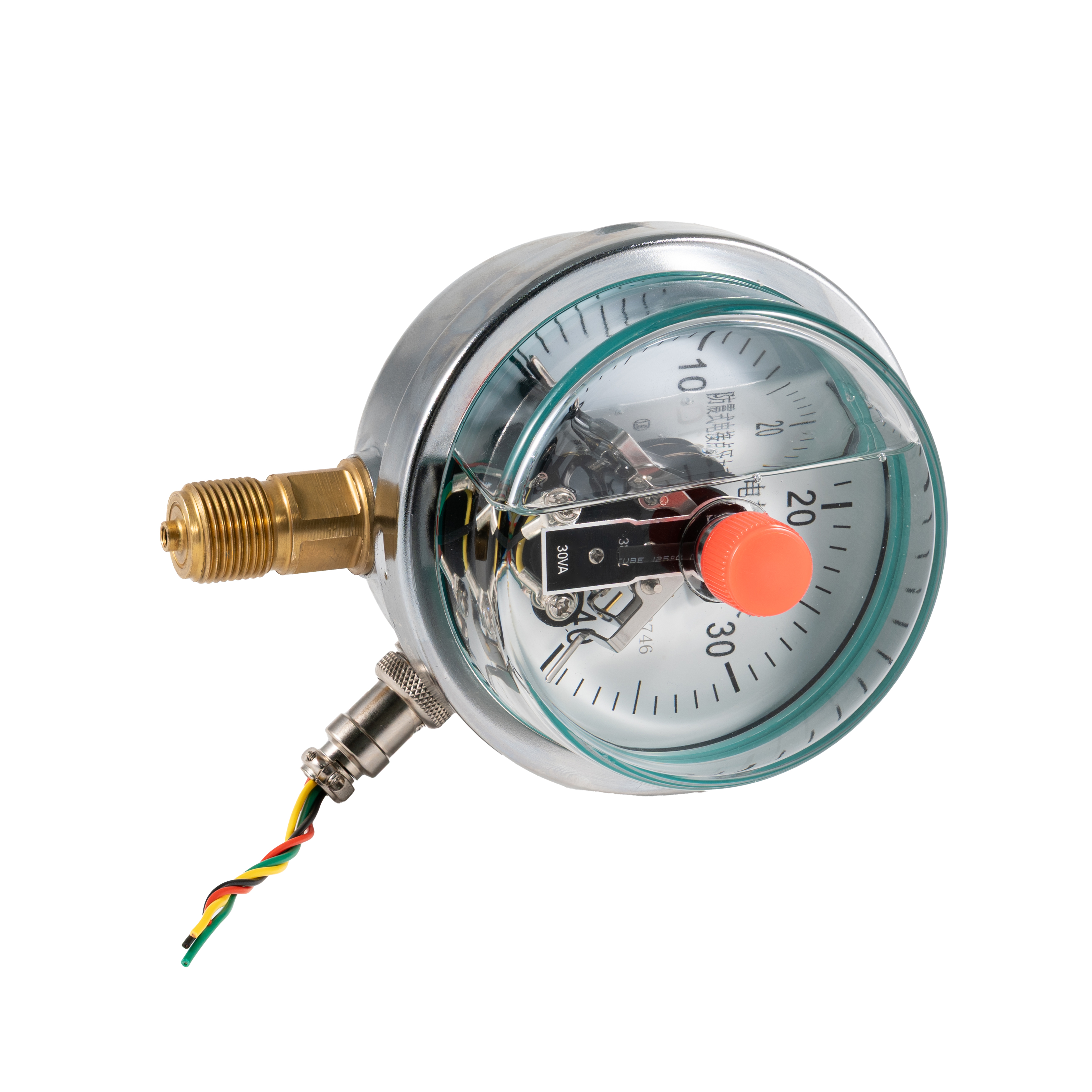

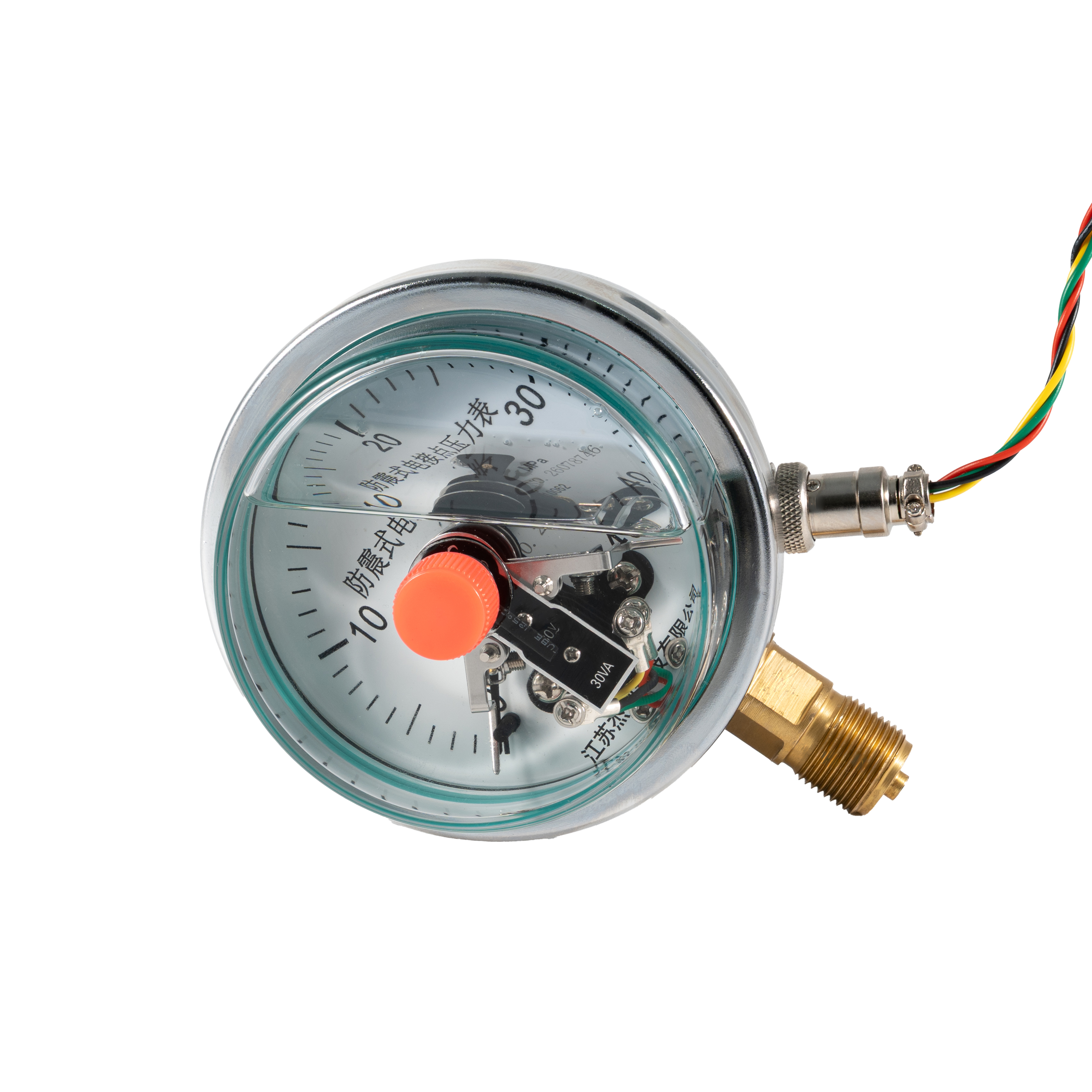

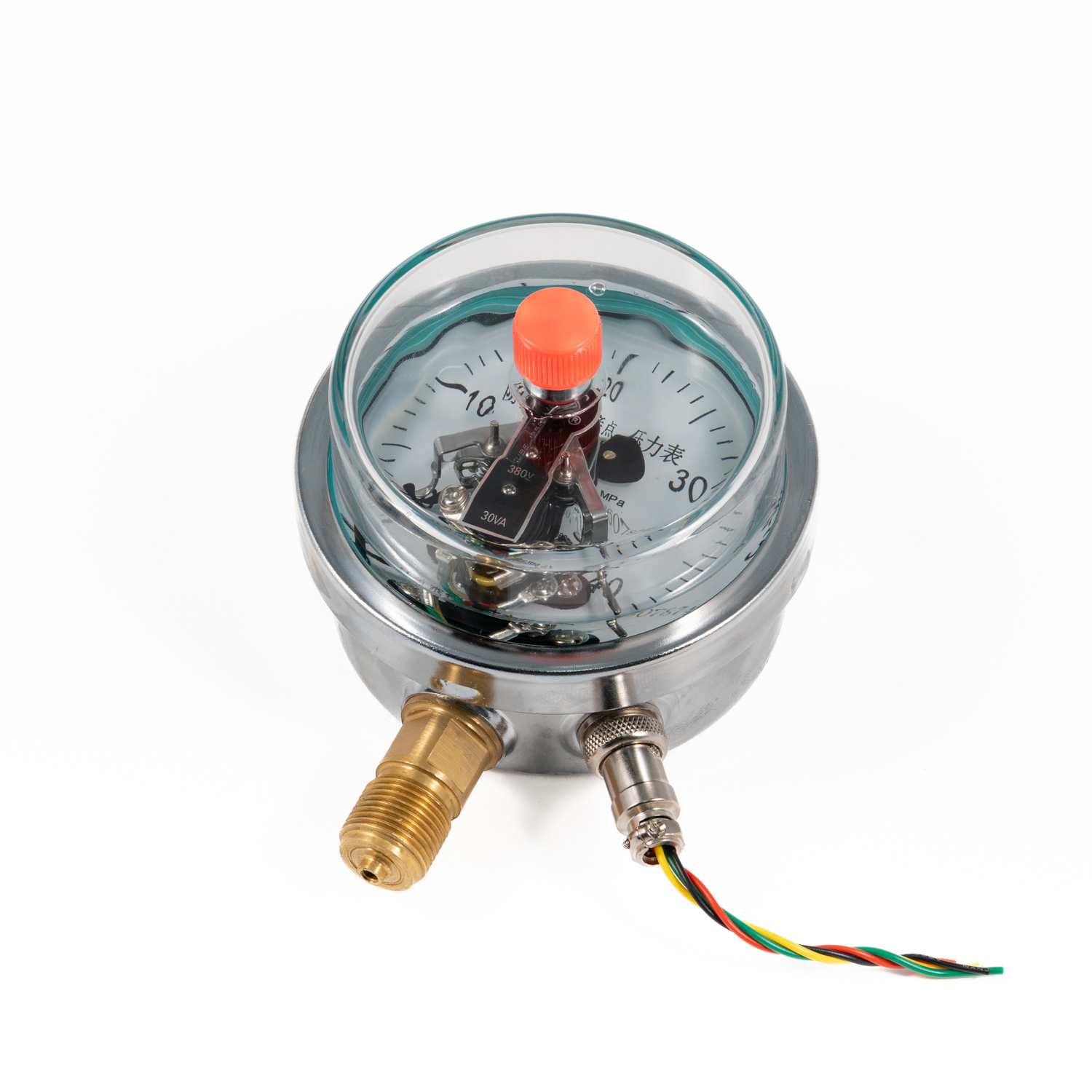

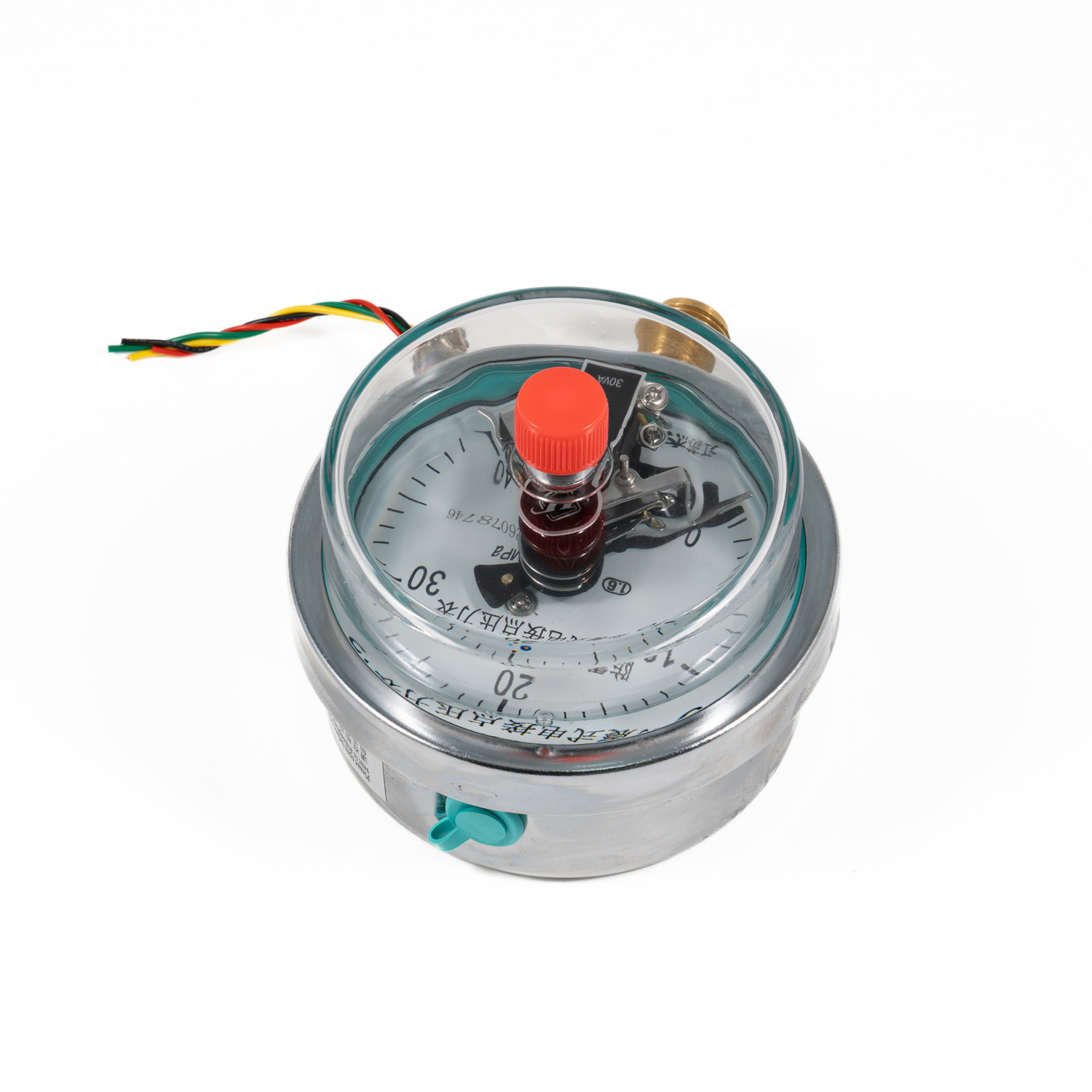

The YXC Series Glycerin Filled Shock Resistant Electric Contact Pressure Gauge combines local pressure indication with electrical alarm and control functions.
It is designed for industrial systems where pressure monitoring is required together with upper-limit, lower-limit, or dual-limit switching. When the measured pressure reaches a preset contact point, the electrical contact mechanism can send a switching signal to a compatible external control or alarm circuit.
The liquid-filled case uses glycerin or silicone oil to help damp pointer movement under vibration and pressure pulsation. The stainless steel case provides a durable enclosure, while the brass process connection is suitable for compatible general industrial media.
With 100 mm and 150 mm dial options, the YXC Series is suitable for pressure monitoring and switching applications in pumps, compressors, hydraulic equipment, and industrial machinery.
The YXC Series can be used in compatible industrial pressure monitoring and switching systems, including:
Hydraulic equipment
Water pumps and pumping stations
Air compressors
Boiler systems
Petrochemical equipment
Power plant equipment
Industrial machinery
Automated pressure alarm and control systems
Combined Pressure Indication and Switching: Provides local pressure readings and electrical contact signals in one instrument.
Liquid-Filled Design: Glycerin or silicone oil filling helps reduce pointer fluctuation.
Vibration-Resistant Performance: Designed for installations exposed to mechanical vibration and pressure pulsation.
Adjustable Contact Settings: Supports upper-limit, lower-limit, and upper-and-lower-limit contact arrangements.
Magnetic-Assisted Contacts: Helps provide reliable electrical switching.
Stainless Steel Case: Available with 304 or 316 stainless steel case material.
Multiple Dial Sizes: 100 mm and 150 mm options are available.

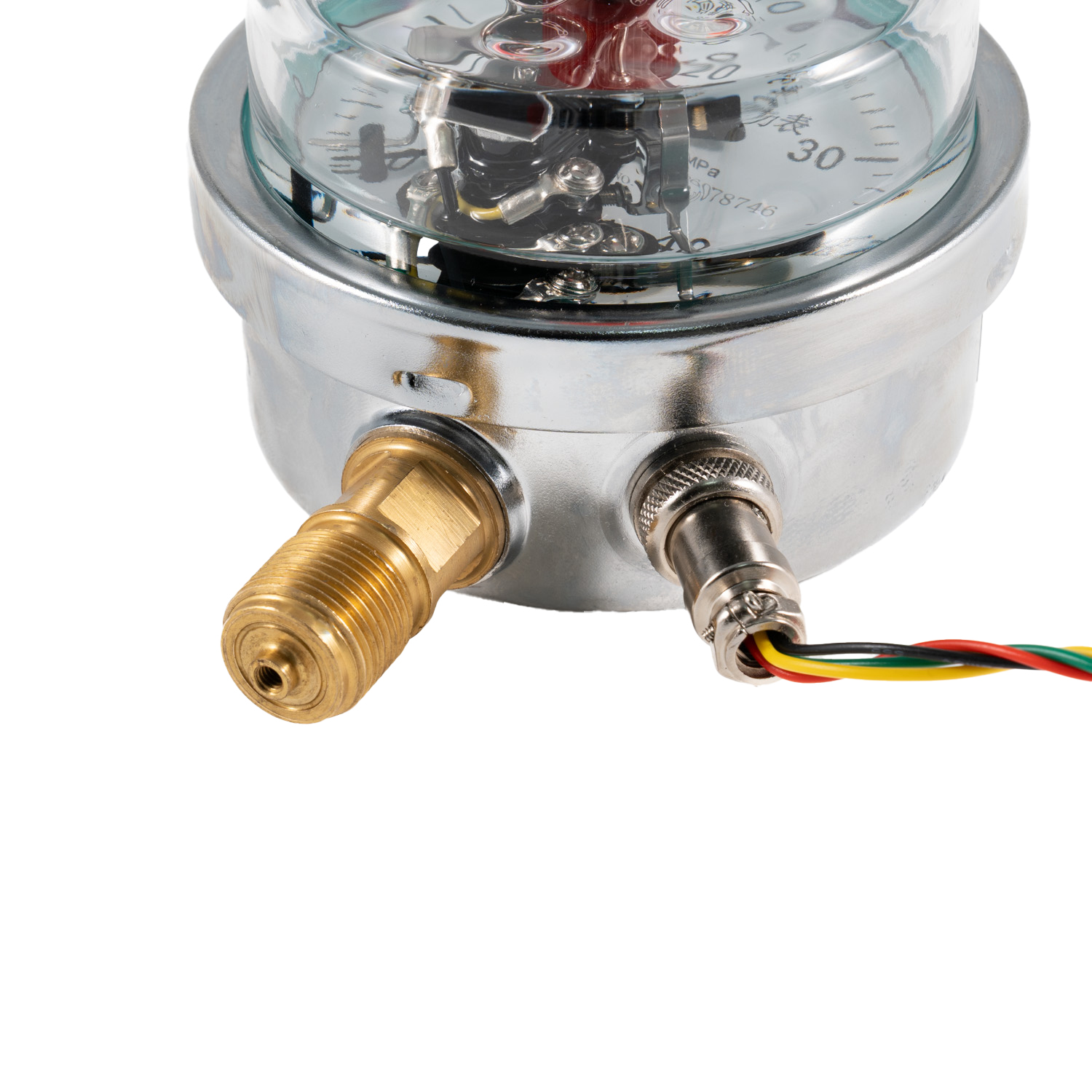

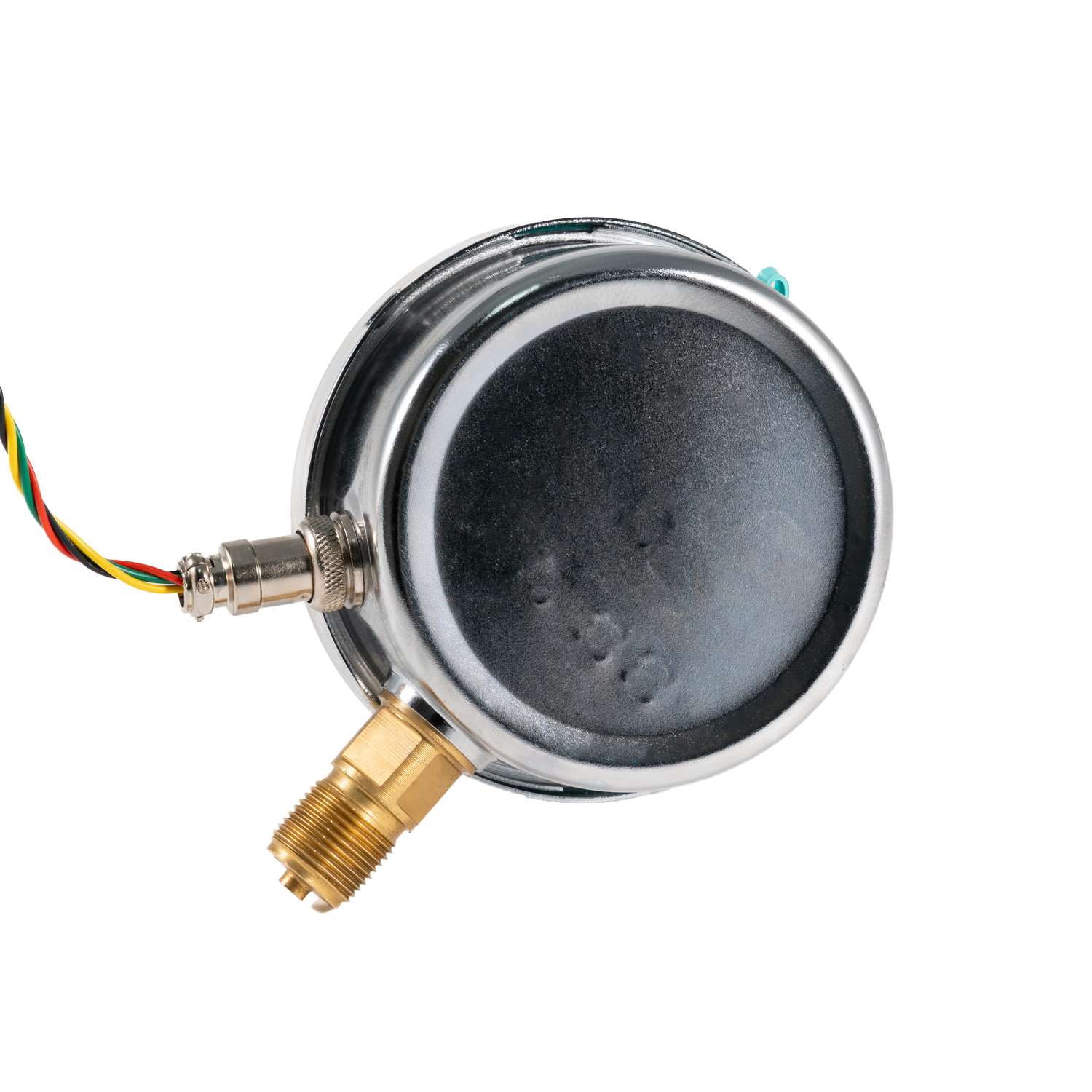

Flexible Installation: Bottom and back connection configurations are available.
Item | Specification |
|---|---|
Product Name | Liquid-Filled Shock Resistant Electric Contact Pressure Gauge |
Model | YXC Series |
Pressure Range | 0–40 MPa |
Accuracy Class | 1.6 |
Dial Size | 100 mm / 150 mm |
Case Material | 304 / 316 Stainless Steel |
Process Connection Material | Brass |
Filling Liquid | Glycerin / Silicone Oil / None |
Electrical Contact Type | Adjustable Electric Contact |
Contact Arrangement | Upper Limit / Lower Limit / Upper & Lower Limit |
Working Voltage | AC380V |
Contact Power | 30VA |
Installation Type | Bottom Connection / Back Connection |
Thread Size | G1/2, 1/2" NPT, M20×1.5 (Customized) |
Protection Grade | IP64 / IP65 (Customized) |
Operating Temperature | -20°C to +60°C |
Note: Specifications can be customized according to customer requirements.
A: An ordinary pressure gauge provides local pressure indication. An electric contact pressure gauge also provides switching signals when the pressure reaches preset contact points.
A: Upper-limit, lower-limit, and upper-and-lower-limit contact arrangements are listed for this series.
A: The filling liquid helps damp pointer movement and improve reading stability in vibrating environments.
A: Glycerin and silicone oil are available.
A: The current product specification lists AC380V and 30VA contact power.
A: Yes. Pressure range and connection requirements can be discussed according to the application and selected model.
Pressure range and unit
Process medium
Dial size
Contact arrangement: upper limit / lower limit / upper and lower limit
Required alarm or control set points
Control circuit voltage and current
Connection thread and connection position
Quantity
Case and wetted-part material
Glycerin or silicone oil filling
Ambient and process temperature
Protection class
Contact type and wiring requirements
Customized dial scale or other requirements
Contact JIECHUANG with your pressure measurement and electrical control requirements for product selection and quotation.
