Product Introduction

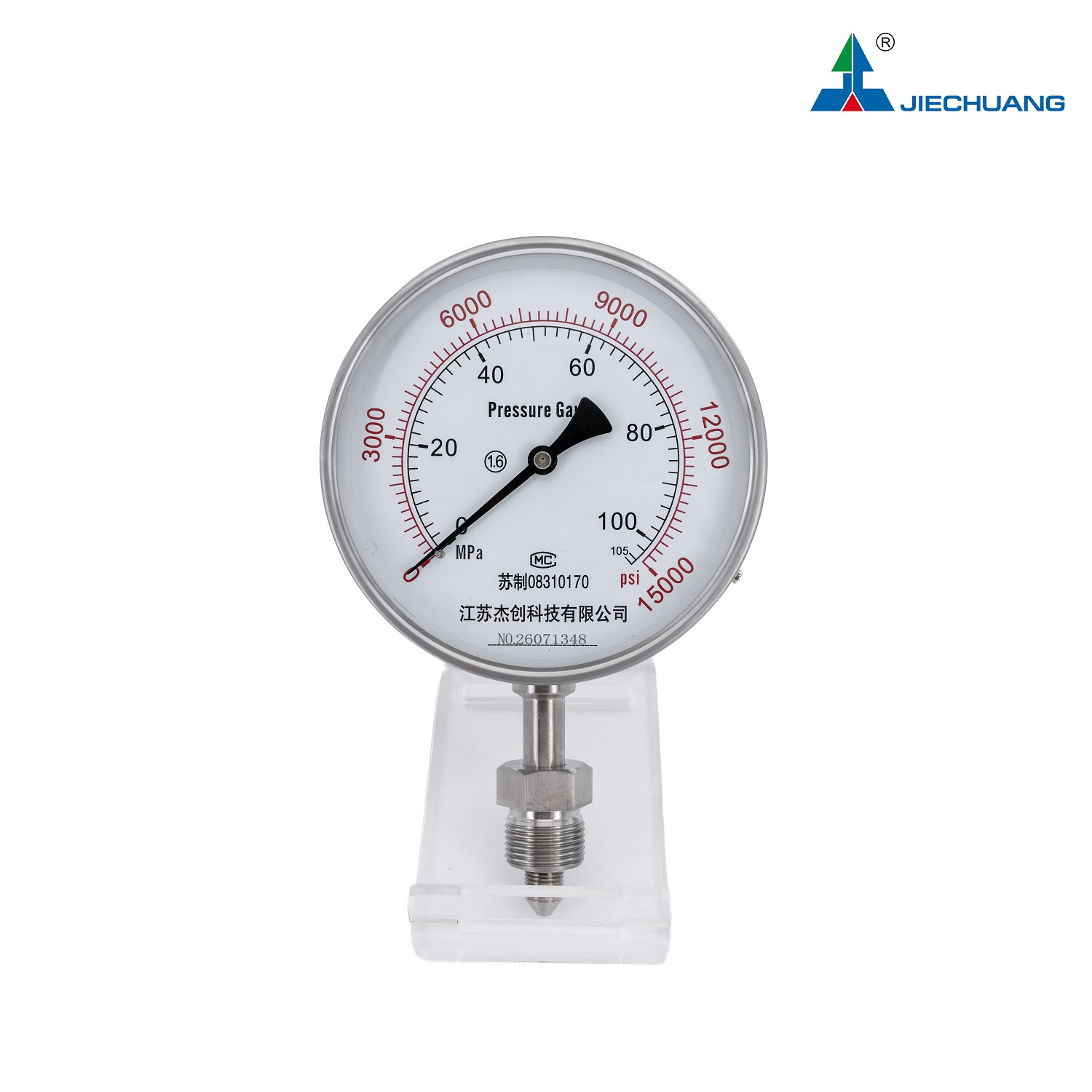

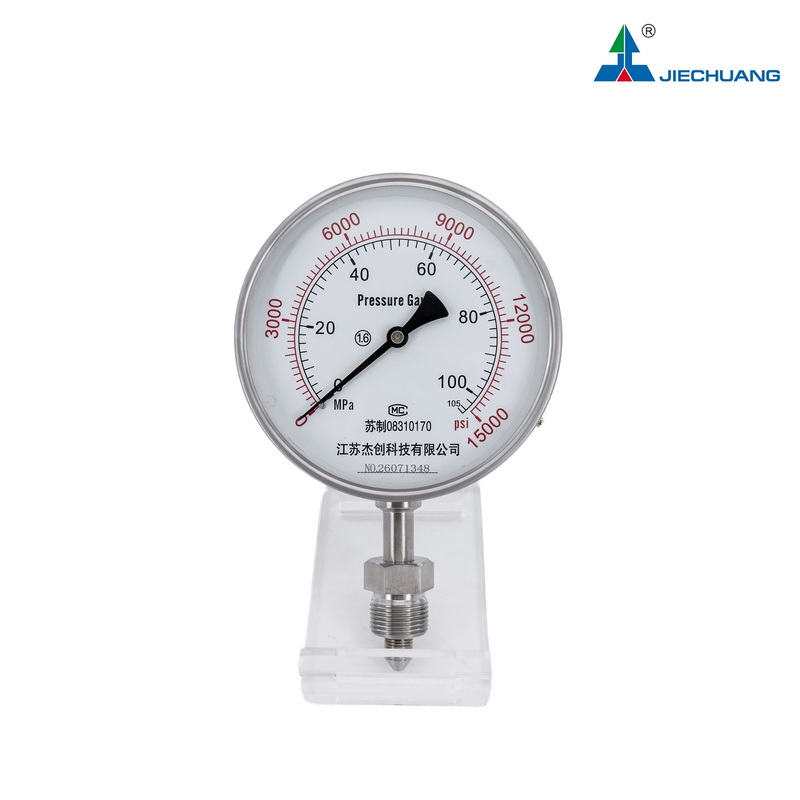

The Stainless Steel Dual Scale Pressure Gauge is a mechanical pressure gauge for high-pressure measurement.

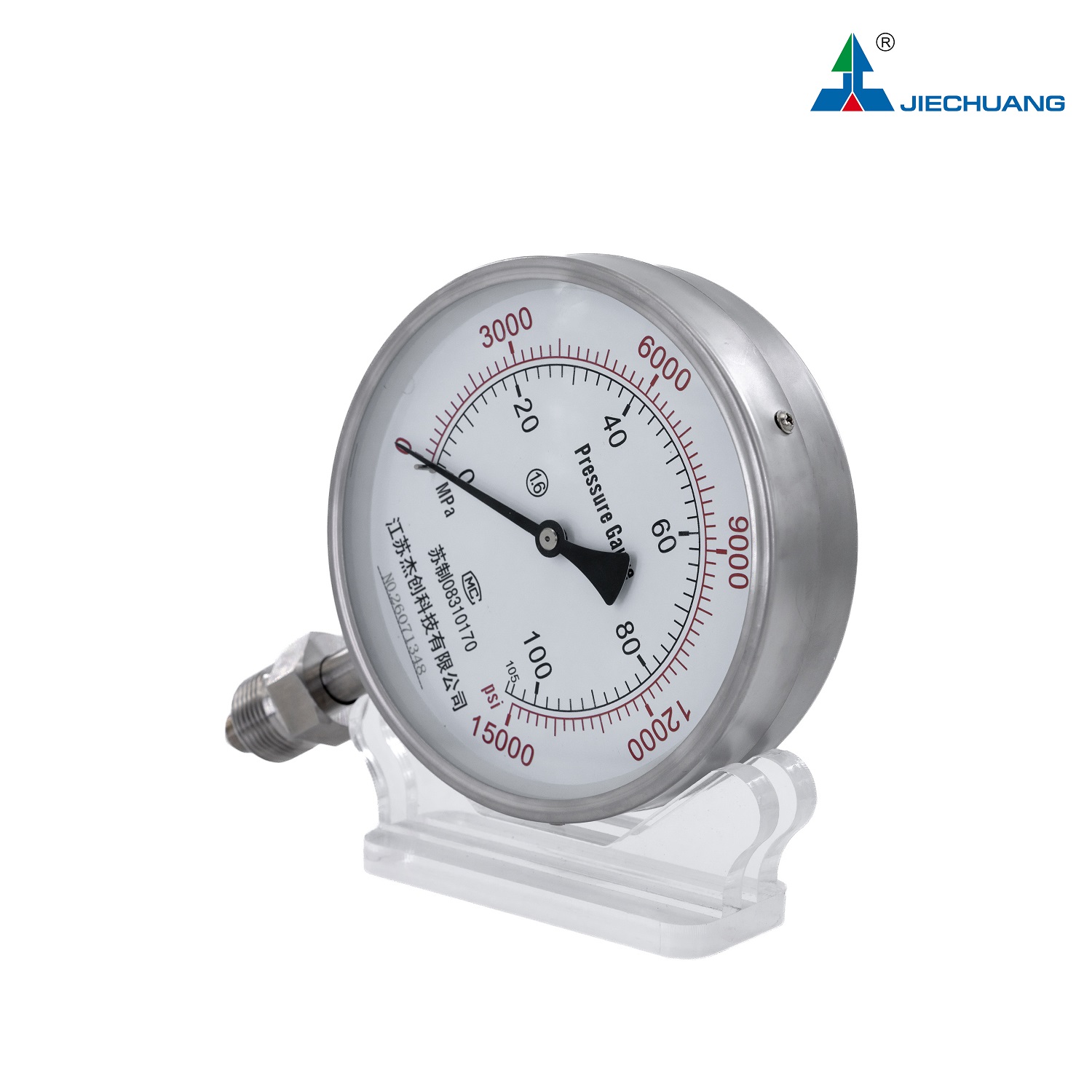

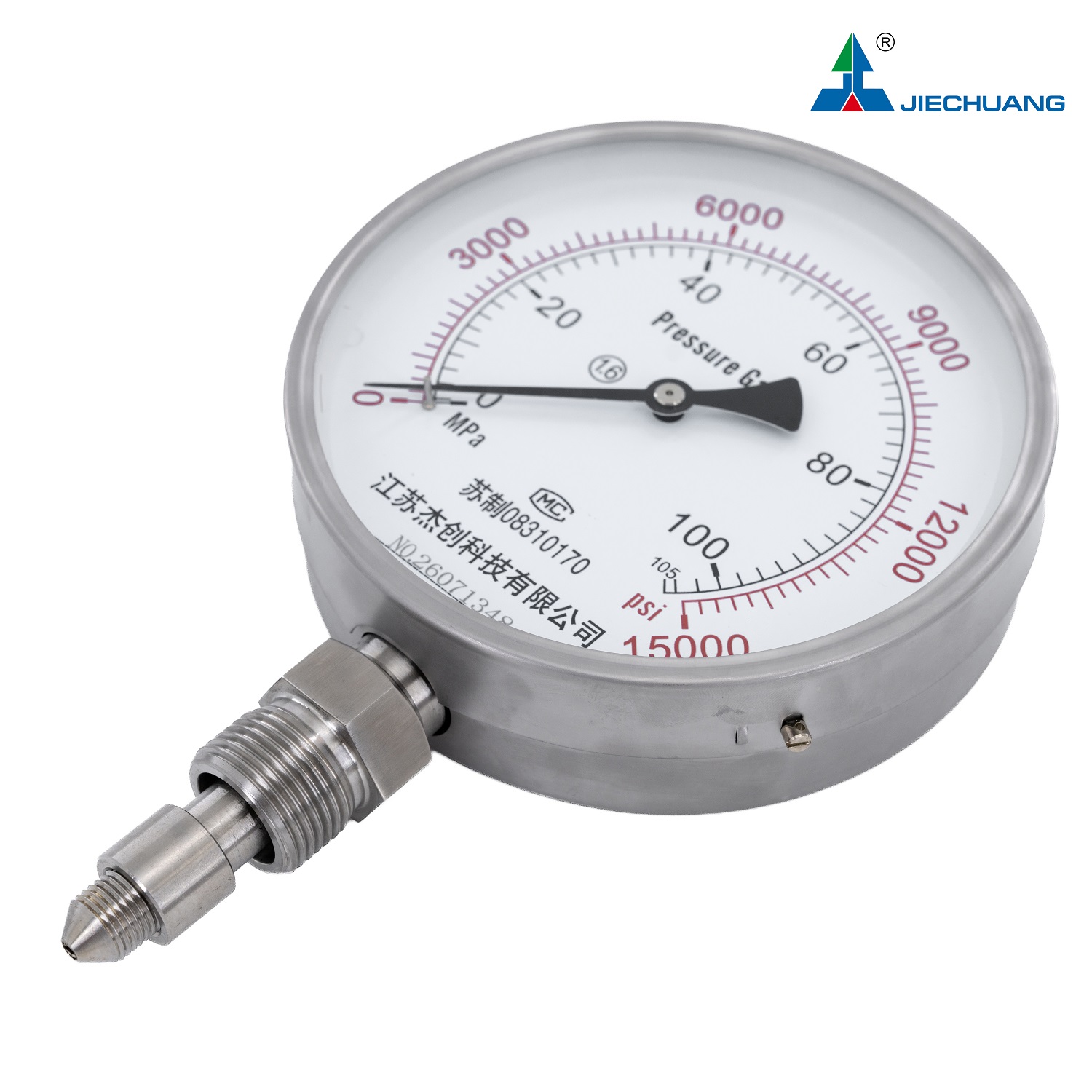

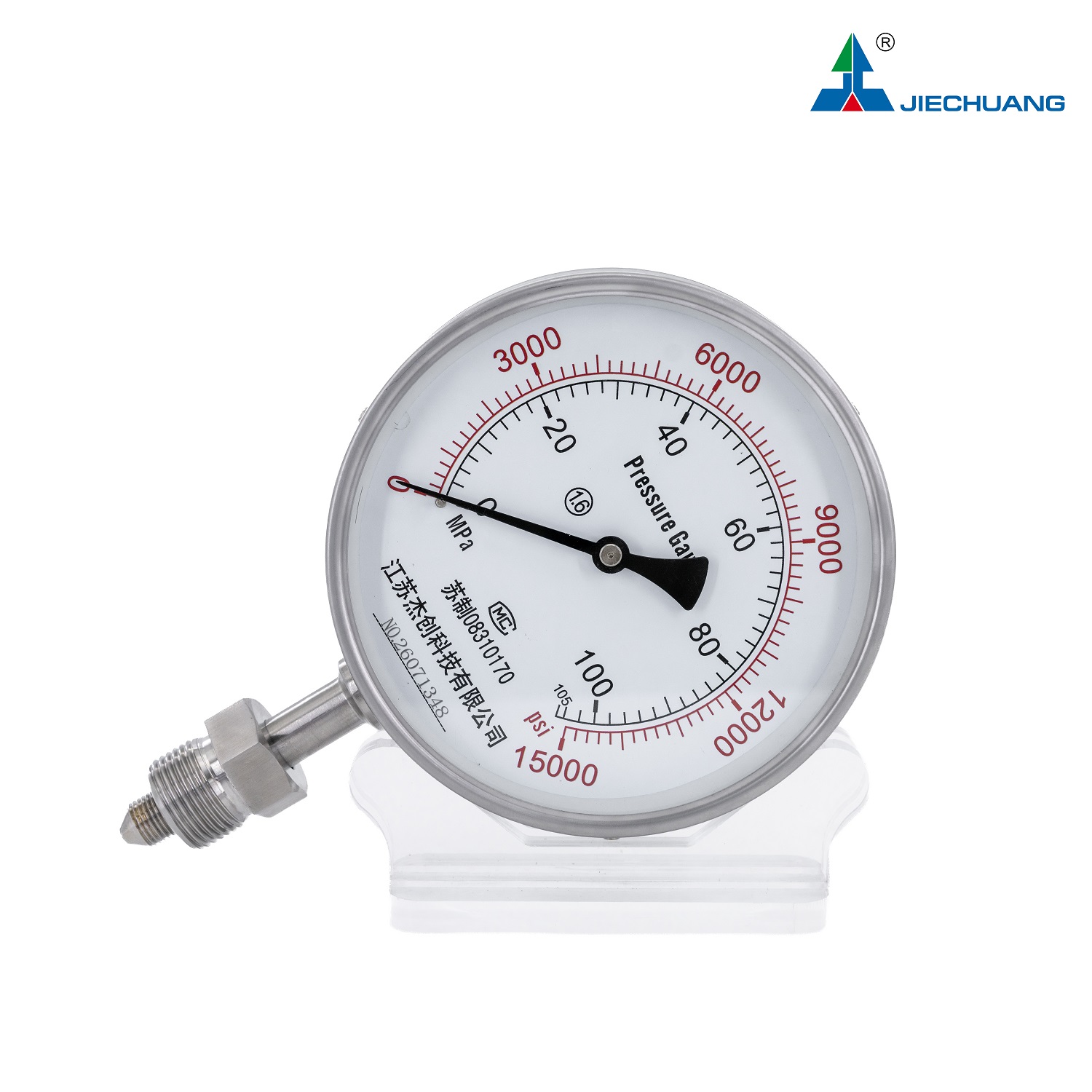

It features two pressure scales, MPa and PSI, on one dial for easy reading.

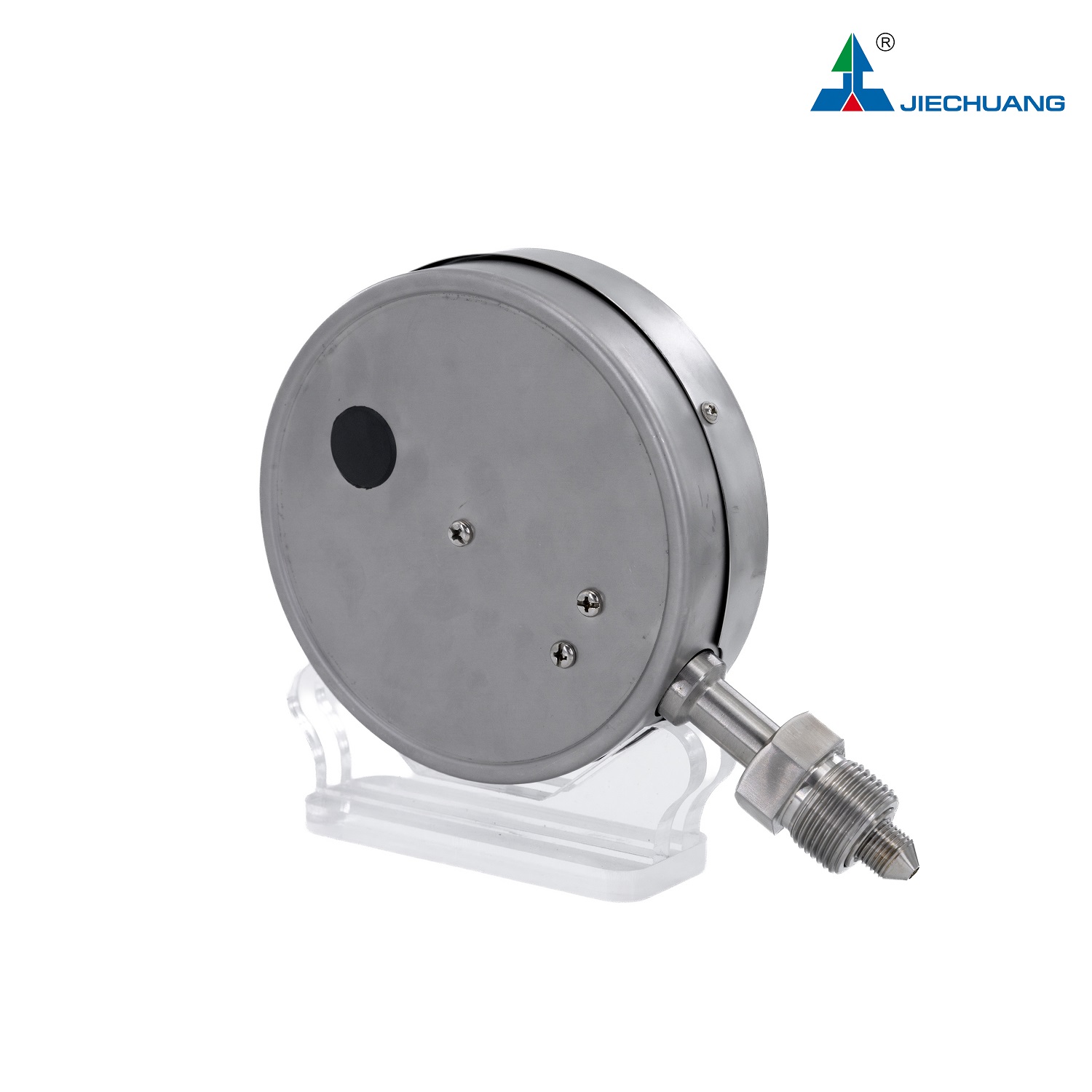

The stainless steel construction provides good corrosion resistance and durability for industrial use.

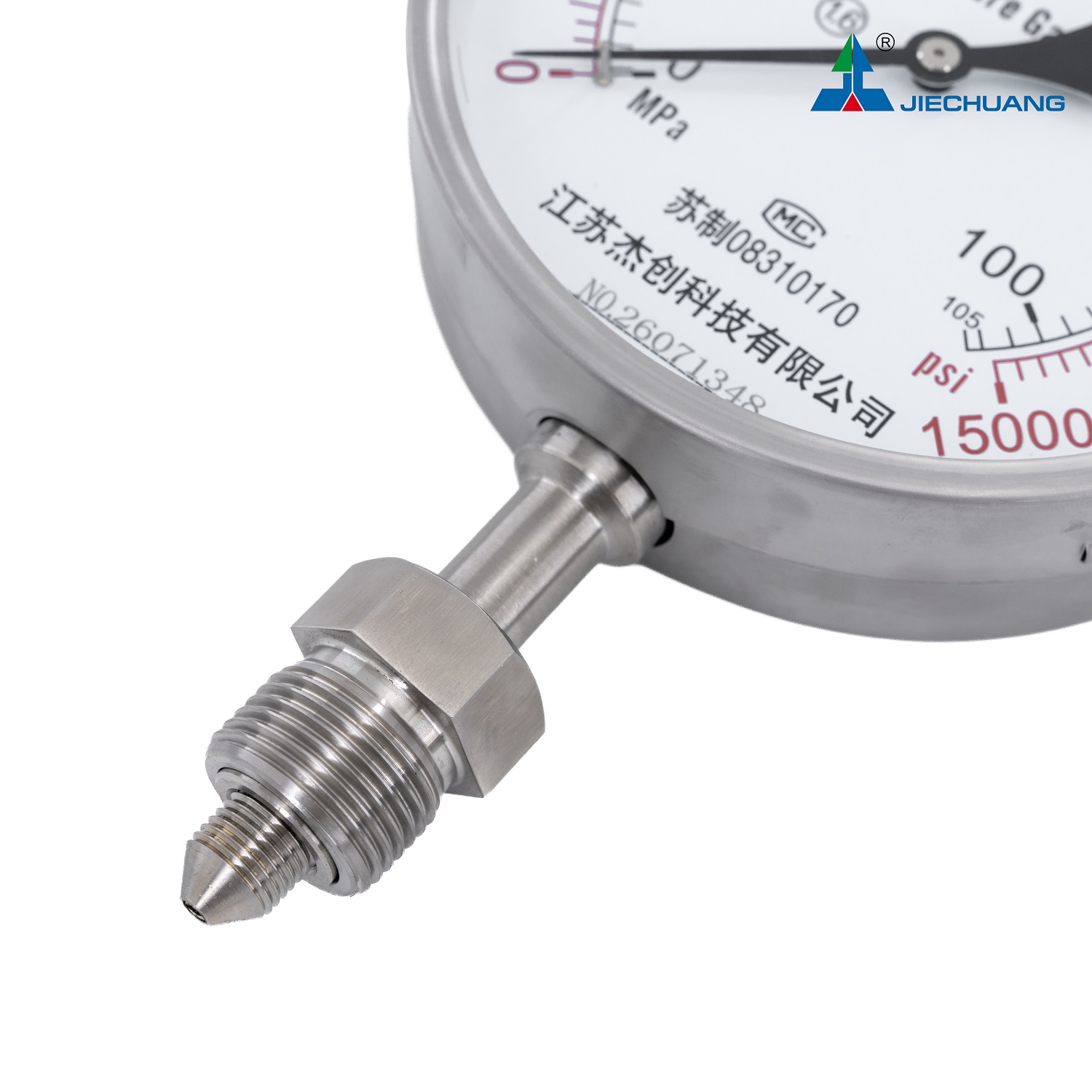

With a bottom threaded connection, the gauge is suitable for direct installation on pressure lines, hydraulic systems, pumps and other pressure equipment.
Pressure ranges, dial sizes, thread types and materials can be customized according to customer requirements.
Applications
Hydraulic systems
Hydraulic pumps and presses
Oil and gas equipment
Chemical processing
Industrial machinery
High-pressure pipelines
Water and liquid pressure systems
Pressure testing equipment
Compressors and pumps
General industrial equipment
15,000 psi pressure gauges are commonly offered for hydraulic and industrial applications, while stainless-steel versions are also marketed for chemical processing, oil-field/offshore and other demanding environments.
Features
Dual scale: MPa and PSI
High pressure range: up to 105 MPa / 15,000 PSI
Stainless steel construction
Clear analog dial
Bottom threaded connection
Good corrosion resistance
Strong mechanical structure
Suitable for high-pressure service
100 mm and 150 mm dial sizes available
Thread and pressure range can be customized
Technical Specifications
Item | Specification |
Product Type | Dual Scale Pressure Gauge |
Model | YB Series |
Pressure Range | 0-105 MPa / 0-15,000 PSI |
Scale | MPa + PSI Dual Scale |
Accuracy | ±1.6% F.S. |
Dial Size | 100 mm / 150 mm |
Connection | Bottom Connection |
Connection Type | Threaded |
Thread Standard | NPT / BSP / Other Optional |
Case Material | Stainless Steel |
Wetted Parts | Stainless Steel / Optional |
Display | Analog Pointer |
Mounting | Bottom Mount |
Pressure Type | Gauge Pressure |
Filling | Dry / Liquid Filled Optional |
Customization | Available |
Note: Specifications can be customized according to customer requirements.
