| Quantitas: | |
|---|---|
JC-G Series
Jiangsu Jiechuang
9026201090

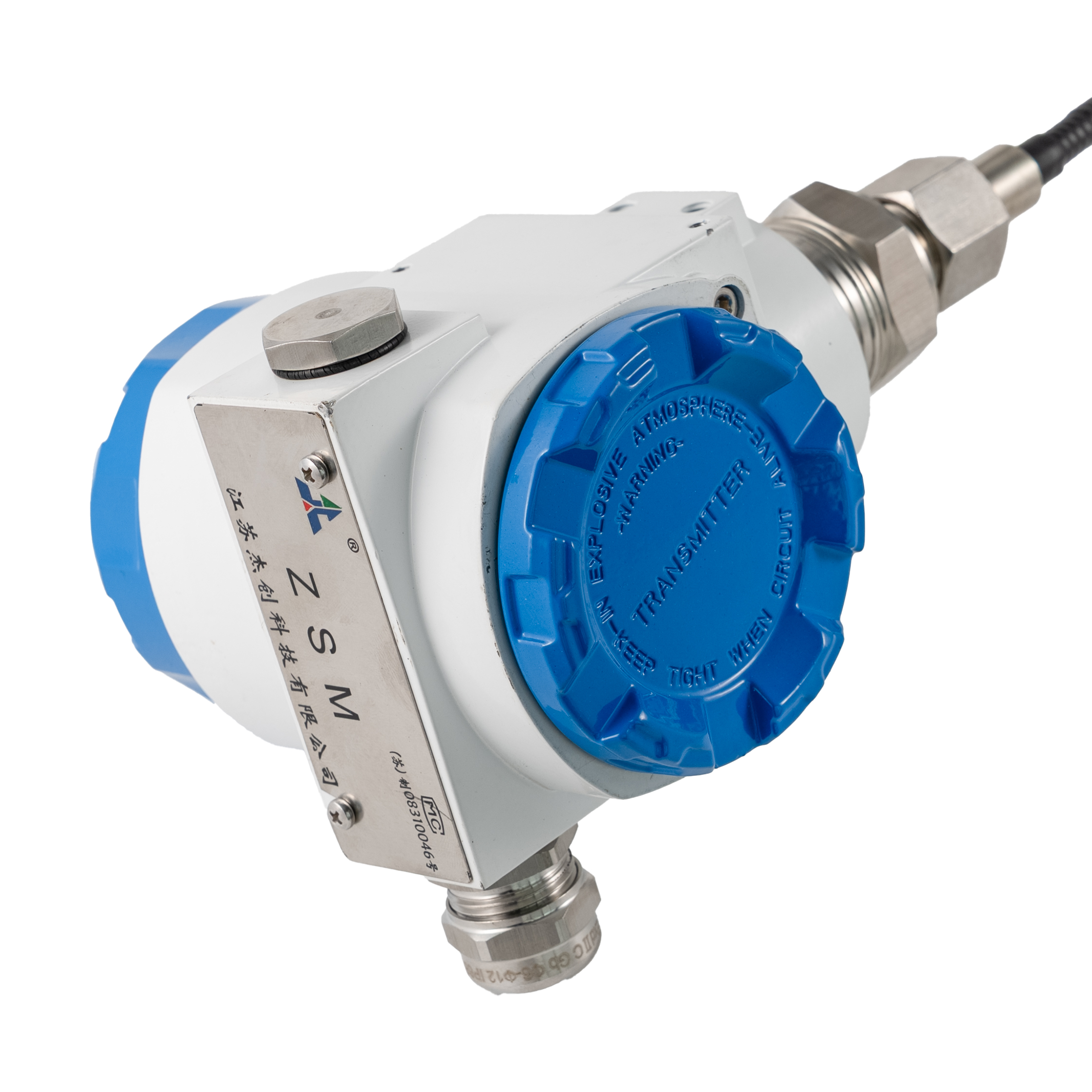

Unius LABIUM Capillaris Longinquus Diaphragma Sigilli Impetus Transmitter
Product Overview:

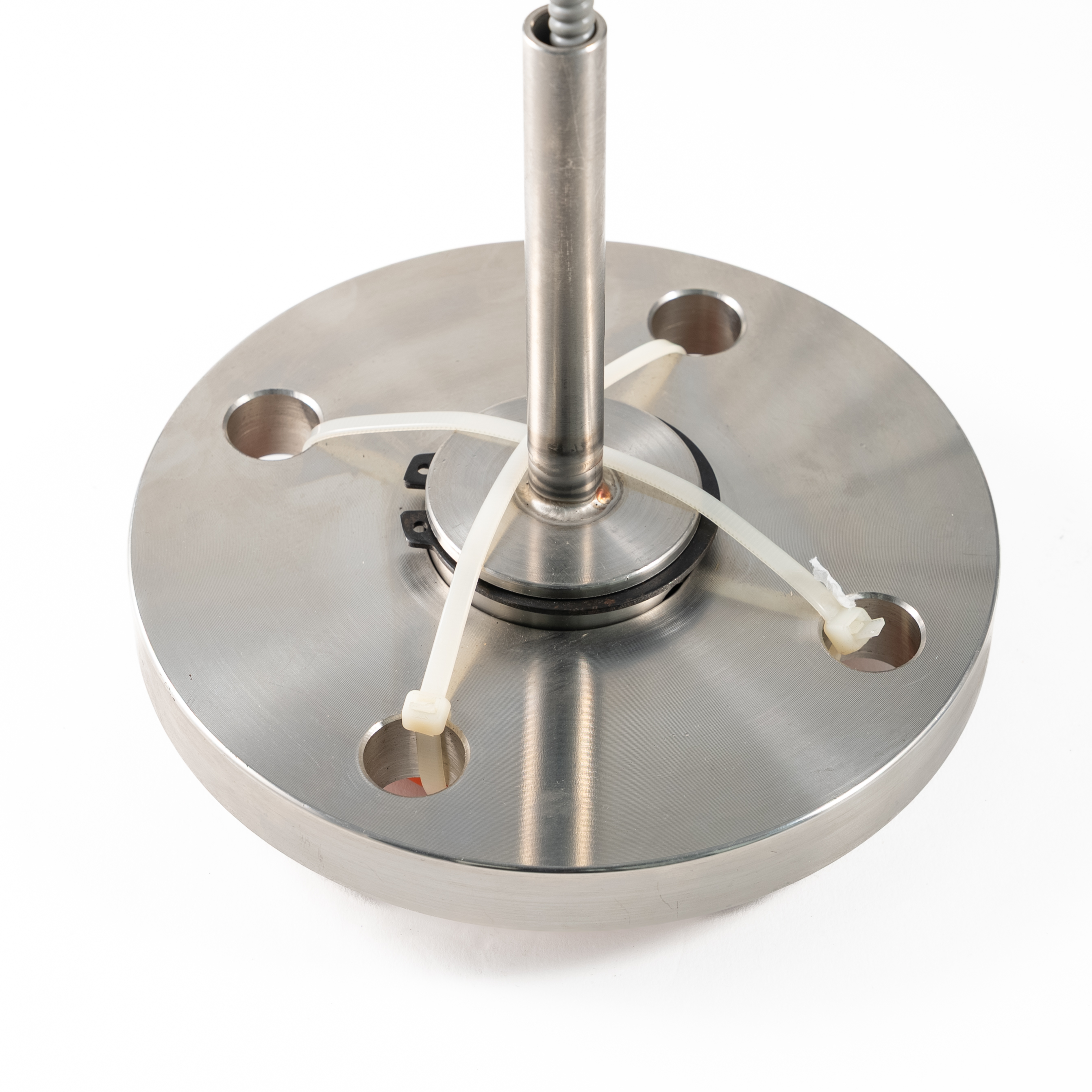

Hoc diaphragma remotum sigillum pressionis transmissionis (etiam nota ut una pressionis capillaris transfusor)
mensura pressionis destinatur in condiciones industriales provocando.
Utitur tubo capillari peculiari liquore repleto, ut pressionem e diaphragmate remota sigillum transmittat
(in processu flange ascendens) ad pressionem sensorem, transfusorem ab alto temperaturis segregans;
instrumentis mordax, humoribus viscosis, vel materiae solidificationi pronis.

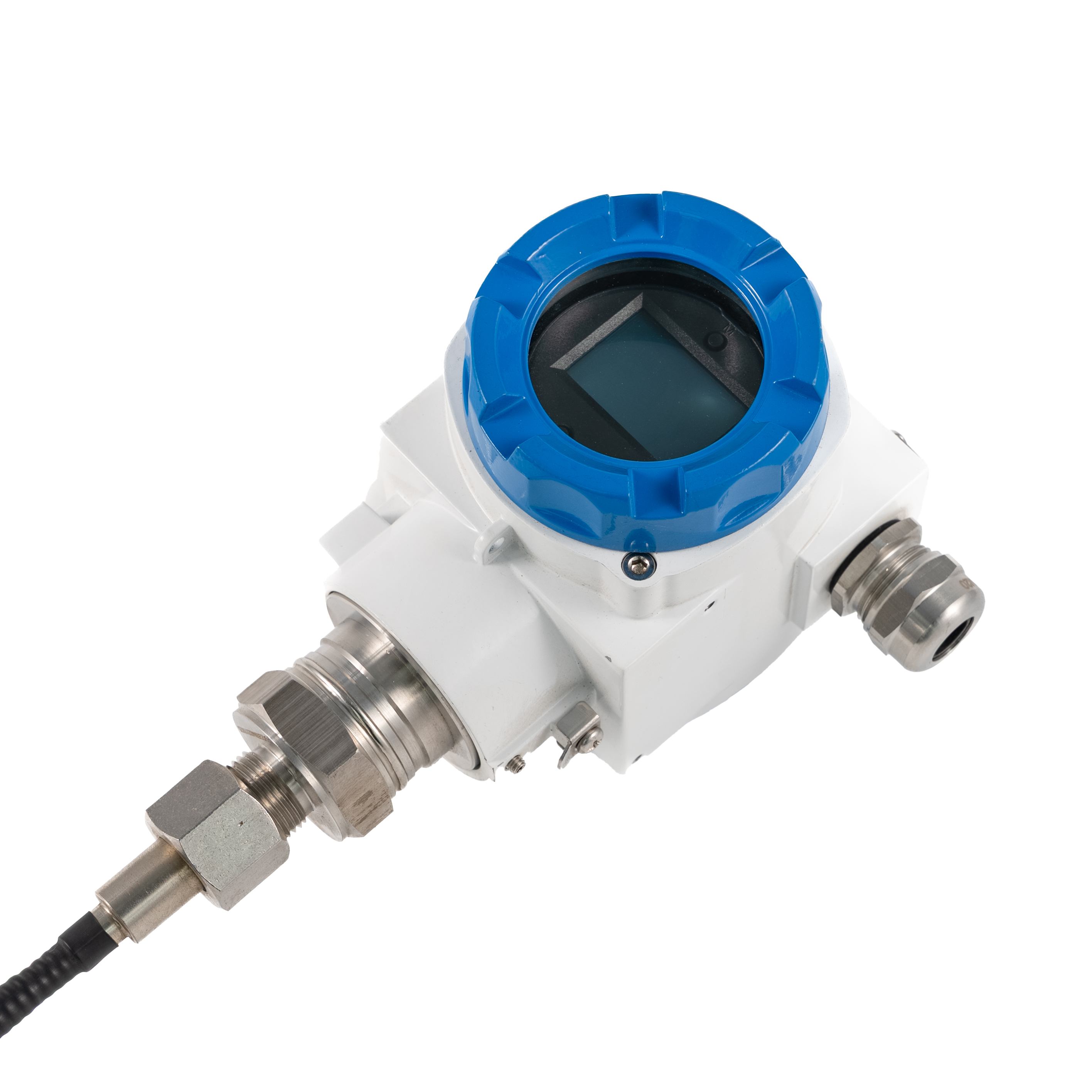

Unitas vexillum 4-20mA analog output praebet (cum libitum Hart/Modbus communicationis) et
features a digital display for on-site reading.
Cum explosione-probationis certificationis et structurae ferro intemeratae summus gradus, certum, diuturnum tempus efficit.
in rebus asperis ambitus.
Typicam Applications:
Summus temperatus et summus pressura processus pipelines
Viscosa, mordax, vel solidificans media (olea, slurries, resina)
Vacuum systemata in quibus directus sensor contactus non desideratur
Processus petrochemical, chemicus, refinery
Pharmaceutical et cibus & potus productio
Virtus plantae et industria utilitates
Lacus gradu mensurae in repono vasis
Parametri:
Parameter |
Latin & Customizable Specifications |
Product Type |
Singula Flange Capillaris Remota Sigillum Pressure Transmitter |
Mensuratio dolor |
-100kPa ~ 0kPa / 0~100kPa usque ad 0~100MPa (mos) |
Sagaciter |
±0.075% / ±0.1% / ±0.25% FS |
Output signum |
4-20mA DC (2-filum); optional HART / Modbus / Profibus PA |
Potestas Supple |
12~ 36V DC (typice circa 24V DC) |
Processus Connection |
DN25 / DN50 / DN80 / DN100 flange (vexillum; consuetudo flangorum praesto) |
Diaphragma Material |
316L Steel; Hastelloy C / Monel / Tantalum optional |
Materialium capillarium |
316L Steel, longitudo 1~10m (customizable) |
Liquor implens |
Silicone oleum / fluorinated oleum (pro summus temperatus vel mordax media) |
habitationi Material |
Mori-cast aluminium mixturae cum anti-corrosione coating |
Processus Temperature |
-40℃ ~ +400℃ (prout materia impletionis fluidi et diaphragmatis) |
Ambiens Temperature |
-40℃ ~ +85℃ |
CREPITUS-Probatur Rating |
Ex ia IIC T6 Ga / Ex d IIB T6 Gb (libitum) |
Praesidium Gradus |
IP65 / IP67 |
Nota: Omnes parametri nativus ut requiritur.
